Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the J 43484  (2) to the J 8092  (1).
  2. Install a NEW seal onto J 43484.
  3. Using J 43484  (2), and J 8092  (1), install the seal.
  4. Install the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT-FRONT  .
  5. Check the fluid level. Add fluid, if necessary.
  6. Install the transfer case shield, if equipped. Refer to Transfer Case Shield Replacement .

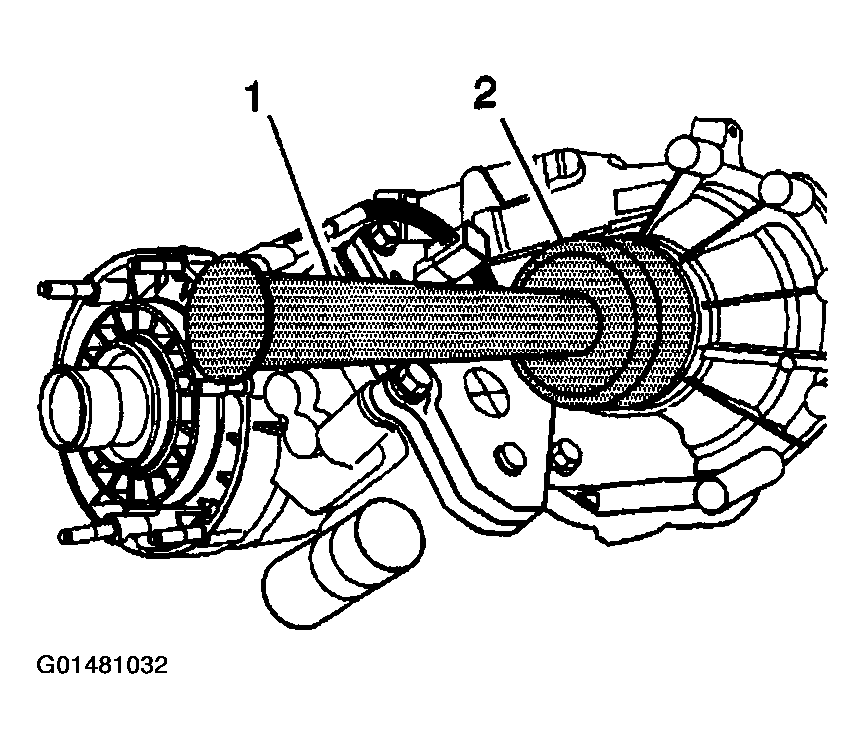

    Fig 1: J 43484 & J 8092
    G01481032Courtesy of GENERAL MOTORS CORP.
