Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transfer case. Refer to Transfer Case Assembly Replacement .
  2. Remove the transfer case adapter bolts.
  3. Remove the adapter.
  4. Remove the adapter seal.

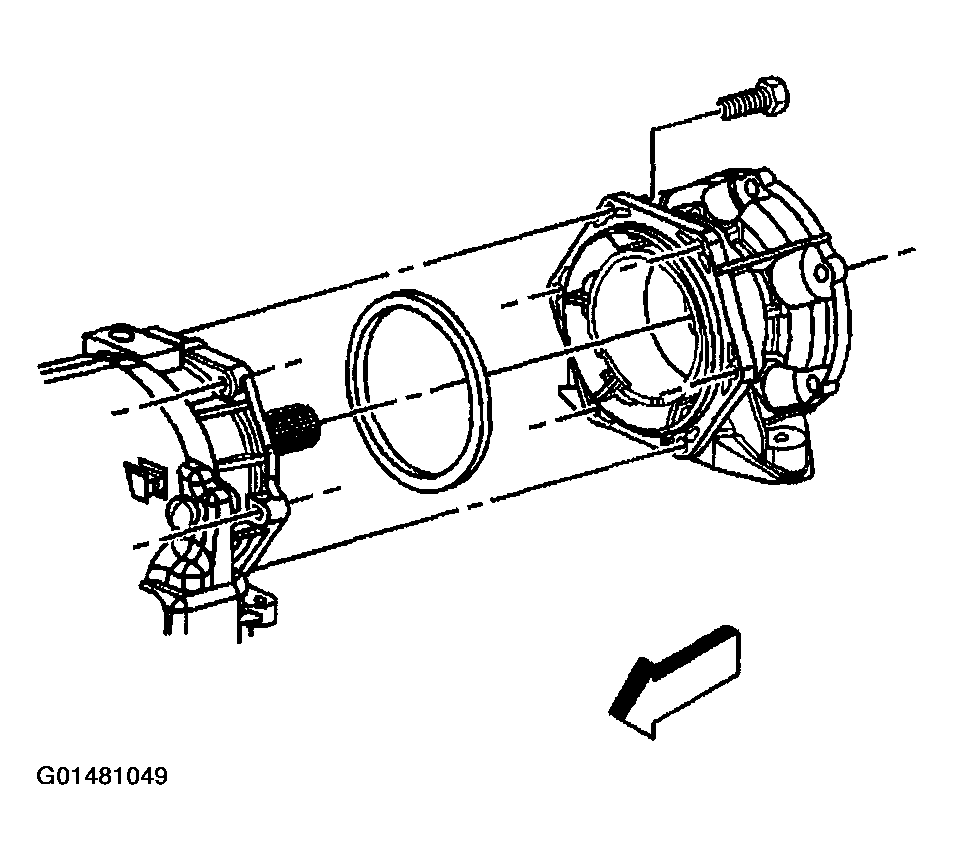

    Fig 1: Adapter, Seal & Bolts
    G01481049Courtesy of GENERAL MOTORS CORP.
