Special Tools and Equipment

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

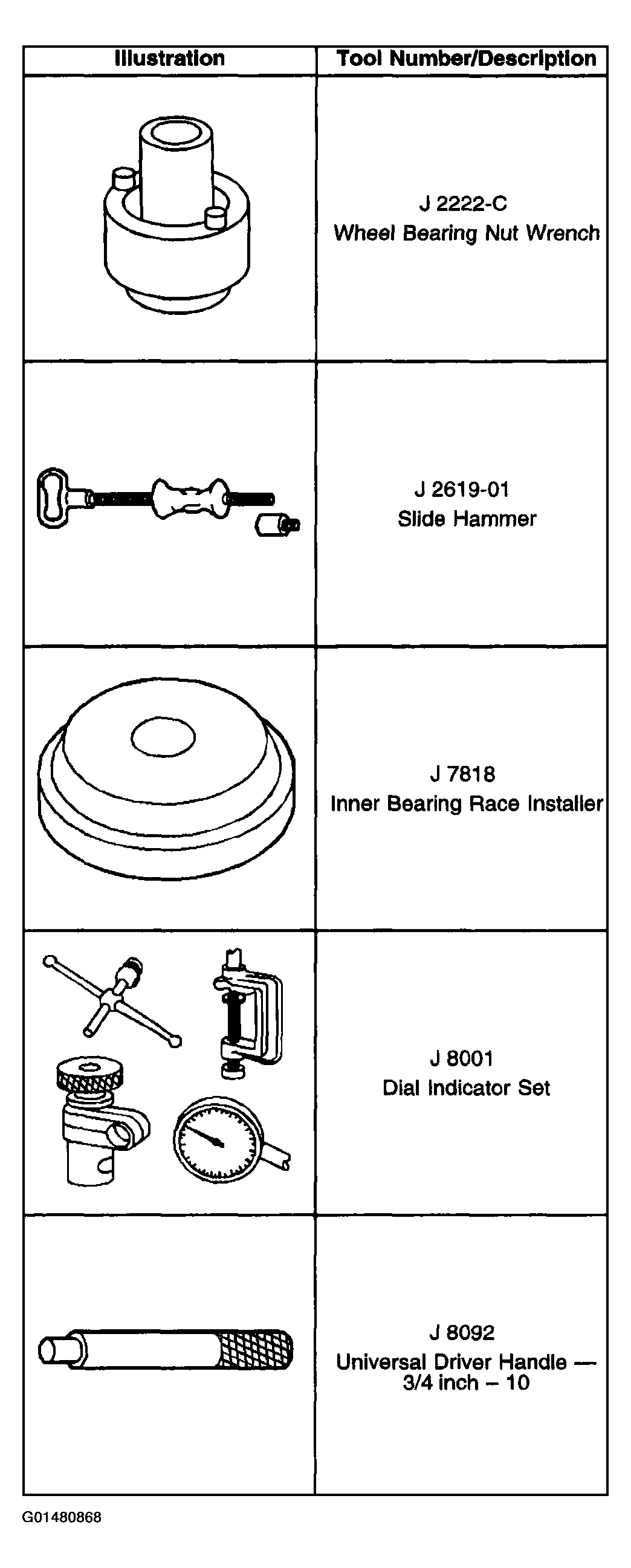

Fig 1: Special Tools & Equipment (1 Of 12)

G01480868

Courtesy of GENERAL MOTORS CORP.

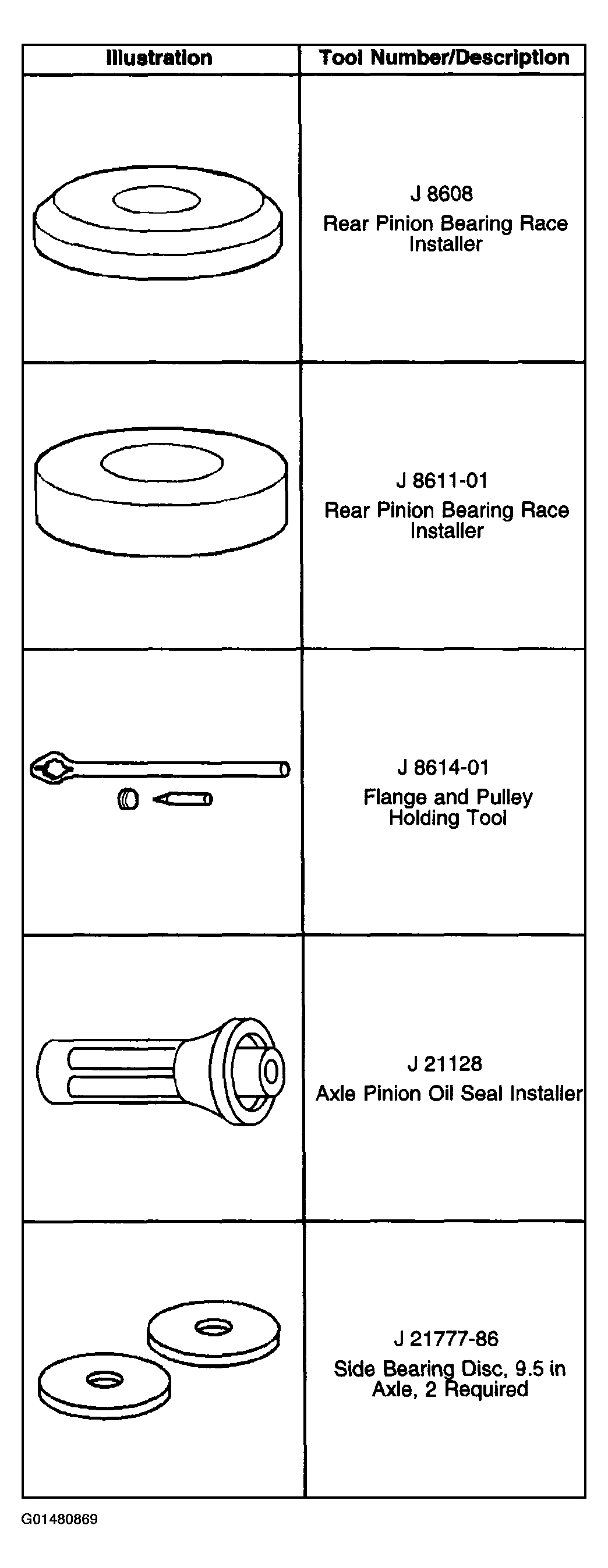

Fig 2: Special Tools & Equipment (2 Of 12)

G01480869

Courtesy of GENERAL MOTORS CORP.

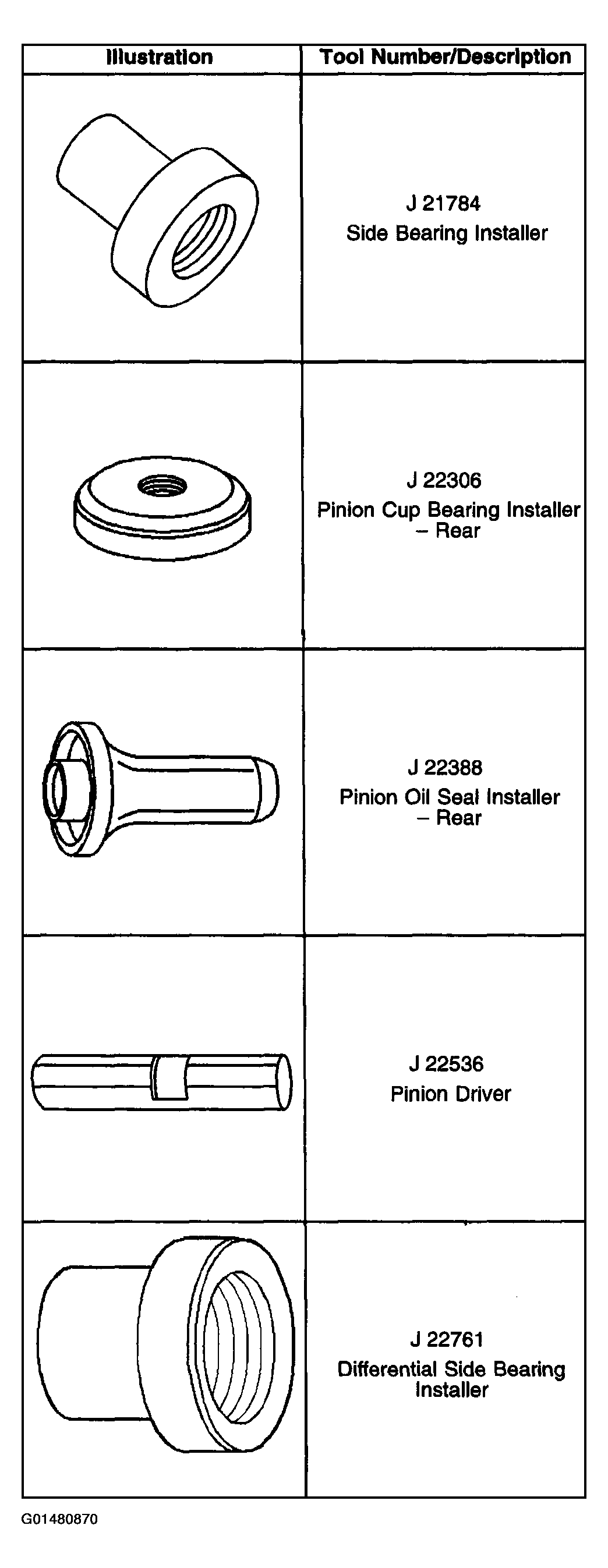

Fig 3: Special Tools & Equipment (3 Of 12)

G01480870

Courtesy of GENERAL MOTORS CORP.

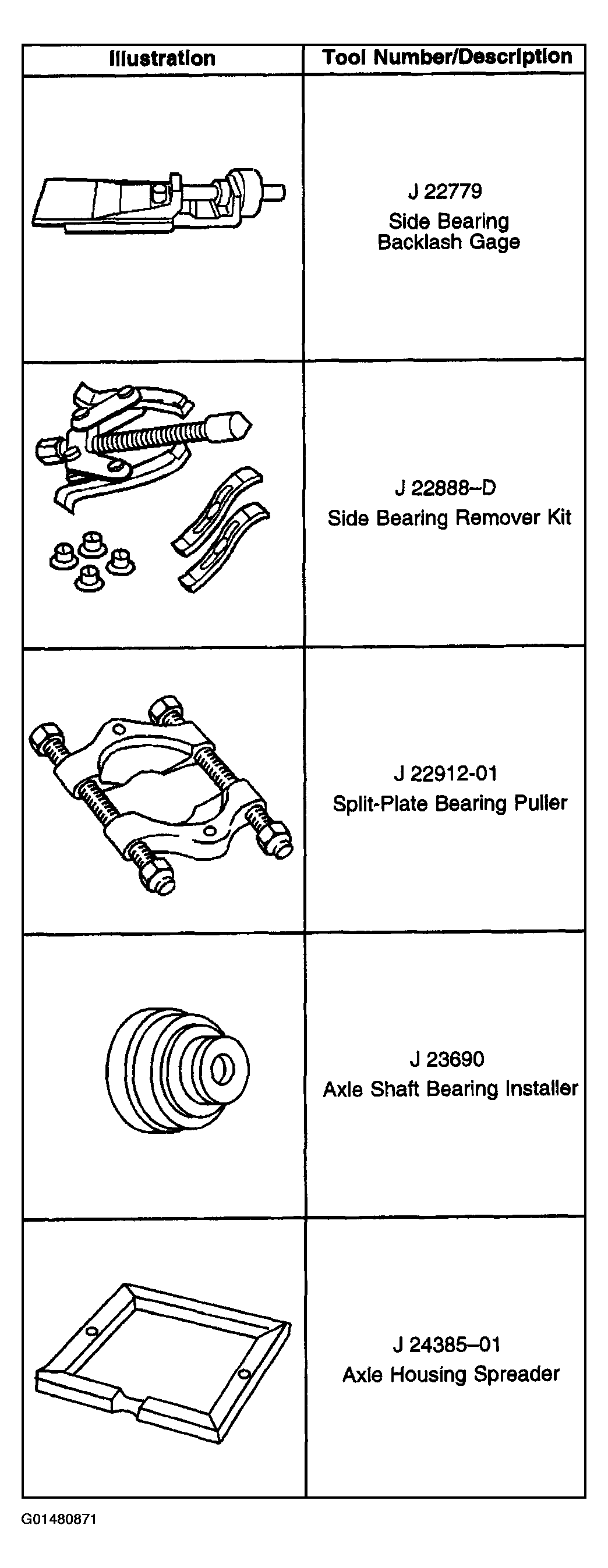

Fig 4: Special Tools & Equipment (4 Of 12)

G01480871

Courtesy of GENERAL MOTORS CORP.

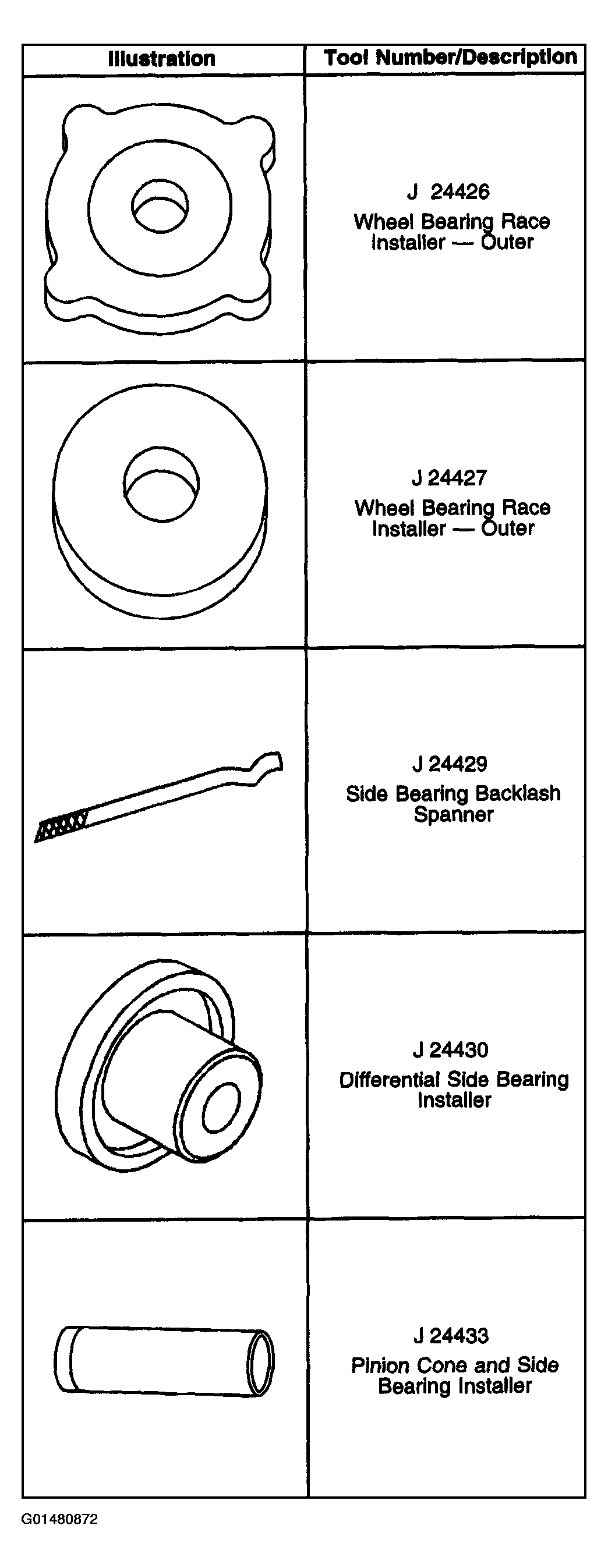

Fig 5: Special Tools & Equipment (5 Of 12)

G01480872

Courtesy of GENERAL MOTORS CORP.

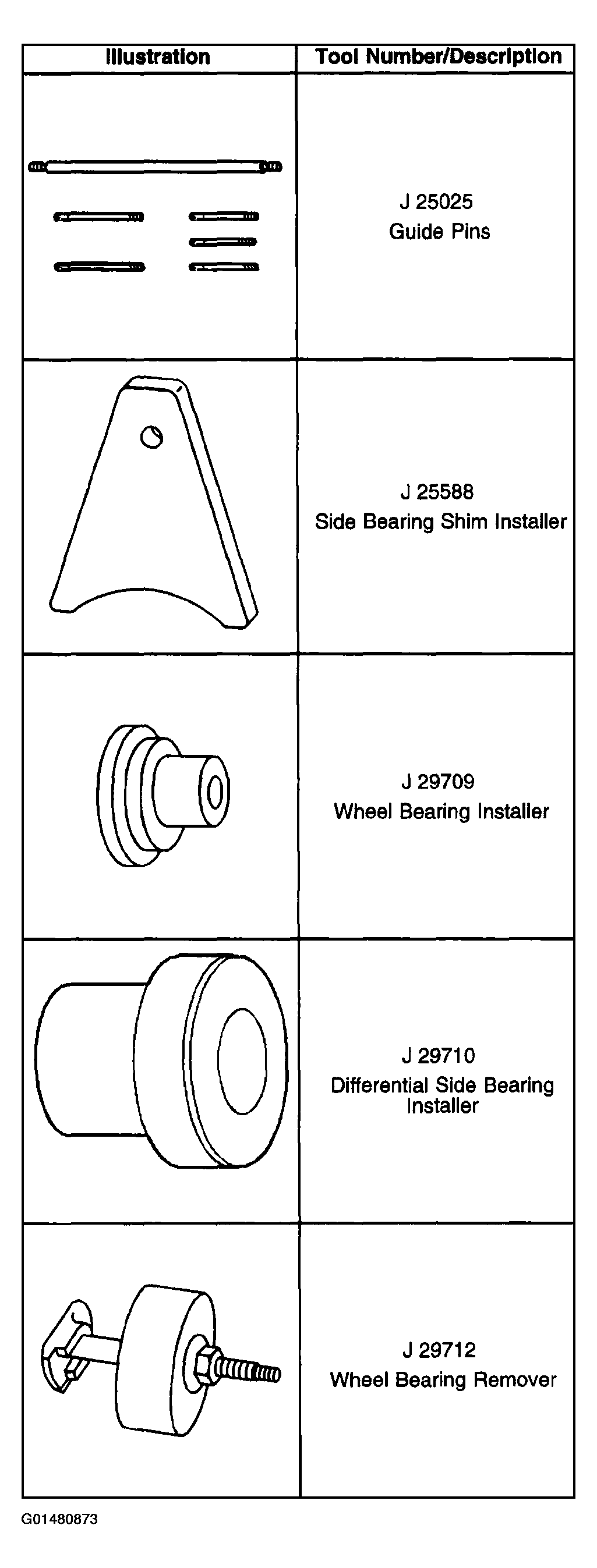

Fig 6: Special Tools & Equipment (6 Of 12)

G01480873

Courtesy of GENERAL MOTORS CORP.

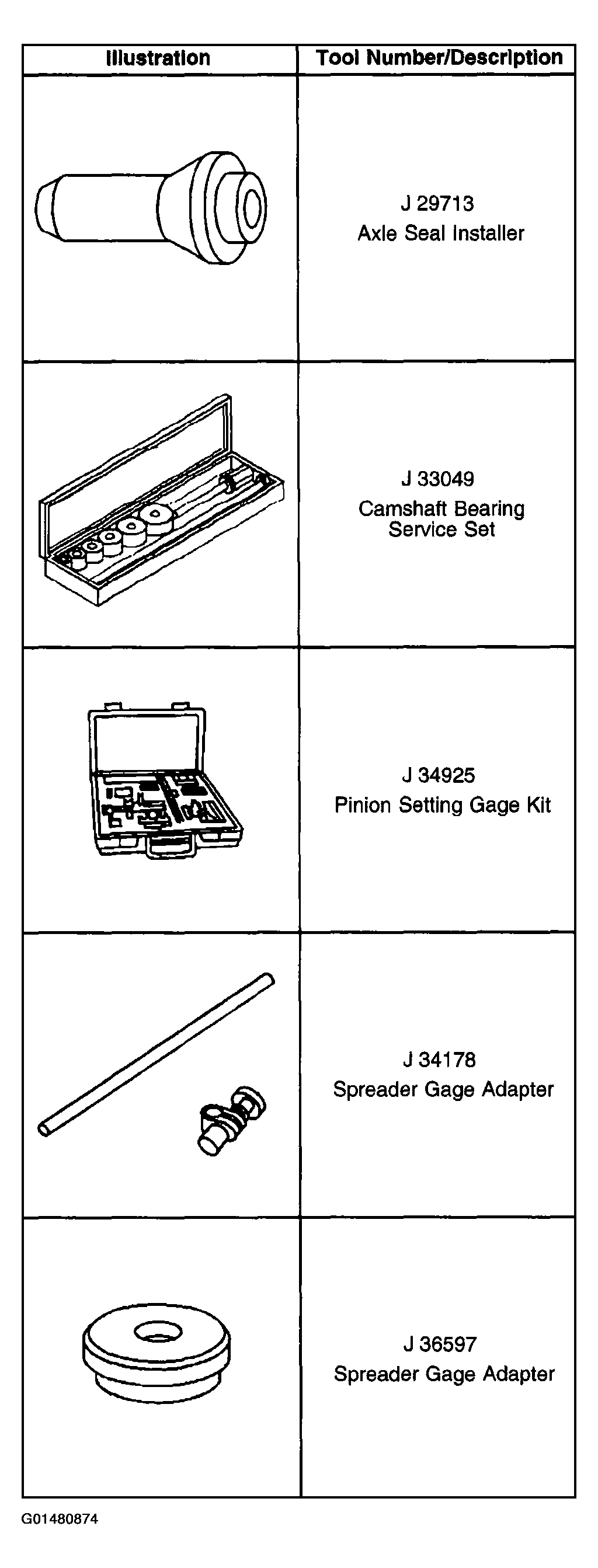

Fig 7: Special Tools & Equipment (7 Of 12)

G01480874

Courtesy of GENERAL MOTORS CORP.

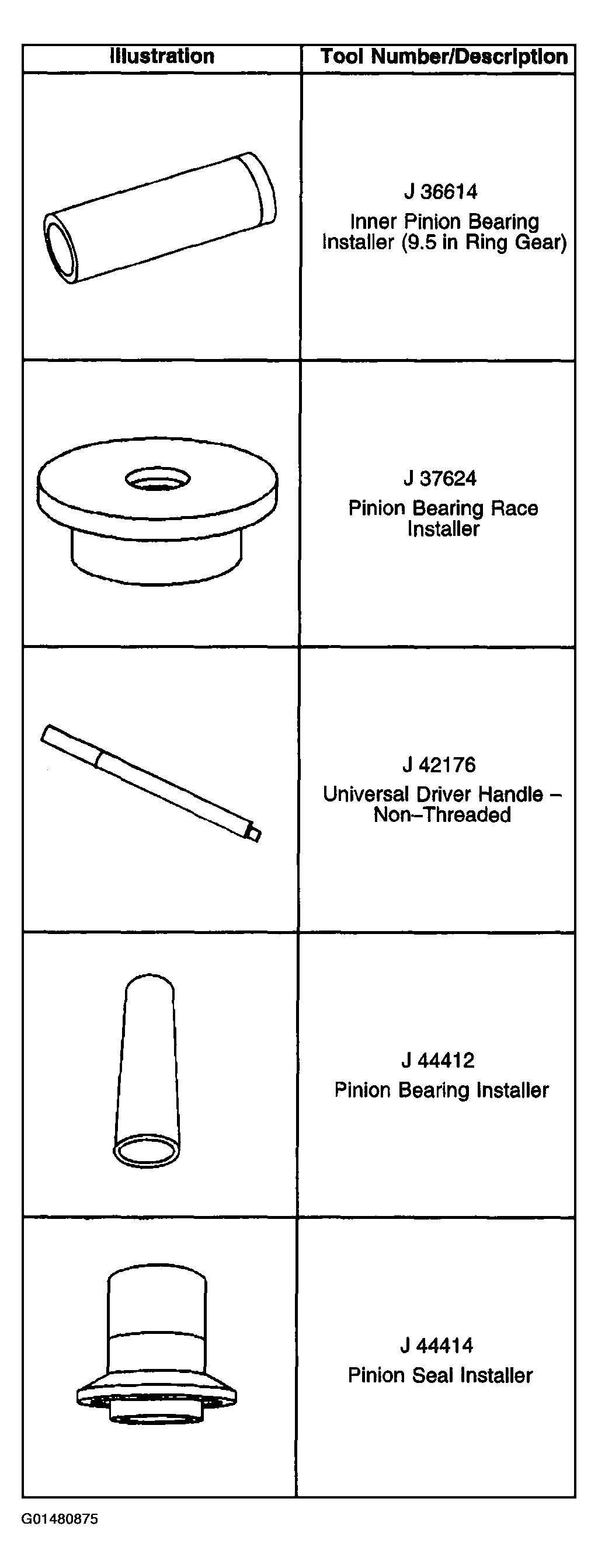

Fig 8: Special Tools & Equipment (8 Of 12)

G01480875

Courtesy of GENERAL MOTORS CORP.

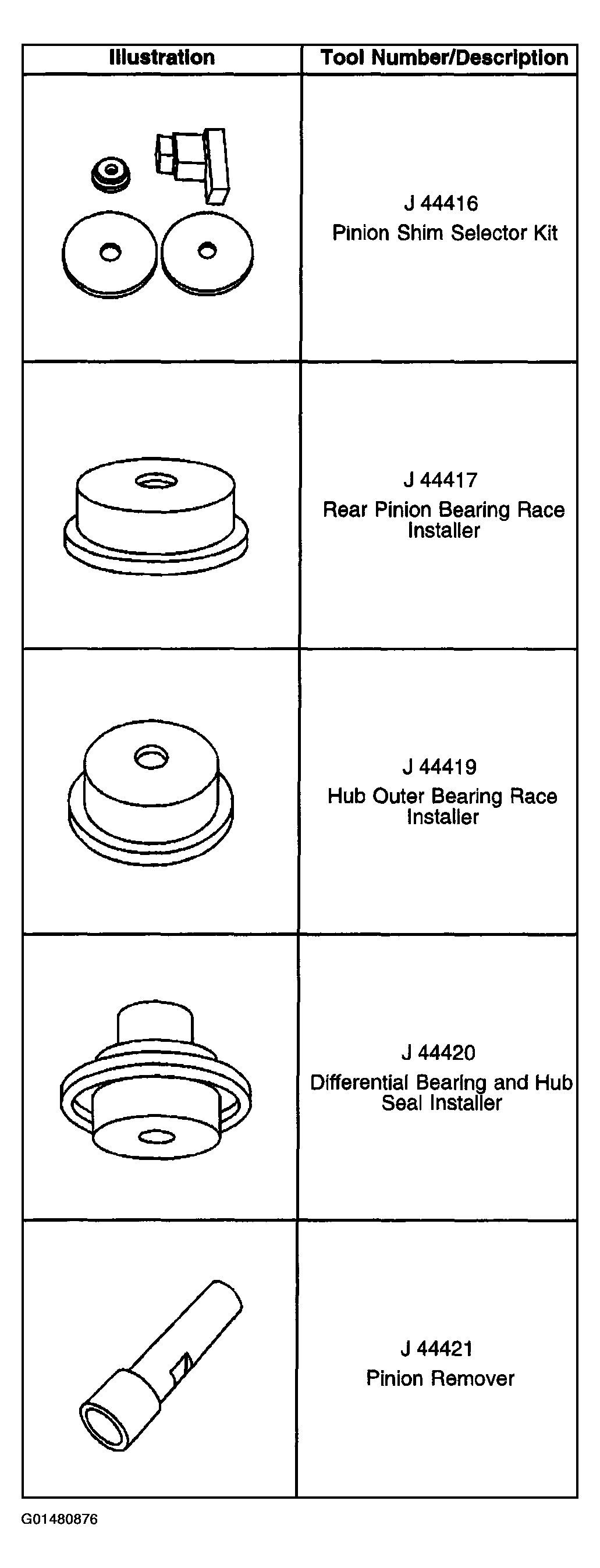

Fig 9: Special Tools & Equipment (9 Of 12)

G01480876

Courtesy of GENERAL MOTORS CORP.

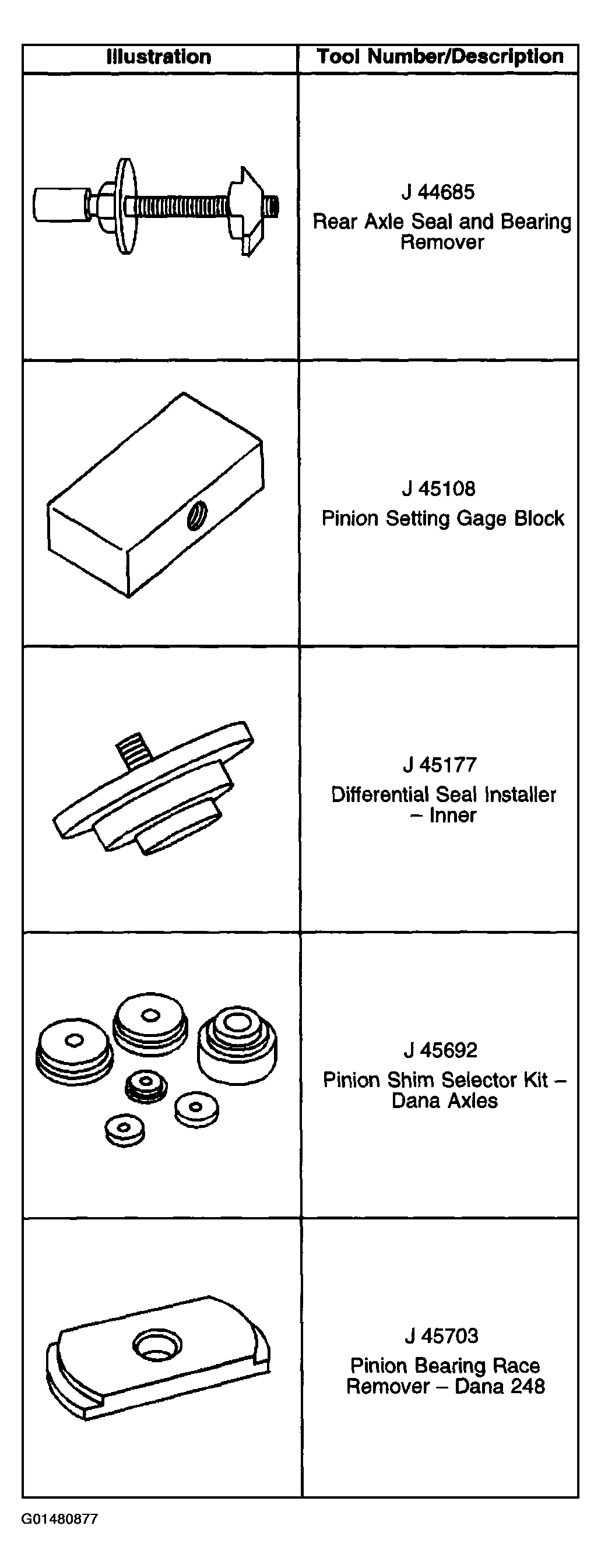

Fig 10: Identifying Special Tools And Equipment (10 Of 12)

G01480877

Courtesy of GENERAL MOTORS CORP.

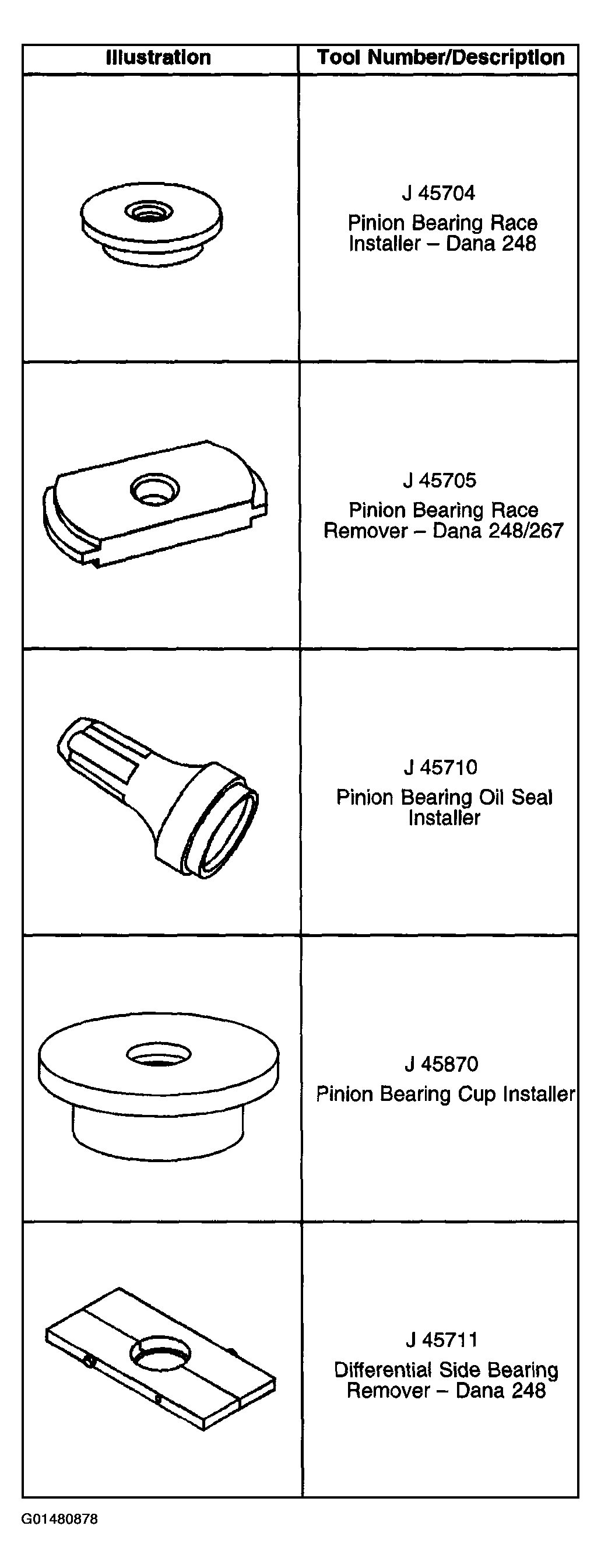

Fig 11: Special Tools & Equipment (11 Of 12)

G01480878

Courtesy of GENERAL MOTORS CORP.

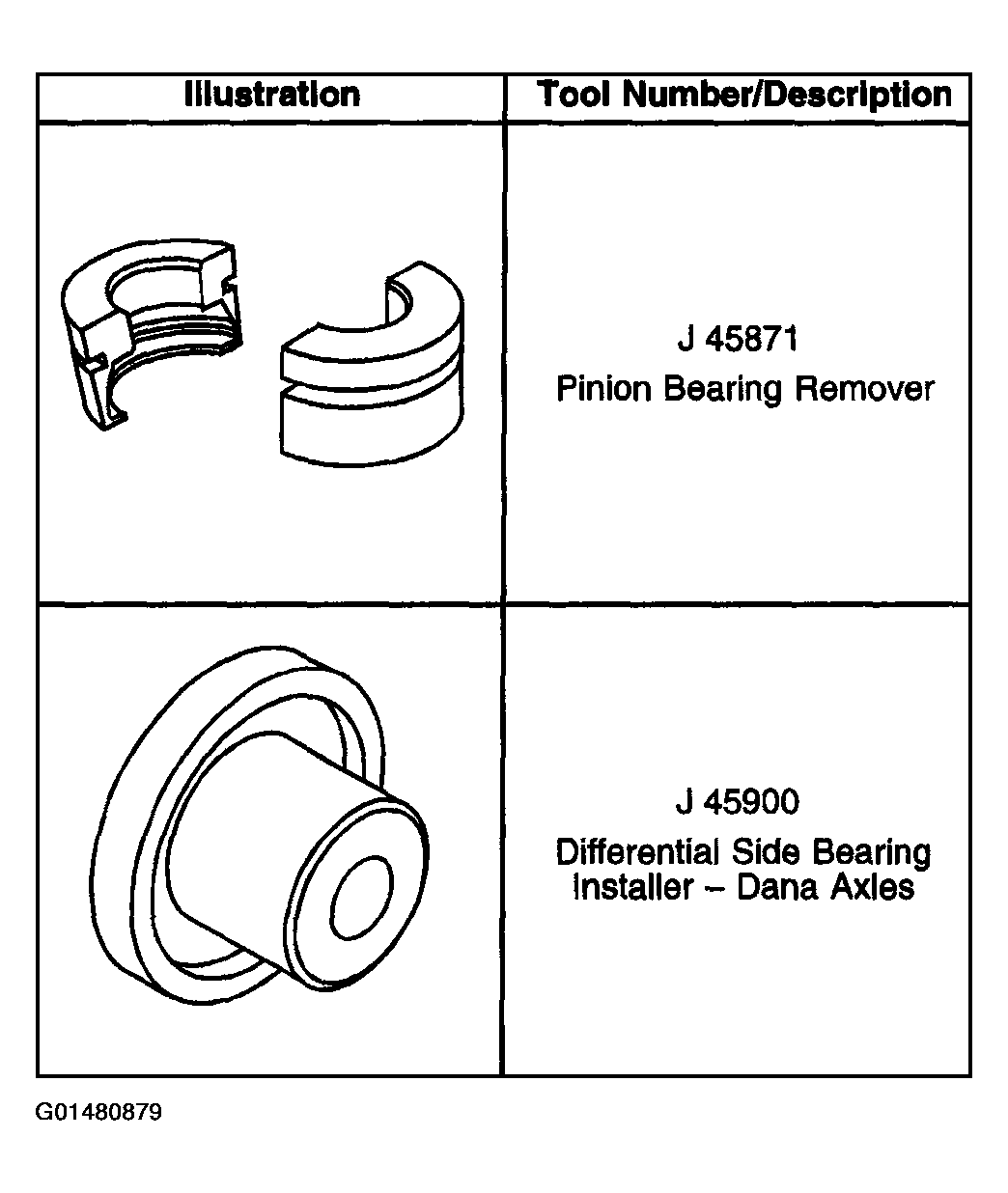

Fig 12: Special Tools & Equipment (12 Of 12)

G01480879

Courtesy of GENERAL MOTORS CORP.
