Adjustment Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 2222-C Wheel Bearing Nut Wrench

Raise the vehicle. Refer to JACKING AND LIFTING .
Remove the axle shaft. Refer to Rear Axle Shaft and/or Gasket Replacement .
Remove the hub adjuster nut retaining ring.

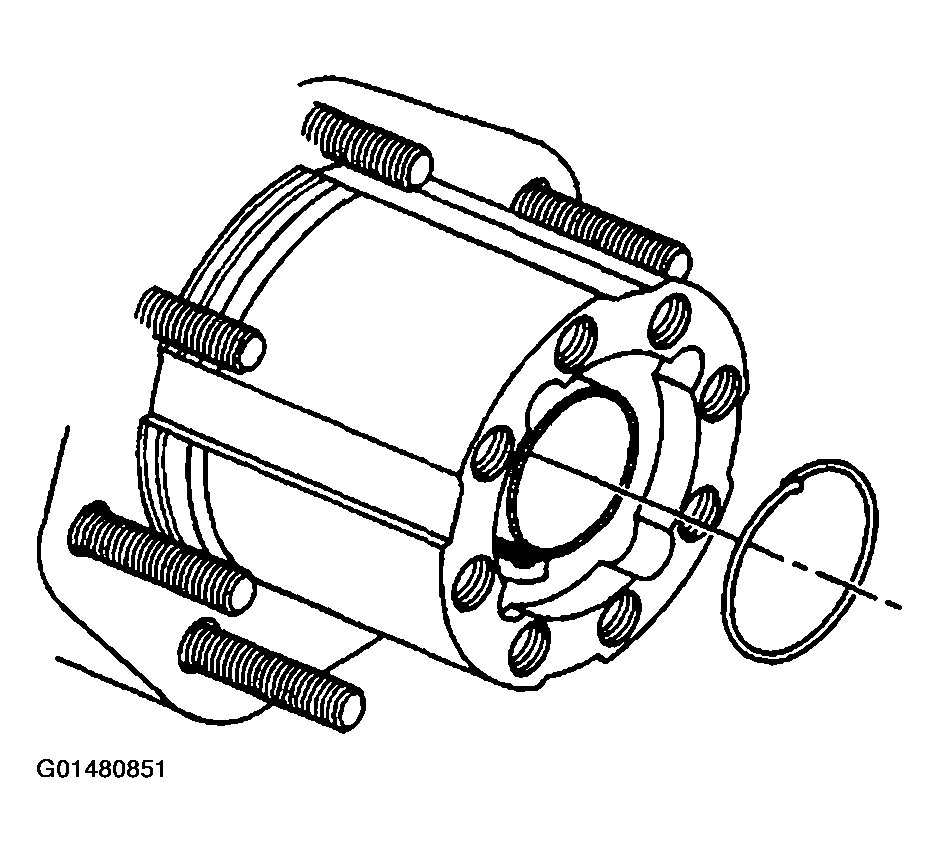

Fig 1: Hub Adjuster Nut Retaining Ring
Courtesy of GENERAL MOTORS CORP.
Remove the adjuster nut lock key.

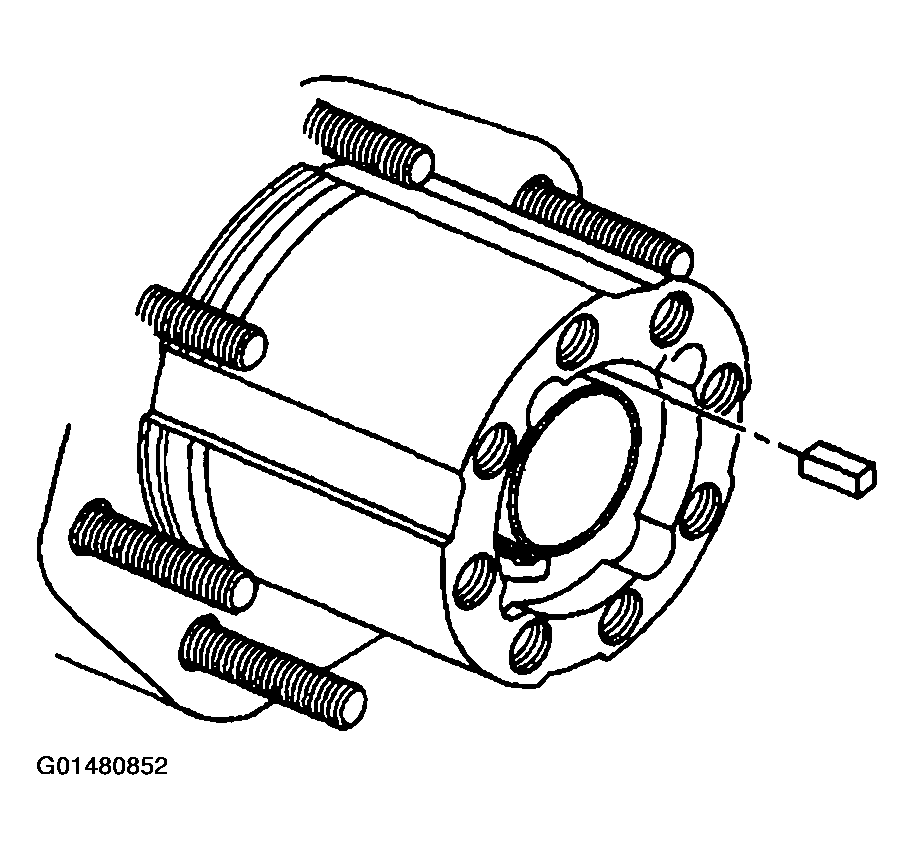

Fig 2: Adjuster Nut Lock Key
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Tighten the wheel bearing adjusting nut using the J 2222-C.
Rotate the hub in the opposite direction to the way the adjuster nut is turning.

Ensure the inner bearing and the seal seats against the spindle shoulder.

Tighten

Tighten the adjusting nut to 70 N.m (52 lb ft).
Turn the adjusting nut counterclockwise until the nut is loose using the J 2222-C.
Turn the adjusting nut clockwise until the nut contacts the bearing cone. Torque on the nut must be zero to finger tight.

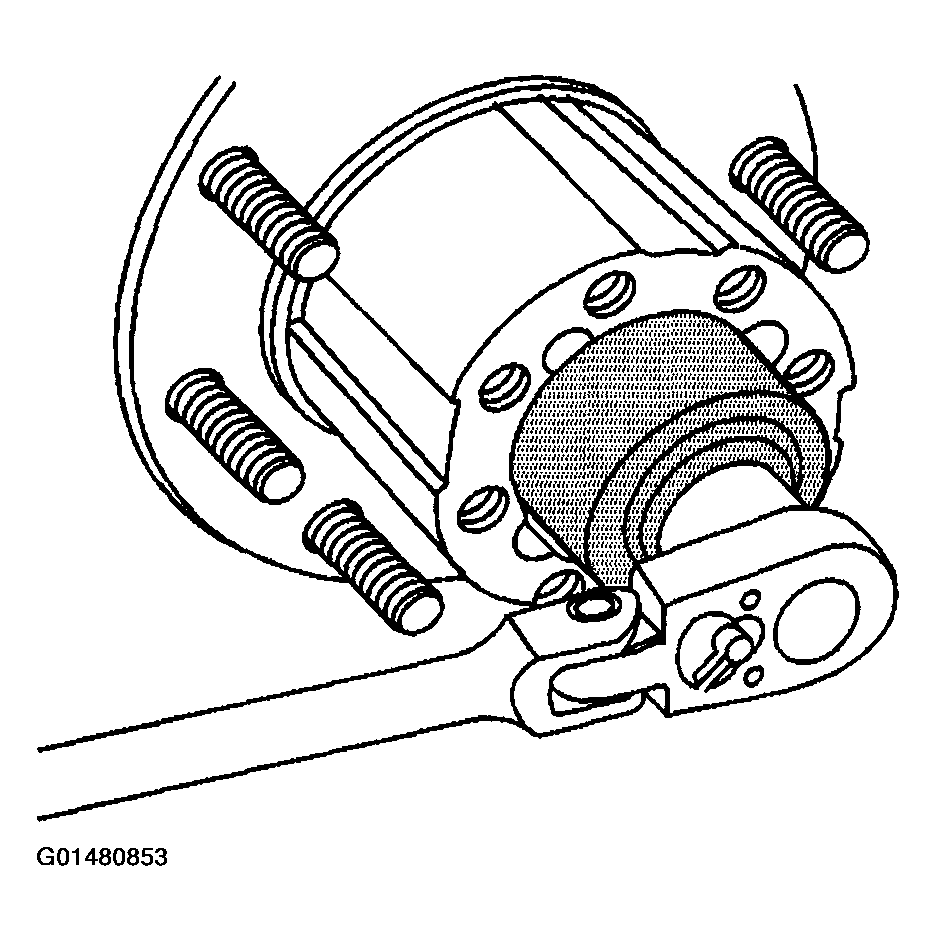

Fig 3: Tightening Wheel Bearing Adjusting Nut Using J 2222-C
Courtesy of GENERAL MOTORS CORP.
Insert the adjusting nut lock key into the keyway using one of the following procedures:
- If the adjusting nut slot is in alignment with the keyway in the axle spindle, insert the adjusting nut lock key into the keyway in the axle spindle.
  IMPORTANT: Do not turn the adjusting nut more than one slot counterclockwise in order to align the adjusting nut slot with the keyway in the axle spindle.
- If the adjusting nut slot is not aligned with the keyway in the axle spindle, turn the adjusting nut counterclockwise until the adjusting nut slot is in alignment with the keyway in the axle spindle and insert the adjusting nut lock key.
Fig 4: Inserting Adjusting Nut Lock Key
Courtesy of GENERAL MOTORS CORP.
Install the retaining ring.
Install the axle shaft. Refer to Rear Axle Shaft and/or Gasket Replacement .
Inspect the lubricant level and add, if necessary. Refer to Lubricant Level Inspection - Rear Drive Axle (8.6 Inch Axle) or Lubricant Level Inspection - Rear Drive Axle (9.5, 10.5 Inch Axle) or Lubricant Level Inspection - Rear Drive Axle (11.5 Inch Axle) or Lubricant Level Inspection - Rear Drive Axle (9.75 Inch Axle) .
Lower the vehicle.

Fig 5: Hub Adjust Nut Retaining Ring
Courtesy of GENERAL MOTORS CORP.
