Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the flange bolts.
  2. Lightly tap the axle shaft with a soft-faced hammer in order to loosen the shaft.
  3. Grip the rib on the axle shaft flange with a locking pliers. Twist the axle shaft flange in order to start the axle shaft removal.
  4. Remove the axle shaft from the tube.
  5. Remove the gasket.
  6. Clean the axle shaft flange and the outside face of the hub assembly.

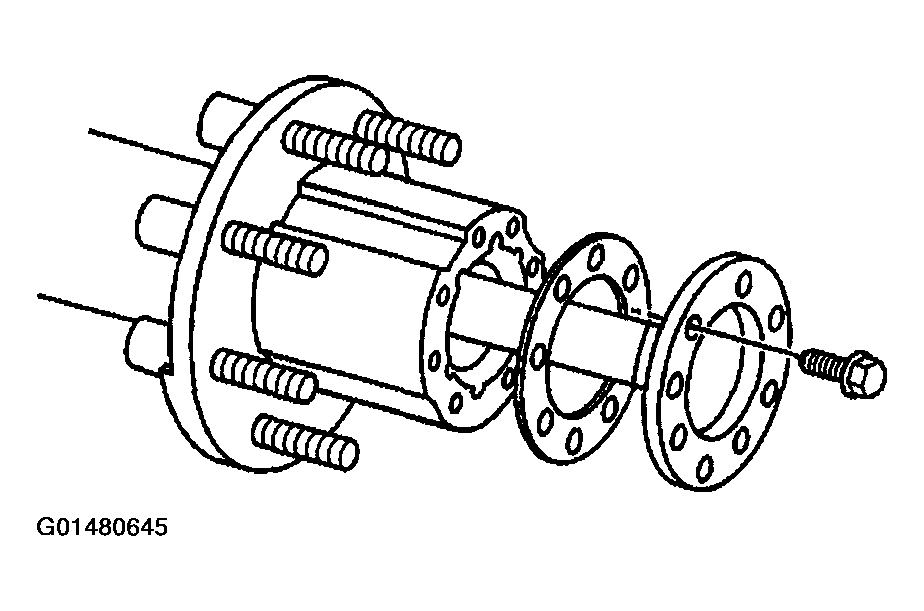

    Fig 1: Axle Shaft, Flange Bolts & Gasket
    G01480645Courtesy of GENERAL MOTORS CORP.
