Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear axle housing cover (2) and a new gasket.
    NOTE: Refer to FASTENER NOTICE .
    IMPORTANT: Do not reuse the rear axle housing cover bolts.
  2. Install the new rear axle housing cover bolts (1).

    Tighten

    Tighten the rear axle housing cover bolts in a crosswise pattern to 40 N.m (30 lb ft).

  3. Fill the rear axle. Use the proper fluid.
  4. Lower the vehicle.

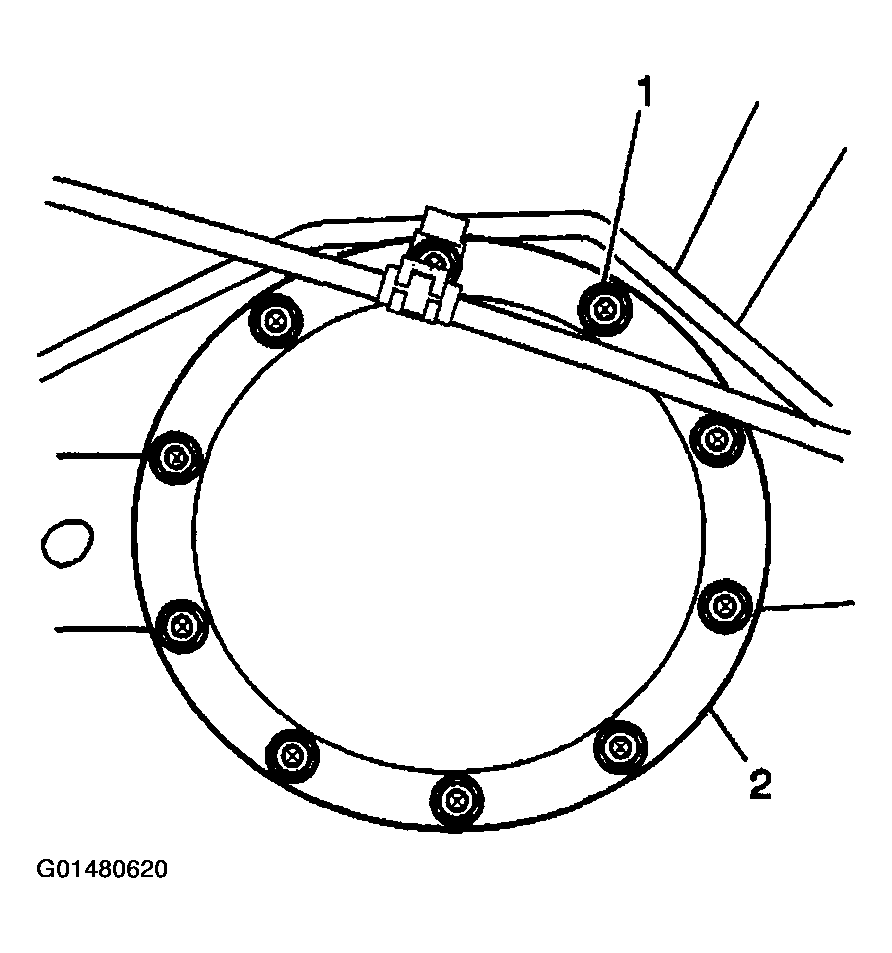

Fig 1: Rear Axle Housing Cover & Bolts
G01480620Courtesy of GENERAL MOTORS CORP.
