Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the differential assembly. Refer to Differential Replacement (8.6 Inch, 9.5 Inch Axles)  or Differential Replacement (9.75 Inch Axle)  or Differential Replacement (10.5 Inch, 11.5 Inch Axle) .
  2. Remove the differential side bearings by doing the following:
    1. 2.1. For the 8.6 inch, 9.5 inch, 11.5 inch axles, install the differential assembly into a vise.
    2. 2.2. For the 10.5 inch axle, place a block of wood on each side of the differential assembly.

      Install the differential assembly into a vise.

    3. 2.3. Install the J 22888-20A  (2) and the J 8107-4  8.6 inch axle, or the J 36597,  9.5 inch or 10.5 inch axle, or the J 8107-5, 11.5 inch (1) axle, over the differential case side bearing bore.
    4. 2.4. Remove the differential side bearings using the J 22888-20A.

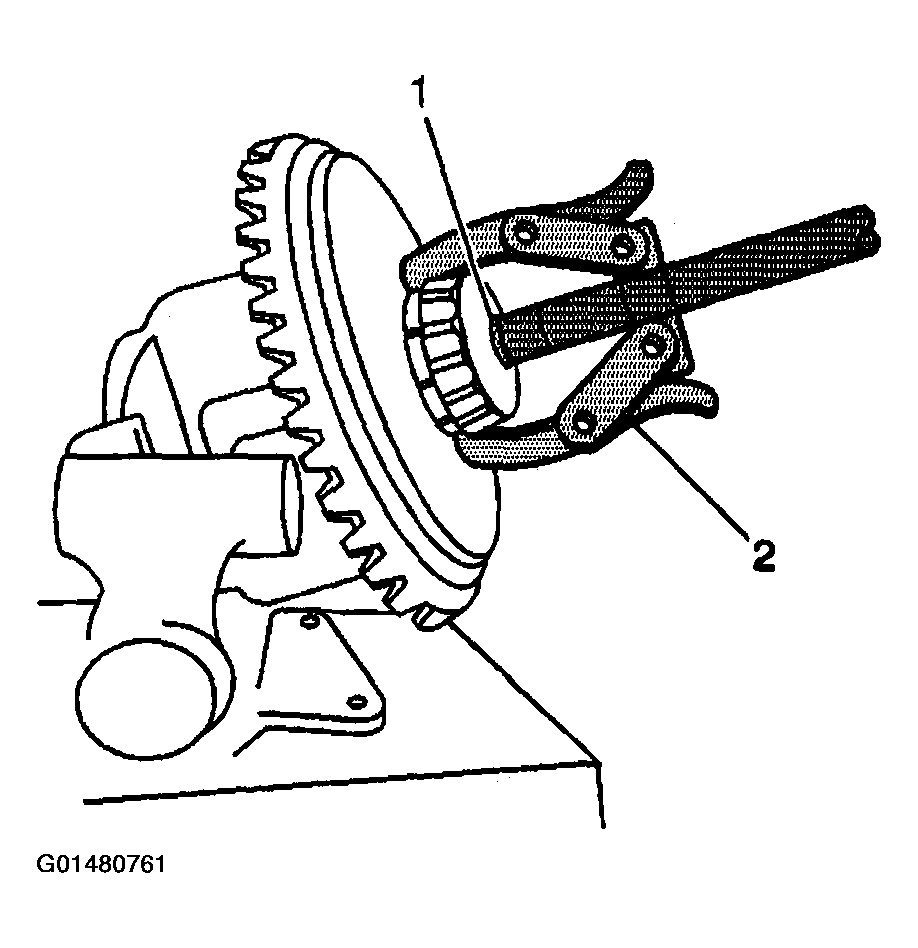

Fig 1: J 22888-20A & J 8107-5
G01480761Courtesy of GENERAL MOTORS CORP.
