Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the ring gear. Refer to Drive Pinion and Ring Gear Replacement (8.6 Inch, 9.5 Inch, 11.5 Inch Axles)  or Drive Pinion and Ring Gear Replacement (9.75 Inch Axle)  or Drive Pinion and Ring Gear Replacement (10.5 Inch Axle) .
  2. Determine the total shim pack size for the differential assembly. Refer to Determining Total Shim Pack Size .

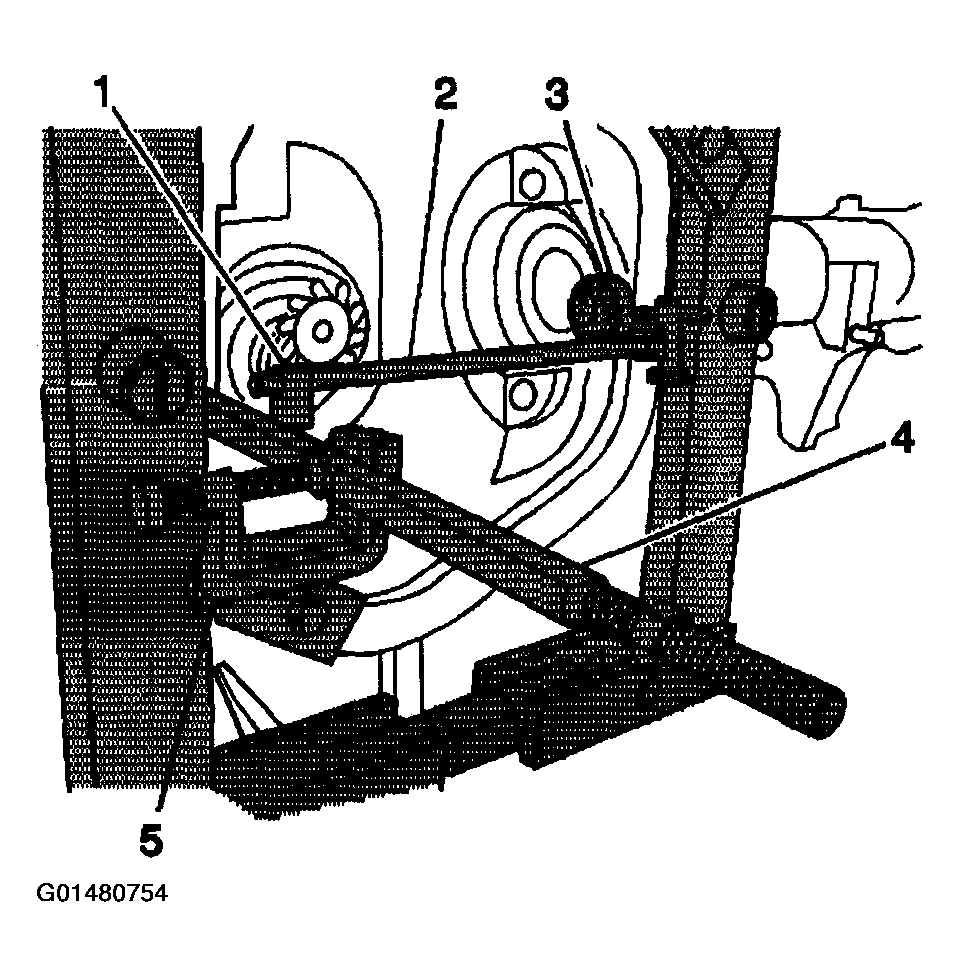

    Fig 1: Install J 25025-B, J 8001-2, J 34178 & J 8001-4 As Shown
    G01480754Courtesy of GENERAL MOTORS CORP.
  3. Install the differential side bearings, if necessary. Refer to Differential Side Bearings Replacement (All Except 9.75 Inch Axle)  or Differential Side Bearings Replacement (9.75 Inch Axle) .
  4. Install the J 24385-01  onto the axle housing.
  5. Install the J 25025-B  (4), the J 8001-1  and the J 8001-2 (5,1), the  J 34178 (2), and the J 8001-3  and the J 8001-4  (3) onto the axle housing as shown.
  6. Preload the dial of the J 8001-3  by pushing the J 8001-3  against the edge of the J 24385-01  until the needle of the J 8001-3  has moved approximately 3/4 of a turn clockwise.
  7. Rotate the indicator housing to align the indicator needle of the J 8001-3  and the dial indicator face to ZERO.
    NOTE: Do not spread the axle housing more than 0.38 mm (0.015 inch). Overspreading the housing may result in component damage.
  8. Spread the axle housing by turning the clevis screw of the J 24385-01  clockwise while observing the J 8001  .
  9. Spread the housing just enough to install the differential assembly.
  10. Remove the J 25025-B,  the J 8001-1,  the J 8001-2,  the J 34178,  the J 8001-3  and the J 8001-4  from the axle housing.
  11. Install the differential assembly.
  12. Remove the J 24385-01.
    IMPORTANT: Corresponding letters are stamped on the bearing caps and axle housing. The bearing caps must be reassembled in the same position as removed.
    NOTE: Refer to FASTENER NOTICE .
  13. Install the bearing caps.

    Tighten

  14. Install the axle shafts. Refer to Rear Axle Shaft Replacement (8.6 Inch, 9.5 Inch Axles)  or Rear Axle Shaft Replacement (9.75 Inch Axle) .
  15. Fill the axle with lubricant. Use the proper fluid. Refer to Lubricant Replacement - Rear Drive Axle (8.6 Inch Axle)  or Lubricant Replacement - Rear Drive Axle (9.5, 10.5, and 11.5 Inch Axles)  or Lubricant Replacement - Rear Drive Axle (9.75 Inch Axle) .
  16. Lower the vehicle.
