Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer JACKING AND LIFTING .
  2. Disconnect the vent hose from the vent hose connector.

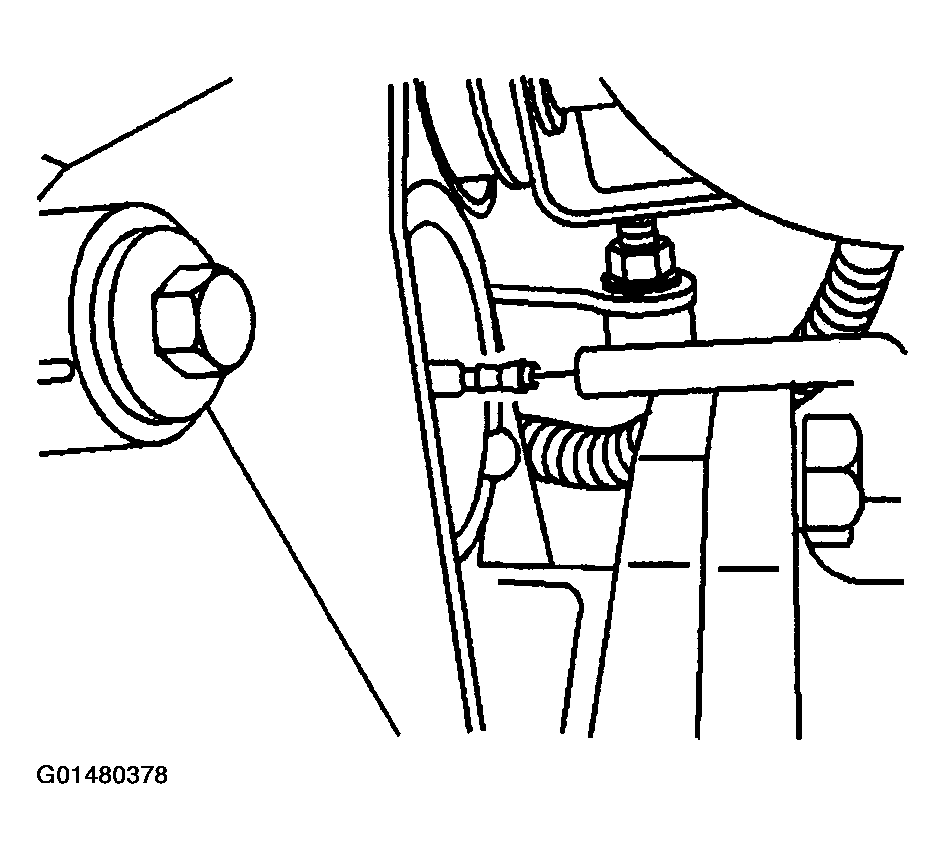

    Fig 1: Disconnect Vent Hose
    G01480378Courtesy of GENERAL MOTORS CORP.
  3. Remove the vent hose connector from the differential carrier assembly.

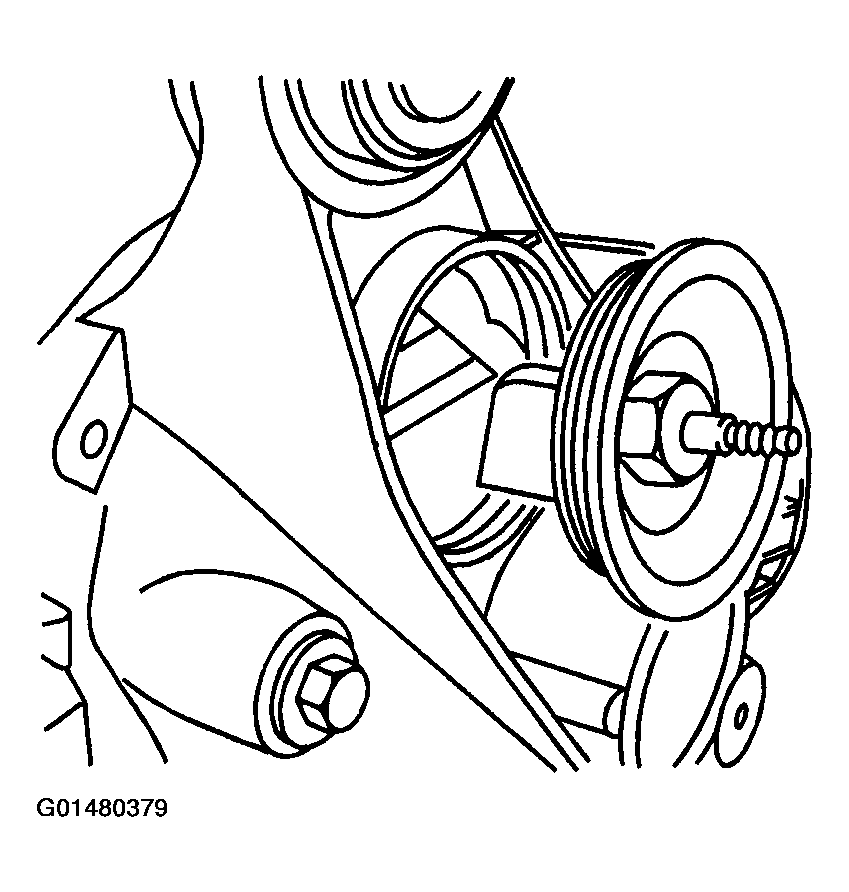

Fig 2: Remove Vent Hose Connector
G01480379Courtesy of GENERAL MOTORS CORP.
