Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the vent hose connector into the differential carrier assembly.
    NOTE: Refer to FASTENER NOTICE .
  2. Tighten the vent hose connector assembly.

    Tighten

    Tighten the vent hose connector to 25 N.m (18 lb ft).

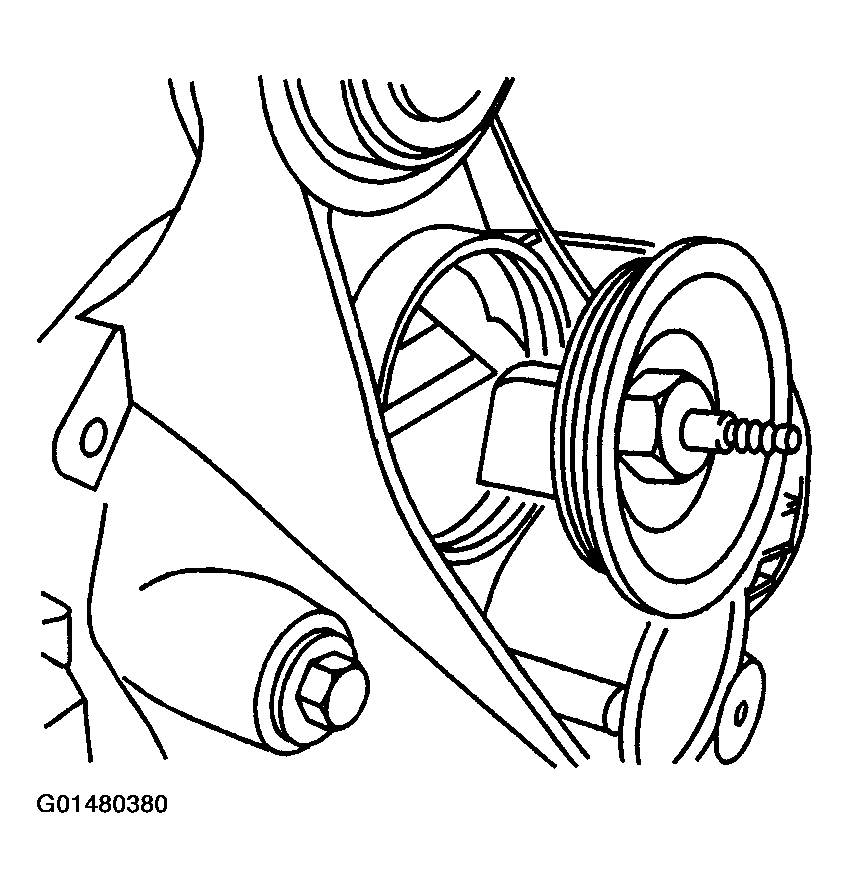

    Fig 1: Install Vent Hose Connector
    G01480380Courtesy of GENERAL MOTORS CORP.
  3. Connect the vent hose to the vent hose connector.
  4. Lower the vehicle.

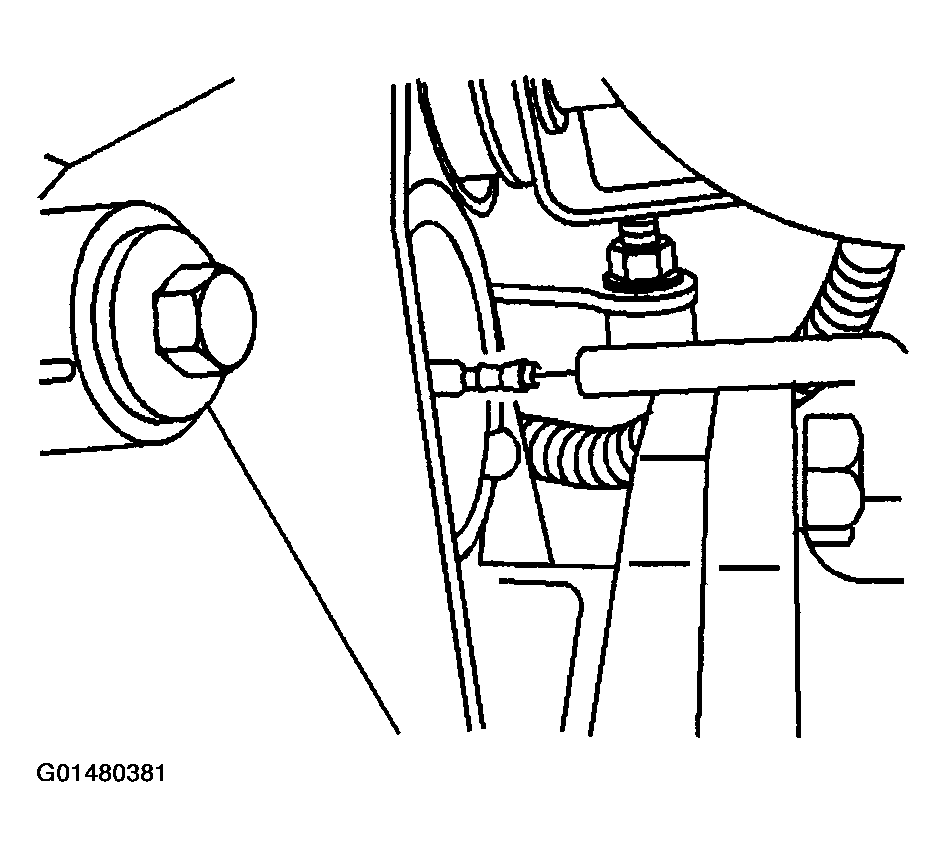

Fig 2: Connect Vent Hose To Vent Hose Connector
G01480381Courtesy of GENERAL MOTORS CORP.
