Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to JACKING AND LIFTING .
  2. Remove the front differential carrier shield, if equipped. Refer to Shield Replacement .
  3. Clean the area around the front axle fill plug and the drain plug.
  4. Remove the fill plug.
  5. Remove the drain plug.
  6. Drain the fluid from the front differential carrier assembly.

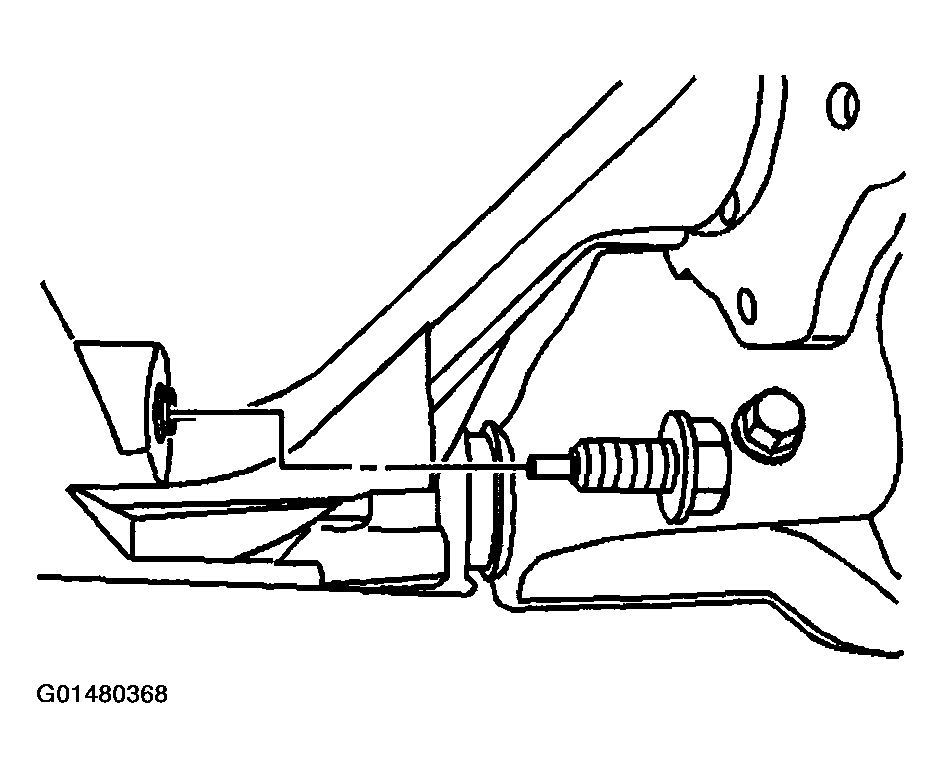

Fig 1: Remove Drain Plug
G01480368Courtesy of GENERAL MOTORS CORP.
