Lubricant Level Inspection - Front Drive Axle

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to JACKING AND LIFTING .
  2. Make sure the vehicle is level.
  3. Inspect the front axle for leaks. Repair as necessary.
  4. Remove the front differential carrier shield (if equipped). Refer to Shield Replacement .
  5. Clean the area around the front axle fill plug.
  6. Remove the front axle fill plug (1).

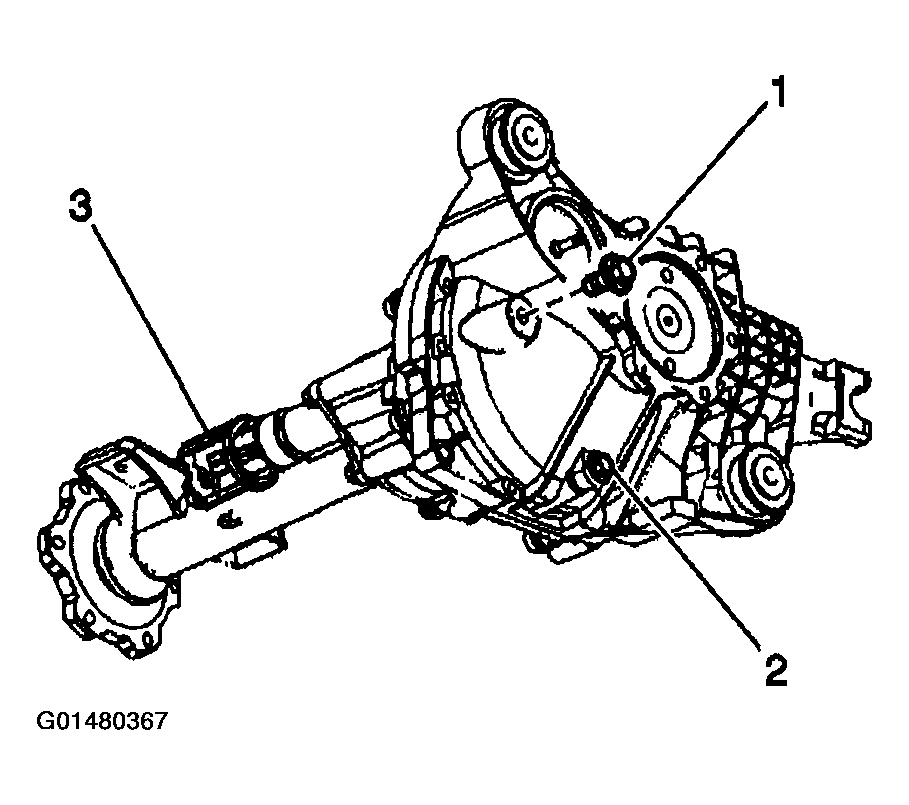

    7. Fig 1: Front Axle Fill Plug
    G01480367Courtesy of GENERAL MOTORS CORP.
  7. Inspect the oil level.

    Specification

    The oil level should be between 0-10 mm (0-0.375 in) below the fill plug opening.

  8. If the level is low, add oil until the level is even with the bottom edge of the fill plug opening. Use the proper fluid.
    NOTE: Refer to FASTENER NOTICE .
  9. Install the fill plug.

    Tighten

    Tighten the plug to 33 N.m (24 lb ft).

  10. Install the front differential carrier shield (if equipped). Refer to Shield Replacement .
  11. Lower the vehicle.
