Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to JACKING AND LIFTING .
  2. Remove the front differential carrier shield, if equipped. Refer to Shield Replacement .
  3. Disconnect the electrical connector from the actuator (3).
  4. Remove the electric motor actuator (3) by turning the actuator counterclockwise.

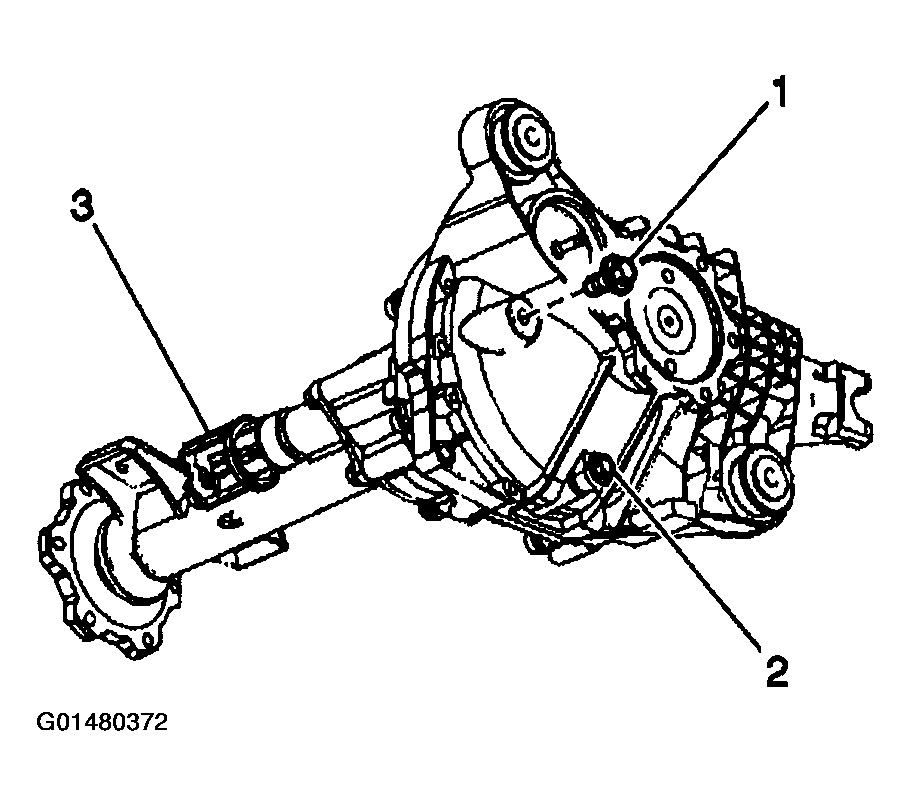

    Fig 1: Electric Motor Actuator & Connector
    G01480372Courtesy of GENERAL MOTORS CORP.
