Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply sealant GM P/N 12346004 (Canadian P/N 10953480) to the threads of the electric motor actuator.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the electric motor actuator (3).

    Tighten

    Tighten the actuator to 20 N.m (15 lb ft).

  3. Connect the electrical connector to the actuator.
  4. Install the front differential carrier shield, if equipped. Refer to Shield Replacement .
  5. Lower the vehicle.

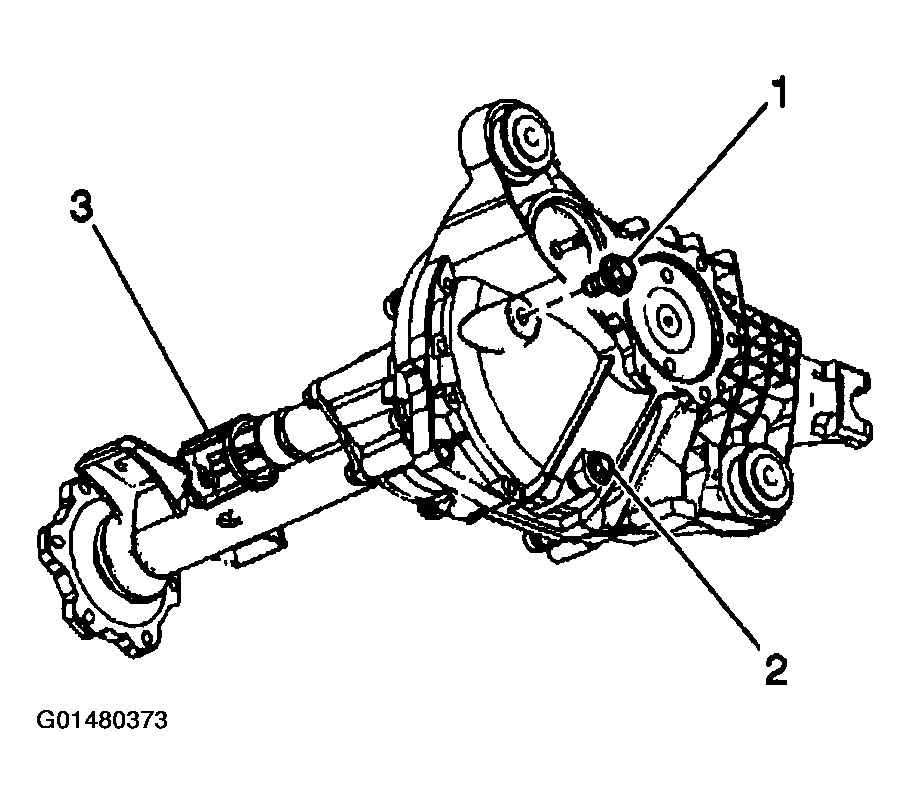

    Fig 1: Electric Motor Actuator & Connector
    G01480373Courtesy of GENERAL MOTORS CORP.
