Installation Procedure
WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
- Lubricate the bearing with axle lubricant. Use the proper fluid.

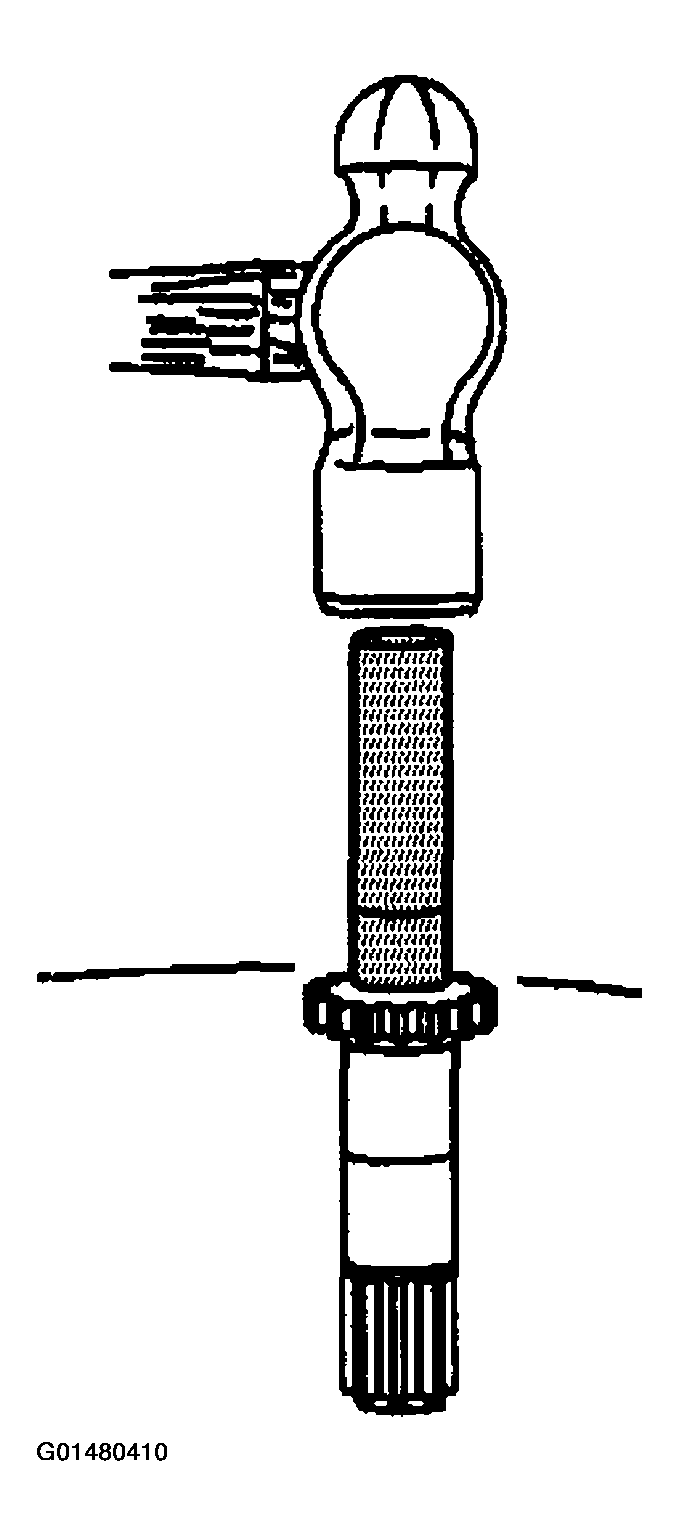

- Install the clutch shaft pilot bearing using the J 33842.
- Install the clutch shaft to the differential carrier assembly.
- Install the inner axle shaft and housing assembly.
Refer to Inner Shaft and/or Housing Replacement - Front Drive Axle (8.25 S4WD and 9.25 Axles) or Inner Shaft and/or Housing Replacement - Front Drive Axle (8.25 F4WD Axle) .
