Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bracket to the vehicle.
  2. Install the bolt to the frame and the bracket.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the washers and the nuts to the bracket.

    Tighten

    Tighten the nuts to 90 N.m (70 lb ft).

  4. Install the differential carrier assembly. Refer to Differential Carrier Assembly Replacement .
  5. Lower the vehicle.

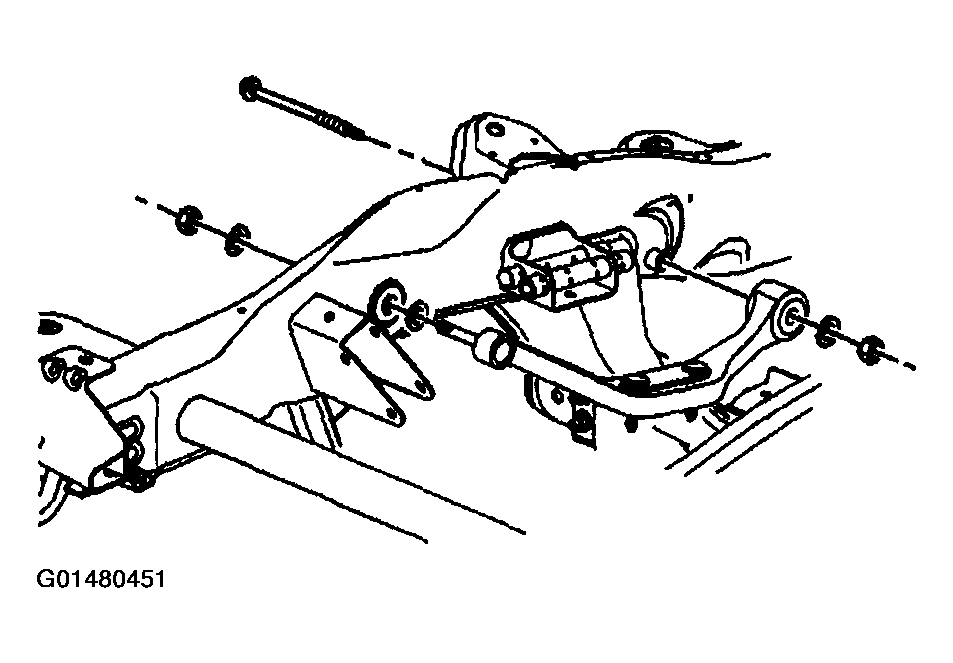

Fig 1: Install Nuts, Washers & Bracket
G01480451Courtesy of GENERAL MOTORS CORP.
