Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bracket to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the washers and the nuts to the bracket.

    Tighten

    Tighten the bracket to frame nuts to 90 N.m (67 lb ft).

  3. Install the air conditioning compressor -4.8 L, 5.3 L and 6.0 L engines. Refer to COMPRESSOR REPLACEMENT (L18)  or COMPRESSOR REPLACEMENT (LR4, LM7, AND LQ4)  or COMPRESSOR REPLACEMENT (LB7)  .
  4. Install the differential carrier assembly. Refer to Differential Carrier Assembly Replacement .
  5. Lower the vehicle.

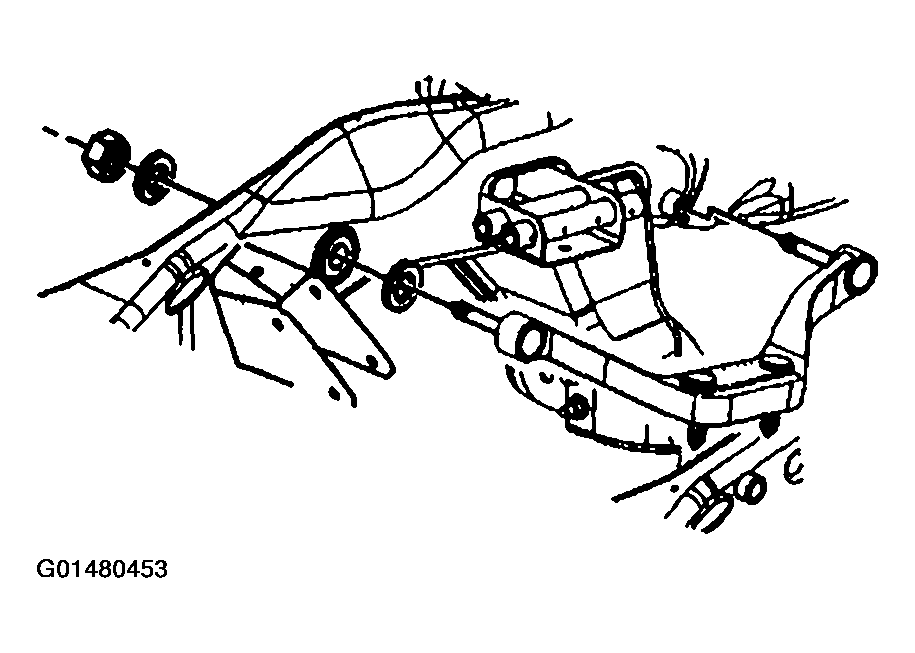

Fig 1: Install Bracket, Washers & Nuts
G01480453Courtesy of GENERAL MOTORS CORP.
