Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to JACKING AND LIFTING .
  2. Remove the propeller shaft. Refer to Propeller Shaft Replacement - Two Piece .
  3. Remove the center bearing by doing the following:

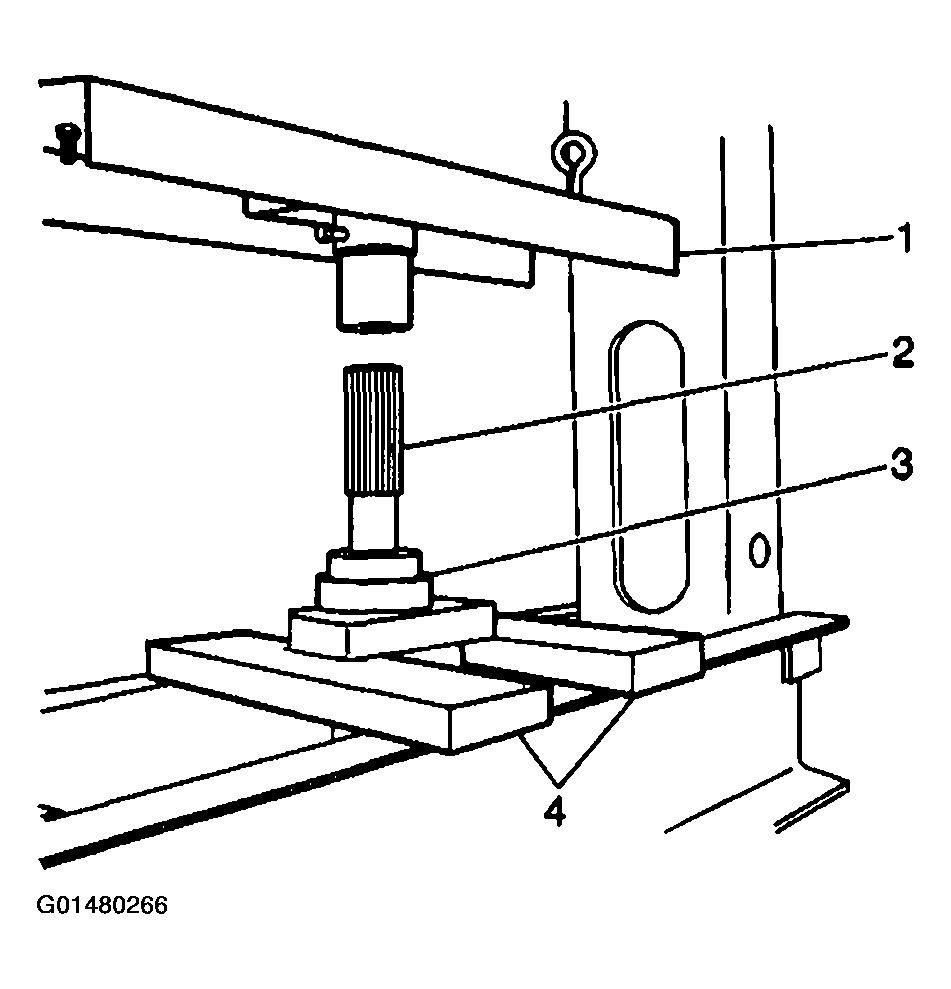

    1. 3.1. Stand the propeller shaft (2) on end in the press (1) with the center bearing (3) supported by the press bars (4).
    2. 3.2. Press the propeller shaft (2) down and off the center bearing (3).
Fig 1: Propeller Shaft, Center Bearing, Press & Press Bars
G01480266Courtesy of GENERAL MOTORS CORP.
