Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the center bearing (3) onto the propeller shaft (2) by pressing the center bearing onto the shaft using a press (1).
  2. Install the propeller shaft. Refer to Propeller Shaft Replacement - Two Piece .
  3. Lower the vehicle.

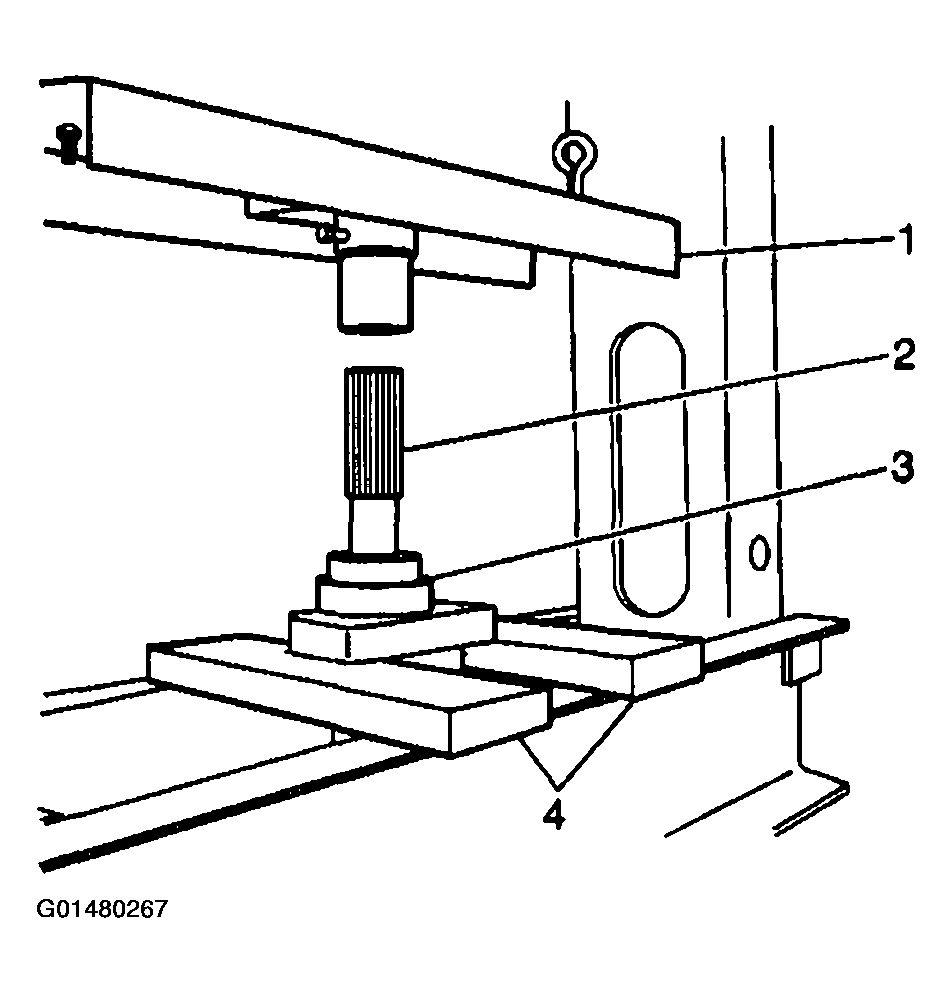

Fig 1: Propeller Shaft, Center Bearing, Press & Press Bars
G01480267Courtesy of GENERAL MOTORS CORP.
