Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to JACKING AND LIFTING .
  2. Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION  .
  3. Remove the brake rotor. Refer to REMOVAL (FRONT) .
  4. Remove the wheel stud from the hub flange using the J 43631.
  5. Remove the wheel stud from the hub flange.

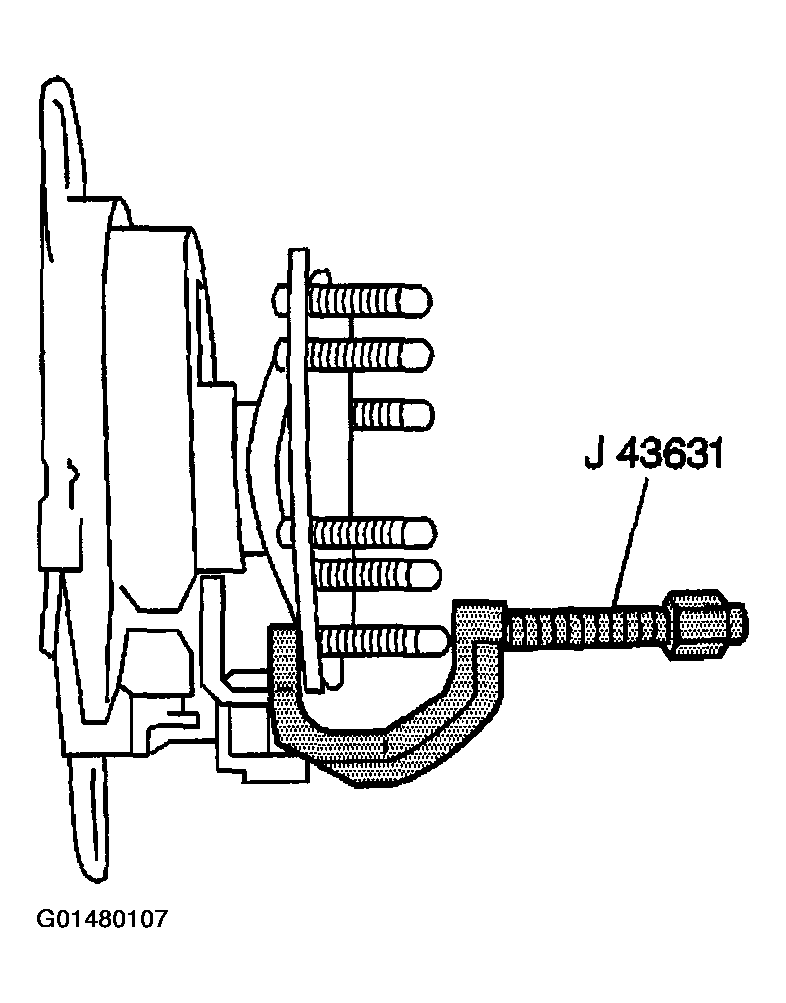

Fig 1: Remove Wheel Stud From Hub Flange Using J 43631
G01480107Courtesy of GENERAL MOTORS CORP.
