Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to JACKING AND LIFTING .
  2. Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION  .
  3. Remove the rotor. Refer to REMOVAL (FRONT) .
  4. Remove the wheel speed sensor and brake hose mounting bracket bolt from the steering knuckle.
  5. Remove the wheel hub and bearing (4) 15-series mounting bolts.
    6. Fig 1: Remove Wheel Hub & Bearing Mounting Bolts 15-Series
    G01480109Courtesy of GENERAL MOTORS CORP.
  6. Remove the wheel hub and bearing mounting bolts (4), the 25/35 series.
  7. Remove the wheel hub and bearing and splash shield from the vehicle.
  8. Remove the O-ring seal from the steering knuckle bore, the 25/35 series.
  9. Remove the wheel speed sensor mounting bolt (5).
  10. Clean and inspect the O-ring seal, the 25/35 series.
  11. Replace the seal if the following conditions exist:
    • Nicks
    • Cuts
    • Dry or brittle
    • Compression set

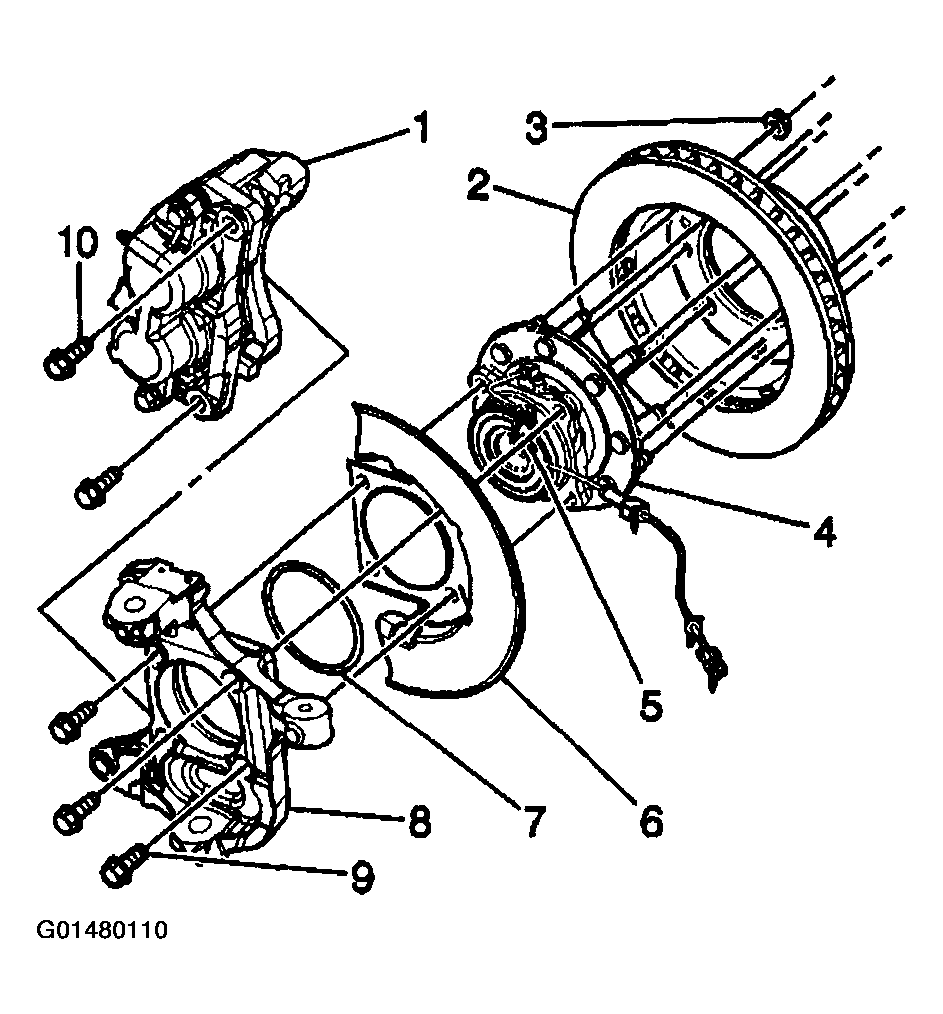

Fig 2: Remove Wheel Hub, Bearing Mounting Bolts 25/35-Series & Wheel Speed Sensor Bolt
G01480110Courtesy of GENERAL MOTORS CORP.
