Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

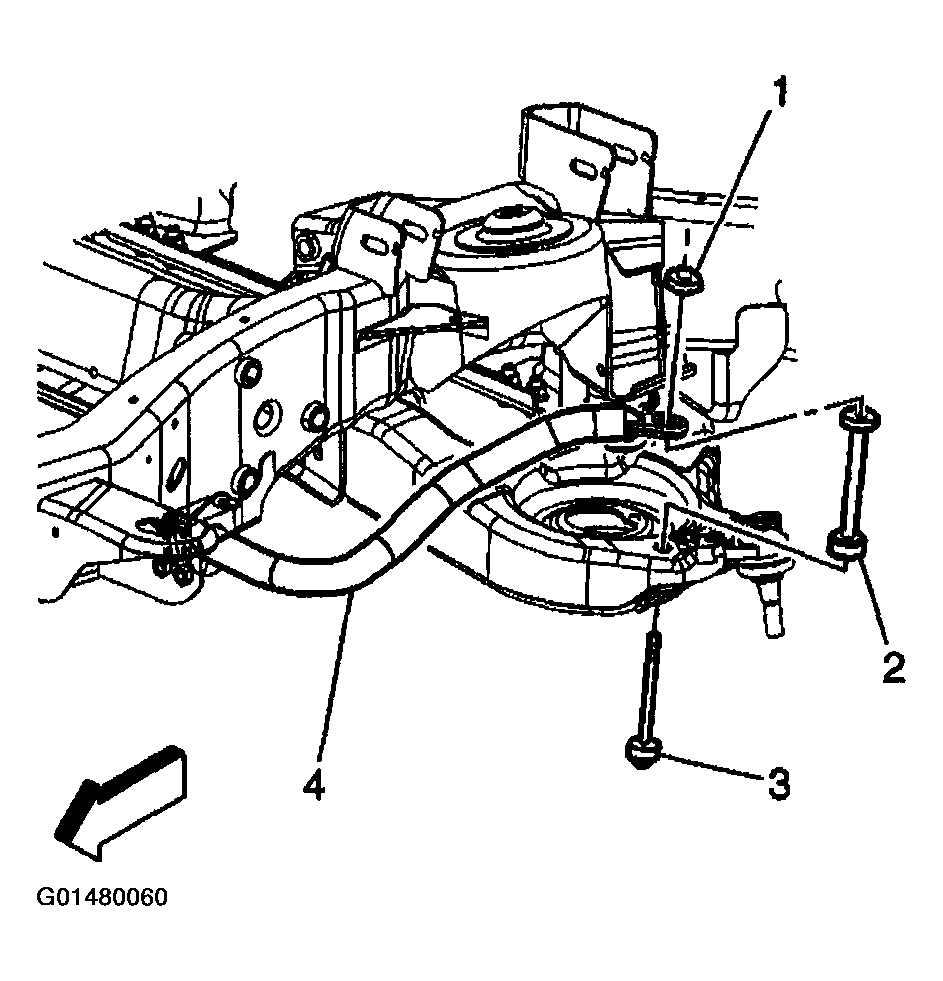

Fig 1: Stabilizer Shaft Nut, Insulators, Spacers & Shaft Link Bolt
G01480060Courtesy of GENERAL MOTORS CORP.
  1. Raise and support the vehicle. Refer to JACKING AND LIFTING .
  2. Remove the stabilizer shaft nut (1) from the link bolt.
  3. Remove the stabilizer shaft link bolt (3).
  4. Remove the stabilizer shaft link insulators and spacers (2).
  5. Inspect all of the parts for wear and damage.
