Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the supplemental inflatable restraint (SIR) system. Refer to ZONE 3 .
  2. Remove the inflator module. Refer to Horn Switch Replacement .
  3. Remove the horn switch. Refer to Horn Switch Replacement .
  4. Make an alignment mark in order to note the relationship of the steering wheel to the steering shaft.
  5. Remove the steering wheel nut.
  6. Remove the steering wheel, using J 1859-A.

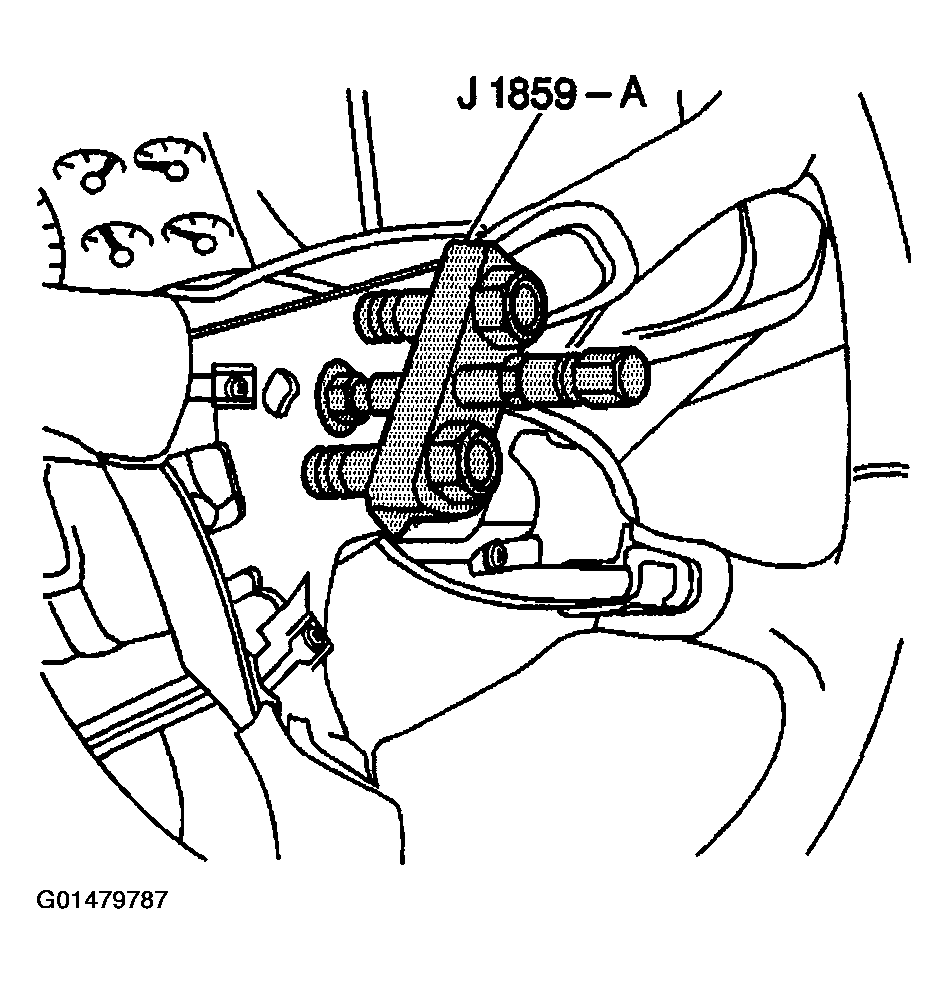

    Fig 1: Remove Steering Wheel Using J 1859-A
    G01479787Courtesy of GENERAL MOTORS CORP.
