Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the marks made during the removal of the steering shaft and the steering wheel.
  2. Install the steering wheel onto the steering shaft.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the steering wheel nut to the steering shaft.

    Tighten

    Tighten the nut to 40 N.m (29 lb ft).

  4. Install the horn switch. Refer to Horn Switch Replacement .
  5. Install the inflator module. Refer to SIR COIL ASSEMBLY .
  6. Enable the SIR system. Refer to ZONE 3 .

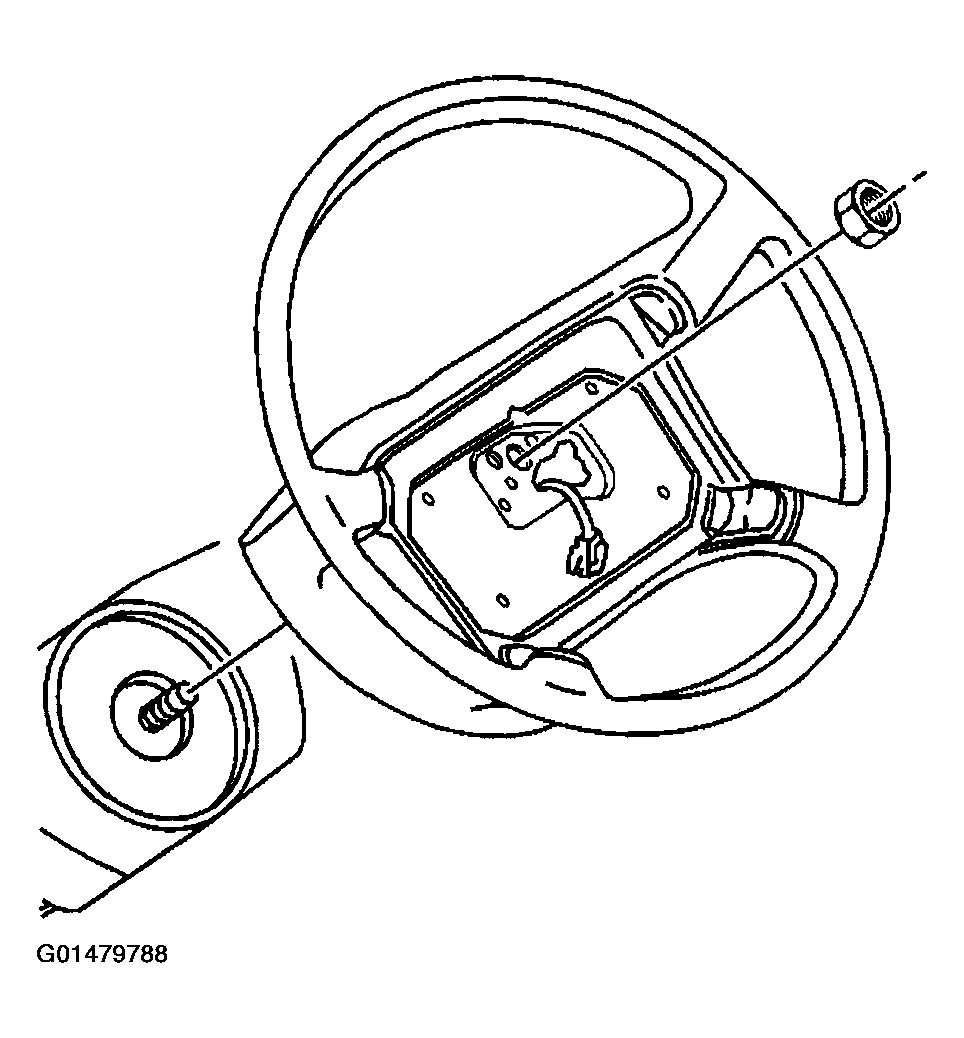

    Fig 1: Install Steering Wheel Nut To Steering Shaft
    G01479788Courtesy of GENERAL MOTORS CORP.
