Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE .

IMPORTANT: If the snap on/off feature on the trim covers was damaged during the removal procedure, you must use screws for the installation procedure. If screws were present in the trim covers before the removal procedure, you must use the screws during the installation procedure.

If there was not any damage done to the trim covers during the removal procedure and no screws were present, proceed to step 3.

Install the upper trim cover (2) onto the steering column. Install 1 TORX® head screw (1) into the upper trim cover (2).
Tighten

Tighten the screw to 1.5 N.m (13 lb in).

Fig 1: Install Upper Trim Cover & Screw
Courtesy of GENERAL MOTORS CORP.
Install the lower trim cover (3) onto the steering column. Install 2 pan head tapping screws (1, 2) into the lower trim cover (3).
Tighten
- Tighten 1 pan head tapping screw (1) to 3.5 N.m (31 lb in).
- Tighten 1 pan head tapping screw (2) to 2 N.m (18 lb in).

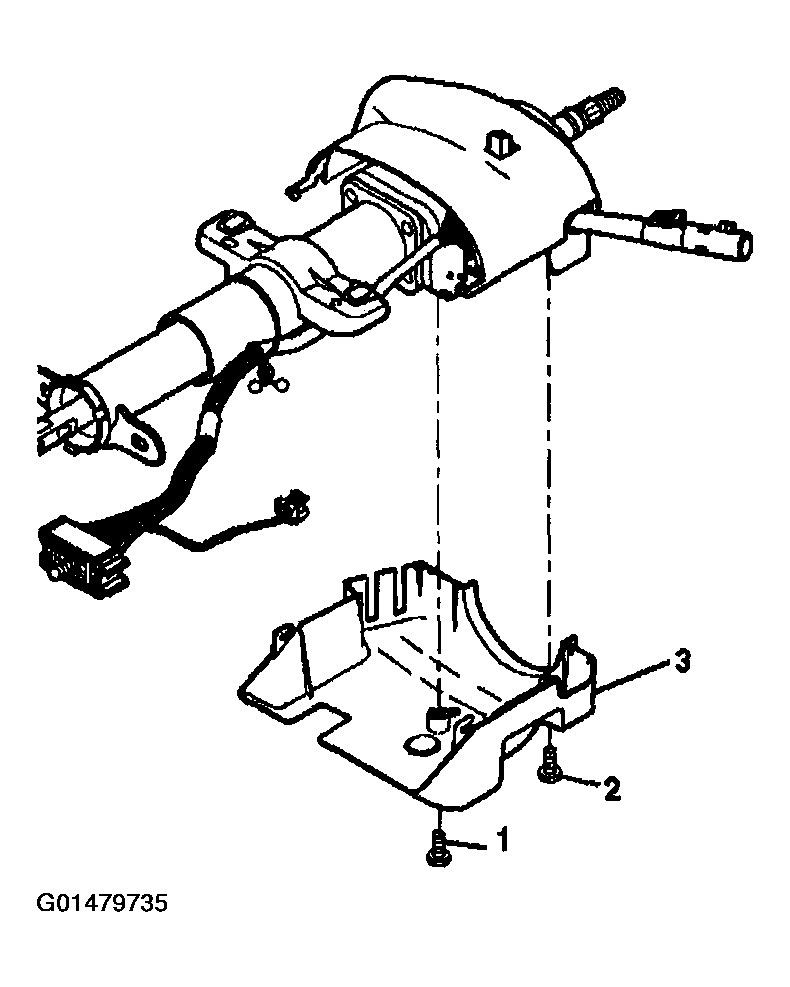

Fig 2: Installing Lower Trim Cover & Screws
Courtesy of GENERAL MOTORS CORP.
Install the upper and lower trim covers onto the steering column.
IMPORTANT: If column shift, the shift lever seal must be seated in the trim covers.
Slide the shift lever seal down the shift lever.
Gently snap the upper and lower trim covers together.
Install the tilt lever into the lower trim cover. Refer to Tilt Lever Replacement .
Enable the SIR system. Refer to ZONE 3 .

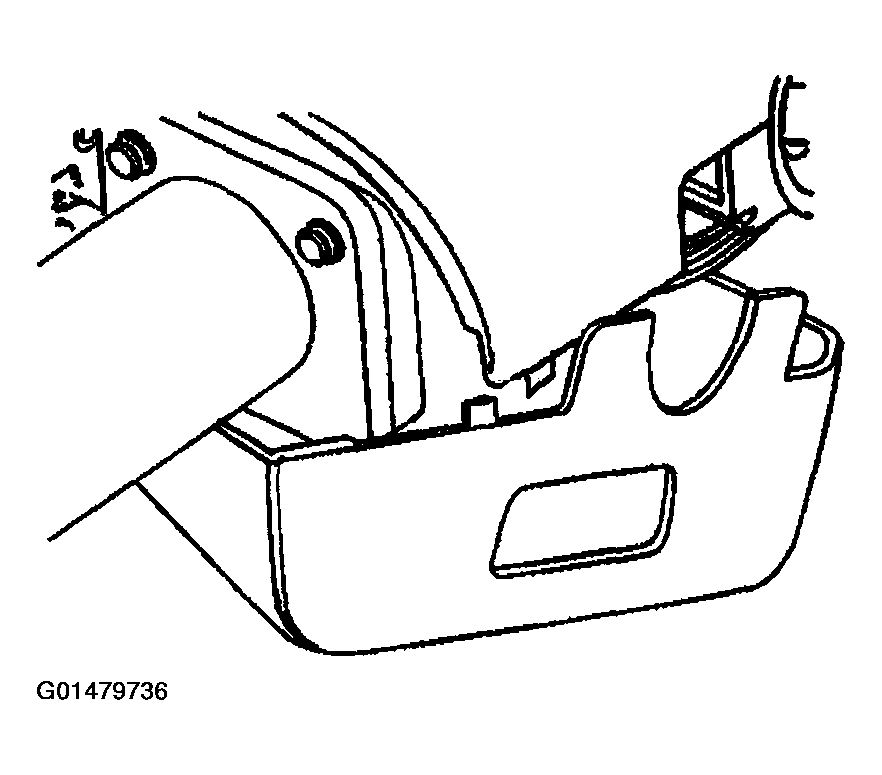

Fig 3: Install Upper & Lower Trim Covers Onto Steering Column
