Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the shift lever (1).
    NOTE: Refer to FASTENER NOTICE .
  2. Install the TORX® head screw (2).

    Tighten

    Tighten the screw to 1.5 N.m (13 lb in).

  3. Roll the seal over the TORX® head screw (2).

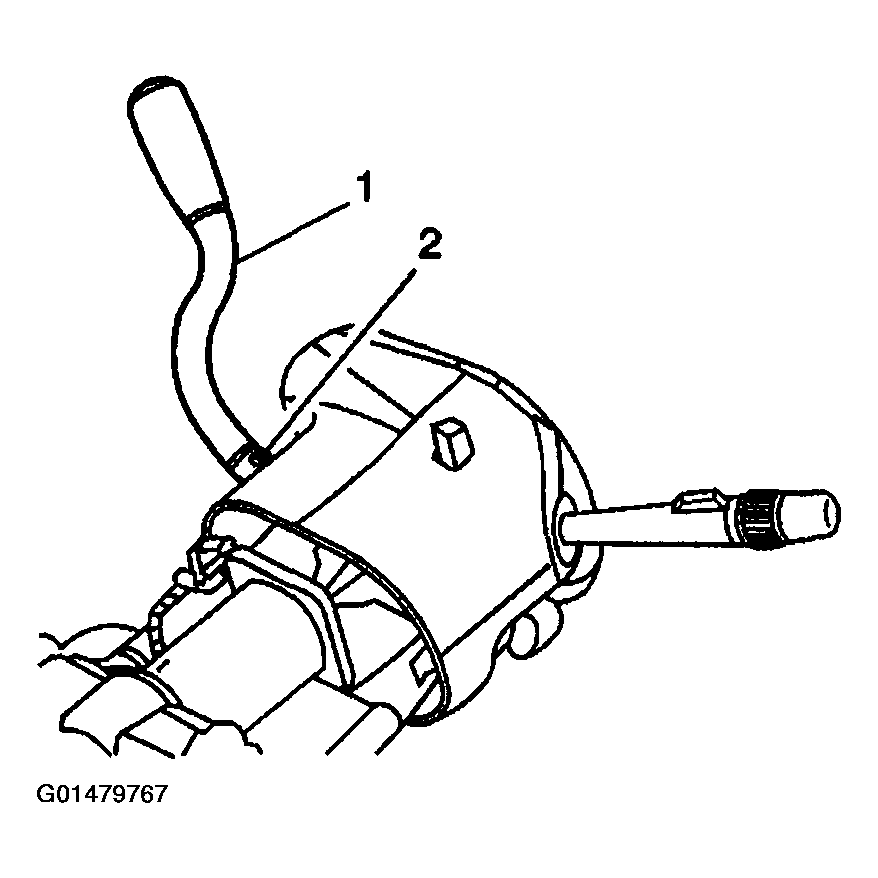

    Fig 1: Install Shift Lever & Screw
    G01479767Courtesy of GENERAL MOTORS CORP.
