Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the shift lever (1).

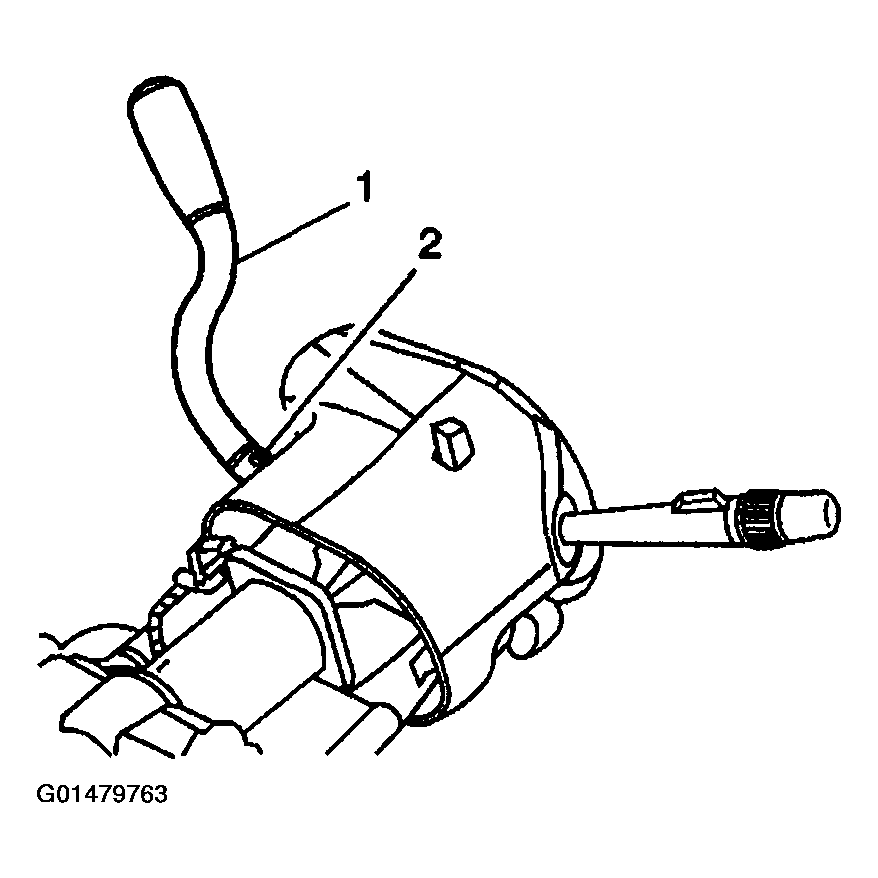

    Fig 1: Install Shift Lever
    G01479763Courtesy of GENERAL MOTORS CORP.
  2. Connect the shifter electrical connector.
  3. Install the wire straps to the harness.
  4. Install the harness retaining pin (4) to the instrument panel.

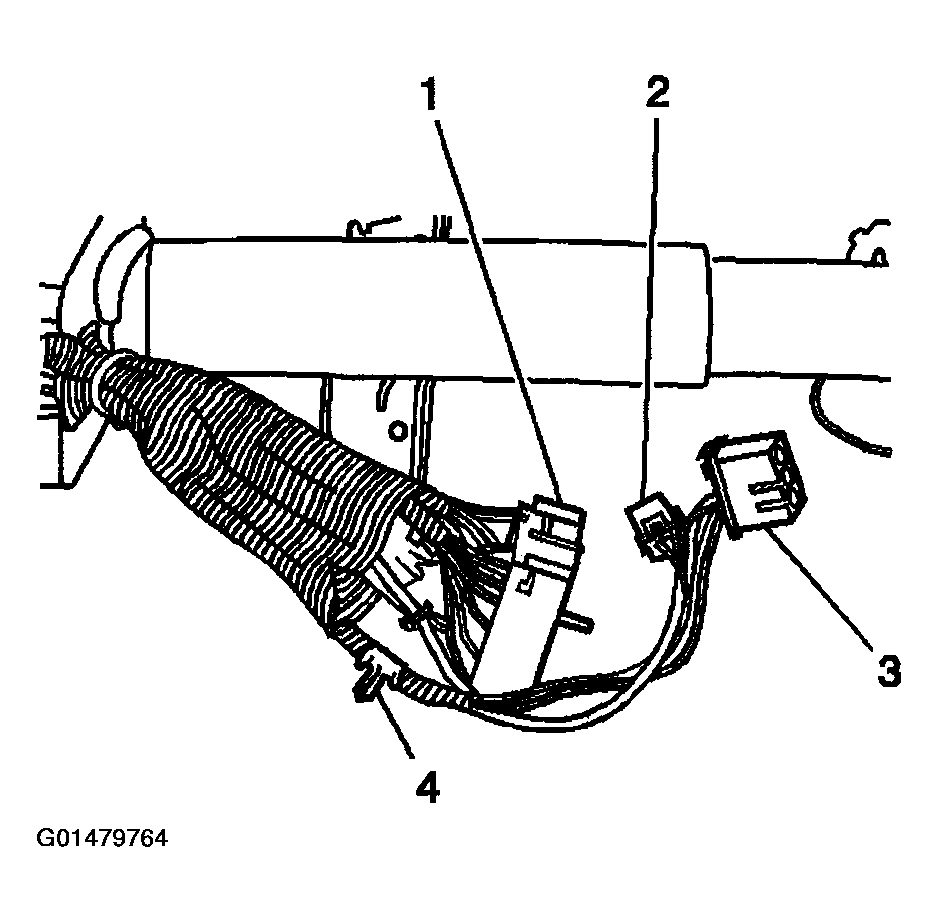

    Fig 2: Install Wiring Harness Retaining Pin & Shift Lever
    G01479764Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the knee bolster deflector bracket and nuts (1).

    Tighten

    Tighten the nuts to 9 N.m (80 lb in).

  6. Install the knee bolster. Refer to KNEE BOLSTER REPLACEMENT  .
  7. Install the TORX® head screw.

    Tighten

    Tighten the screw to 1.5 N.m (13 lb in).

  8. Roll the seal over the TORX® head screw.
  9. Install the lower column cover.
  10. Install the 2 TORX® head screws to the lower column cover.

    Tighten

    Tighten the screw to 3.5 N.m (31 lb in).

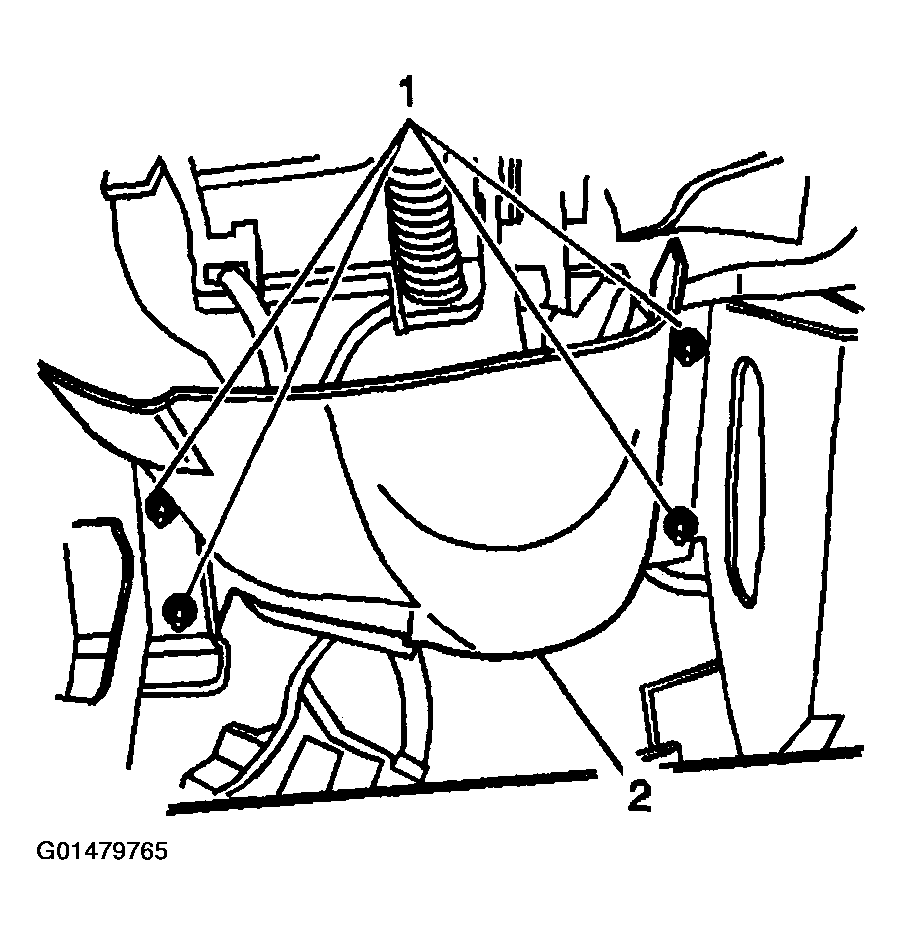

    Fig 3: Install Knee Bolster Deflector Bracket & Nuts
    G01479765Courtesy of GENERAL MOTORS CORP.
