Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the supplemental inflatable restraint (SIR) system. Refer to ZONE 3 .
  2. Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement .
  3. Turn the ignition lock cylinder to the START position.
  4. Using an awl, insert the tip into the access hole (1) of the ignition lock cylinder.
  5. Push down and hold the lock cylinder retaining pin.

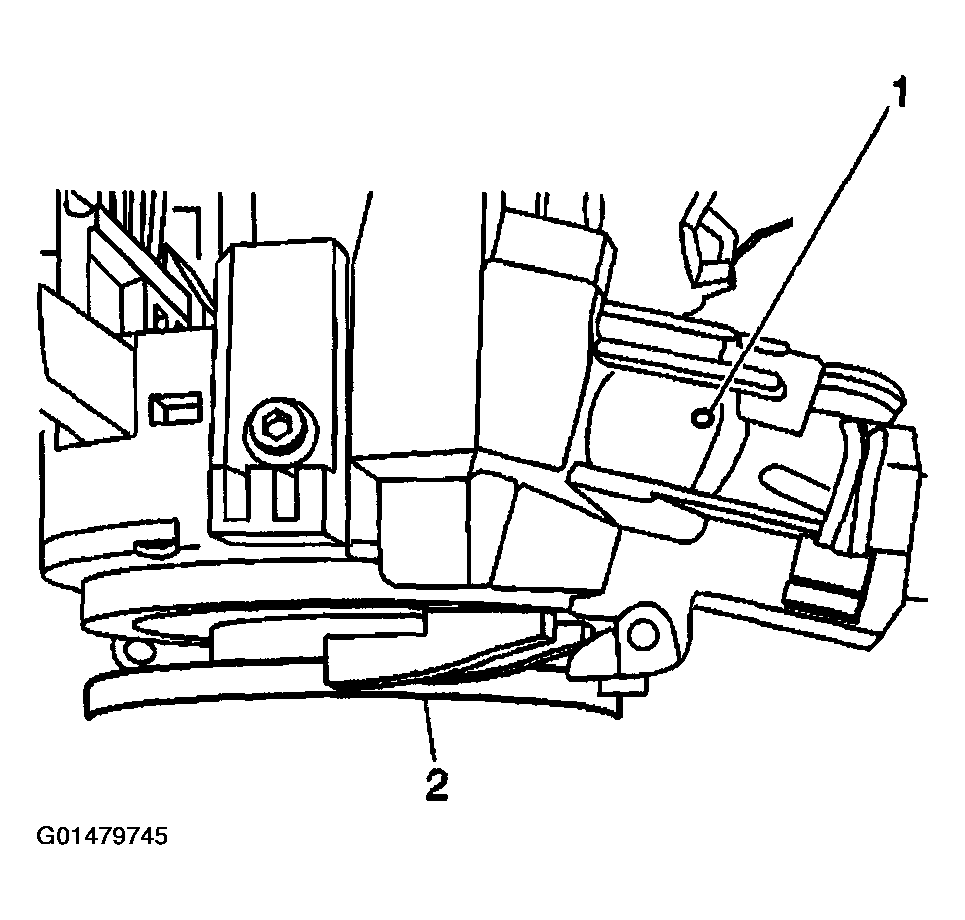

    Fig 1: Access Hole
    G01479745Courtesy of GENERAL MOTORS CORP.
  6. Release the lock cylinder to the RUN position.
  7. Pull the lock cylinder away from the steering column.

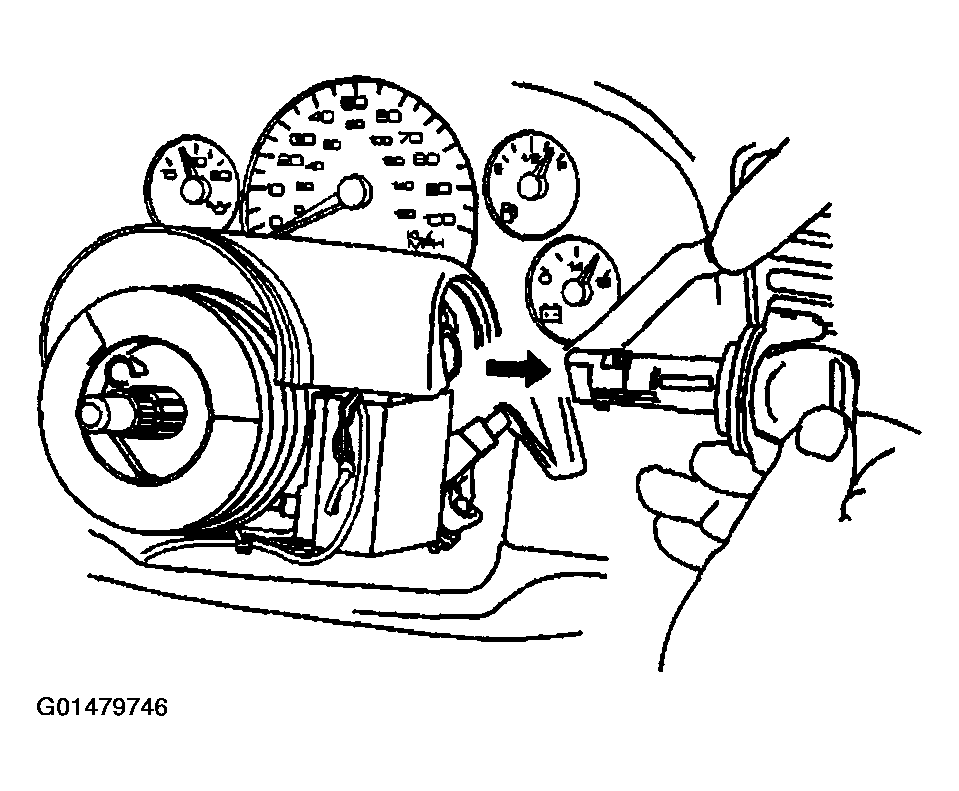

    Fig 2: Releasing Lock Cylinder To Run Position
    G01479746Courtesy of GENERAL MOTORS CORP.
