Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the ignition lock cylinder into the steering column using the following procedure:
    1. 1.1. Align the positioning locking tab slot on the ignition lock cylinder case assembly to the positioning tab on the ignition lock cylinder.
    2. 1.2. Push the lock cylinder in until the locking tab locks in the ignition lock cylinder case assembly.
  2. Install the steering column trim covers. Refer to Steering Column Trim Covers Replacement .
  3. Enable the SIR system. Refer to ZONE 3 .
  4. Perform the Passlock learn procedure. Refer to PROGRAMMING THEFT DETERRENT SYSTEM COMPONENTS  .

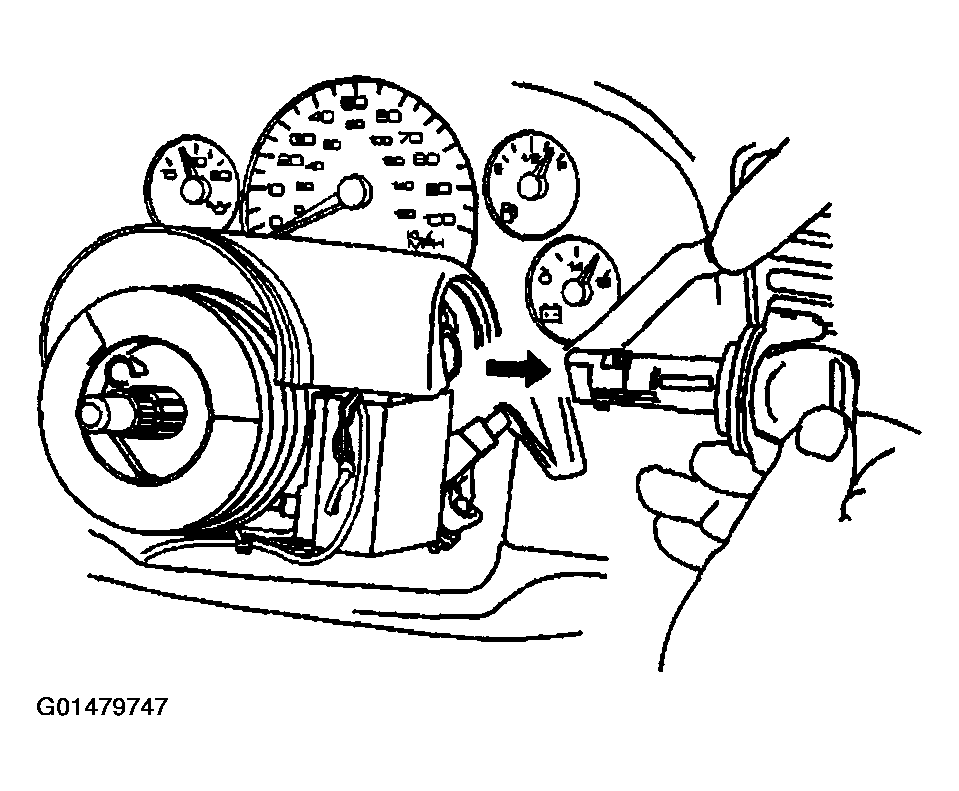

    Fig 1: Installing Lock Cylinder To Position
    G01479747Courtesy of GENERAL MOTORS CORP.
