Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lock bolt spring (3) into the steering column tilt head assembly (5).
  2. Position the cutout in the lock bolt assembly (4) at the 6 o'clock position.
  3. Install the lock bolt assembly (4) into the steering column tilt head assembly (5) until the lock bolt assembly (4) is flush with the steering column tilt head assembly (5).
  4. Push the lock bolt assembly (4) into the steering column tilt head assembly (5) until the lock bolt assembly (4) is flush with the steering column tilt head assembly (5).
  5. Align the ignition lock cylinder case (2) with the steering column tilt head assembly (5).
    NOTE: Refer to FASTENER NOTICE .
  6. Screw the 3 pan head tapping screws (1) into the ignition lock cylinder case (2).

    Tighten

    Tighten the 3 screws to 7 N.m (62 lb in).

  7. Install the ignition switch. Refer to Ignition Switch Replacement .
    IMPORTANT: The abrasion sleeve must be installed back onto the steering column wire harness assembly. The ignition lock cylinder case wires and connector must be hanging out of the middle of the abrasion sleeve.
  8. Install the steering column tilt head components. Refer to Steering Column Tilt Head Housing Replacement (Tilt)  or Steering Column Tilt Head Housing Replacement (Standard) .
  9. Enable the SIR system. Refer to ZONE 3 .

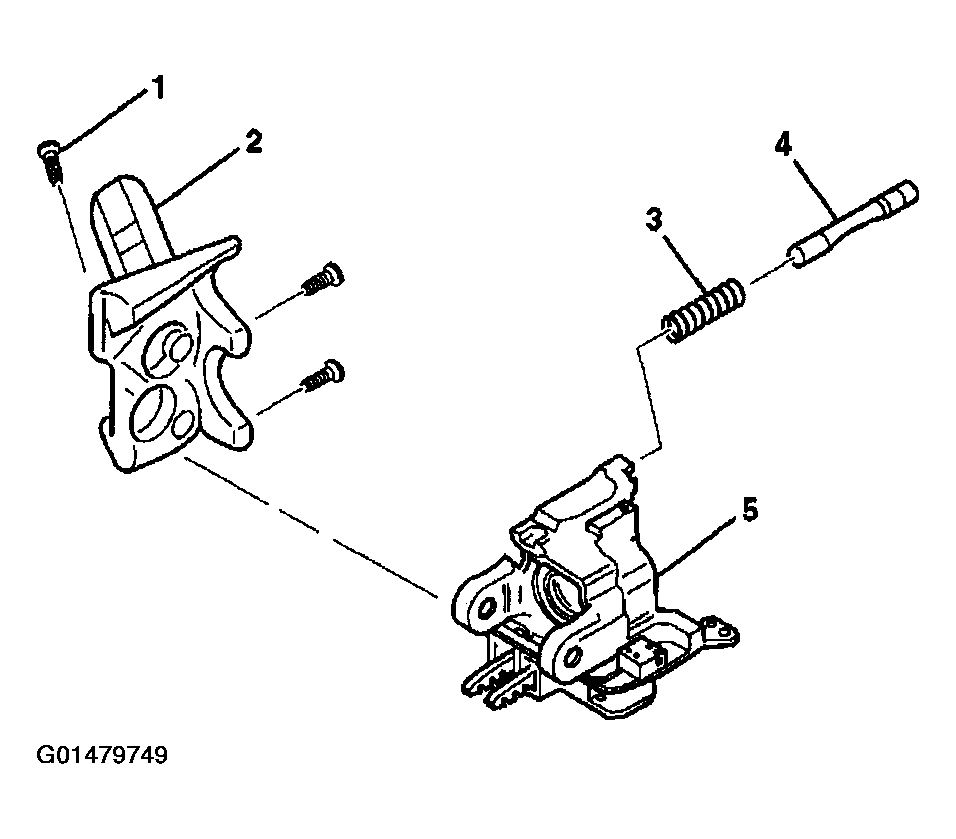

    Fig 1: Pan Head Tapping Screws, Ignition Lock Cylinder Case, Lock Bolt Assembly & Spring & Steering Column Tilt Head Assembly
    G01479749Courtesy of GENERAL MOTORS CORP.
