Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SIR CAUTION .
  1. Disable the SIR system. Refer to ZONE 3 .
    IMPORTANT: The abrasion sleeve located on the steering column wire harness assembly must be reinstalled. Make note of what connector, ignition lock cylinder case, is coming out of the middle of the abrasion sleeve for installation purposes.

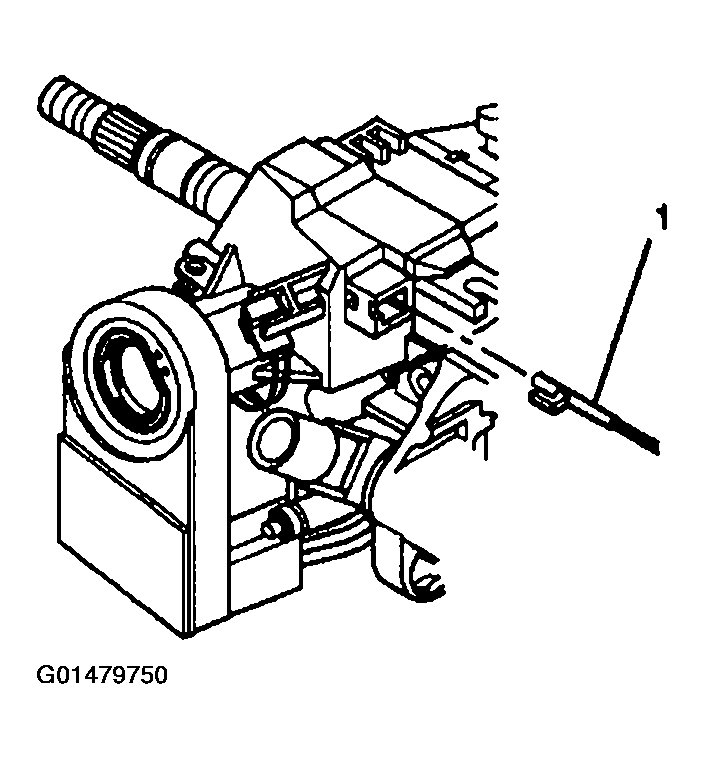

    Fig 1: Remove Park Lock Cable Assembly
    G01479750Courtesy of GENERAL MOTORS CORP.
  2. Remove the steering column tilt head assembly. Refer to Steering Column Tilt Head Housing Replacement (Tilt)  or Steering Column Tilt Head Housing Replacement (Standard) .
  3. Remove the ignition switch. Refer to Ignition Switch Replacement .
  4. Remove the park lock cable assembly (1) from the ignition lock cylinder case in the following way:
    1. 4.1. Place the steering column lock cylinder set into the OFF position.
    2. 4.2. Place the shift lever clevis into the PARK position.
    3. 4.3. Use a small blade to push against the locking tab on the end of the park lock cable assembly (1)
    4. 4.4. Disconnect the park lock cable assembly (1) from the ignition lock cylinder case.
  5. Remove the 3 TORX® screws (2) from the ignition lock cylinder case (1).
  6. Remove the ignition lock cylinder case (1) from the steering column tilt head assembly.

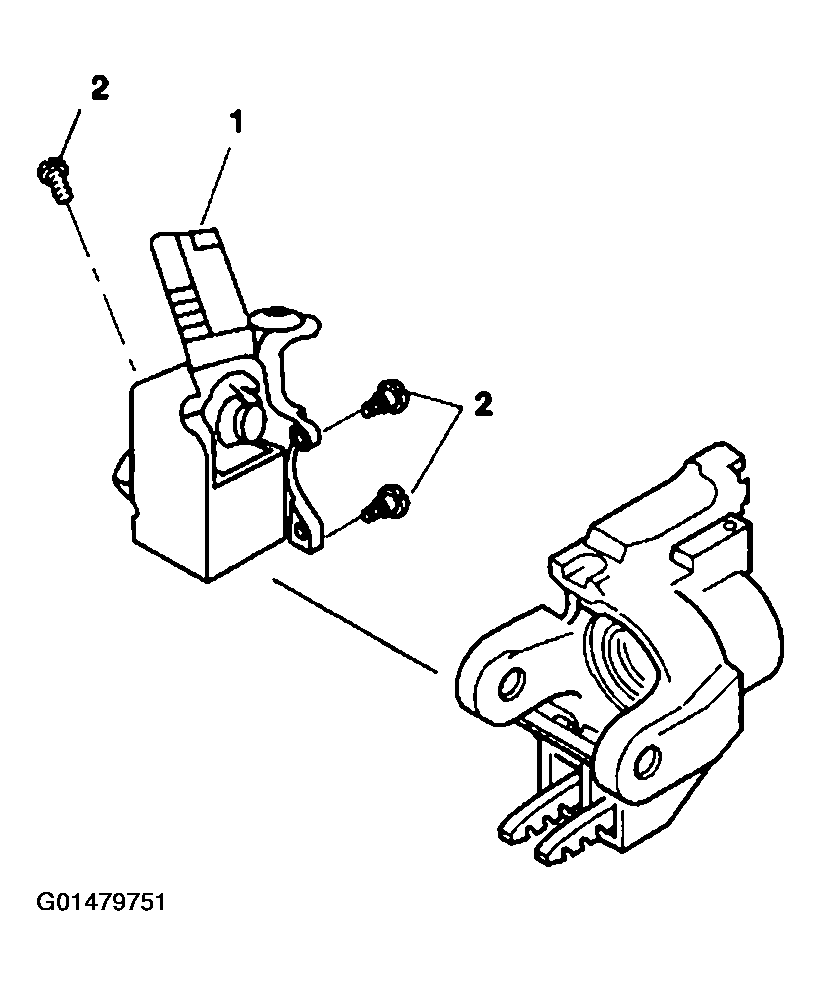

    Fig 2: Remove Screws From Ignition Lock Cylinder Case
    G01479751Courtesy of GENERAL MOTORS CORP.
