Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the ignition cylinder lock case (1) with the steering column tilt head assembly.
    NOTE: Refer to FASTENER NOTICE .
  2. Screw the 3 TORX® screws (2) into the ignition lock cylinder case (1).

    Tighten

    Tighten the screws to 7 N.m (62 lb in)

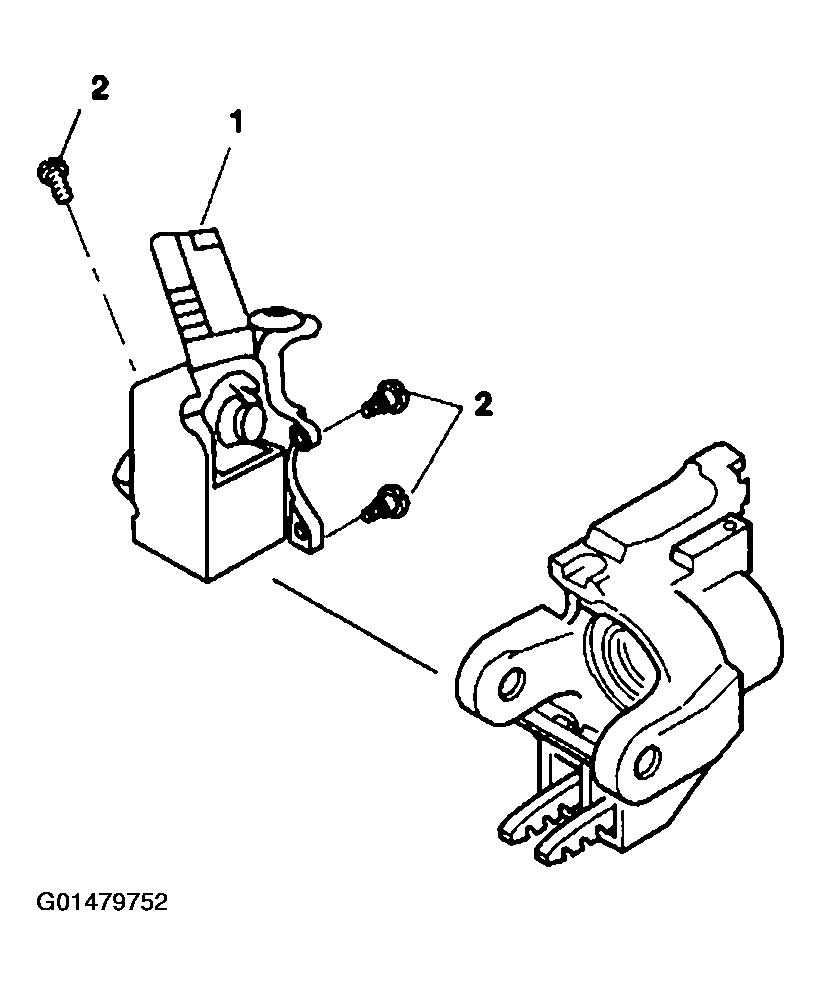

    Fig 1: Install Screws From Ignition Lock Cylinder Case
    G01479752Courtesy of GENERAL MOTORS CORP.
  3. Place steering column lock cylinder set into the OFF position.
  4. Place the shift lever clevis into the PARK position.
  5. Press the locking tab on the end of the park lock cable assembly (1) into the slot in the ignition lock cylinder case.
  6. Install the ignition switch. Refer to Ignition Switch Replacement .
    IMPORTANT: The abrasion sleeve must be installed back onto the steering column wire harness assembly. The ignition lock cylinder case wires and connector must be hanging out of the middle of the abrasion sleeve.
  7. Install the steering column tilt head assembly. Refer to Steering Column Tilt Head Housing Replacement (Tilt)  or Steering Column Tilt Head Housing Replacement (Standard) .
  8. Enable the SIR system. Refer to ZONE 3 .

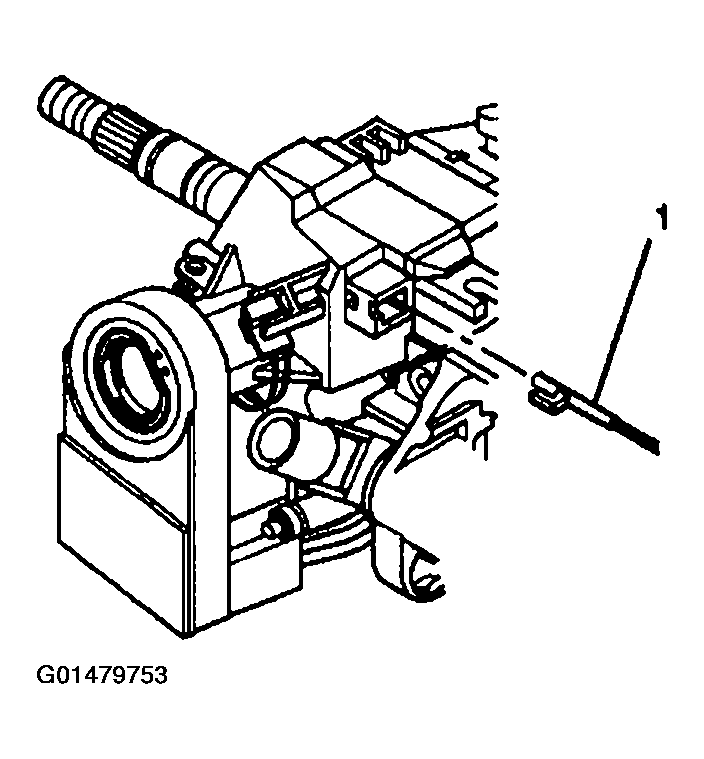

    Fig 2: Install Park Lock Cable Assembly
    G01479753Courtesy of GENERAL MOTORS CORP.
