Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SERVICING THE SIR SYSTEM CAUTION .
  1. Disable the SIR system. Refer to ZONE 3 .
  2. Remove the inflatable restraint steering wheel module. Refer to SIR COIL ASSEMBLY .
  3. Remove the horn plunger from the steering column by pressing inward to the stop and rotating the horn plunger 90 degrees.

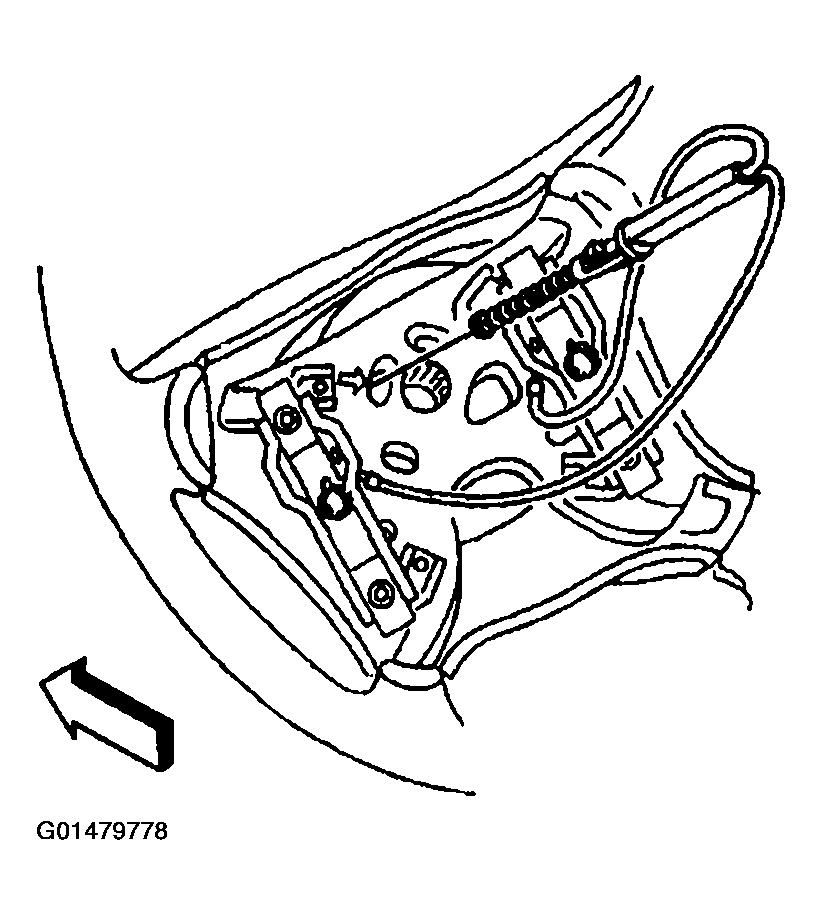

    Fig 1: Removing Horn Plunger From Steering Column
    G01479778Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the captured screws (1,4) to the horn contact plate (2) from the steering wheel (3).
  5. Remove the horn switch (2) from the steering wheel (3).

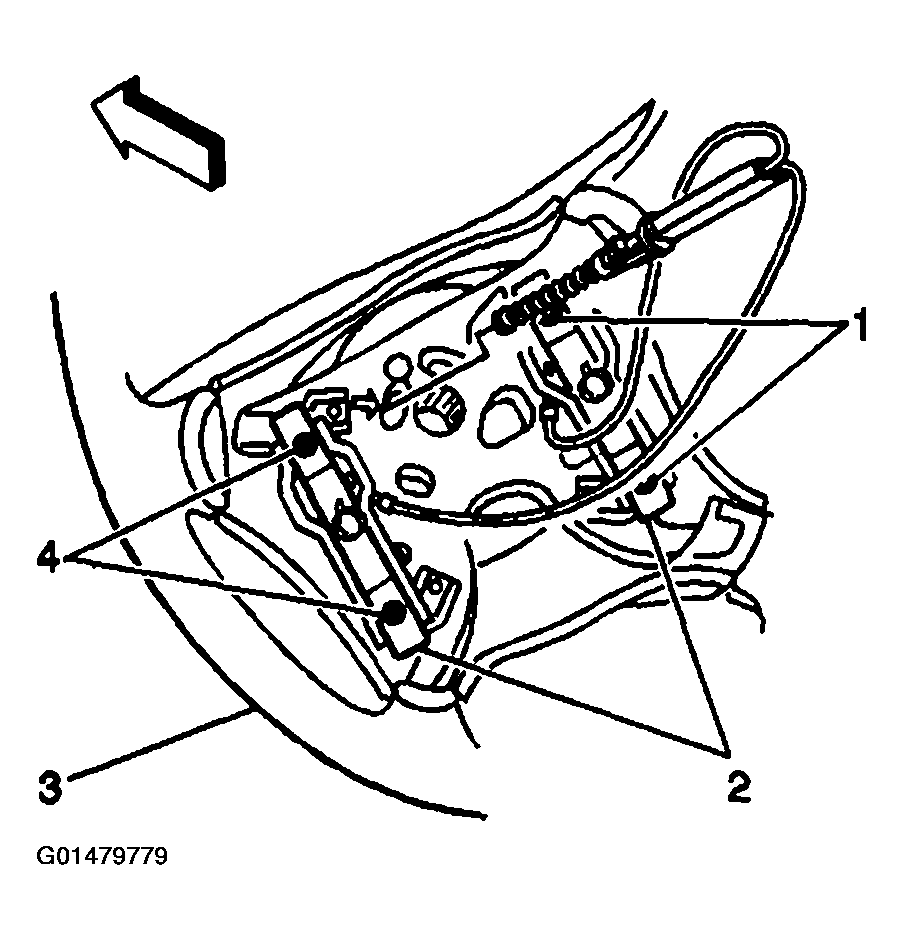

    Fig 2: Disconnect Captured Screws To Horn Contact Plate From Steering Wheel
    G01479779Courtesy of GENERAL MOTORS CORP.
