Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle. Support the vehicle with suitable safety stands. Refer to JACKING AND LIFTING .
Remove the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.

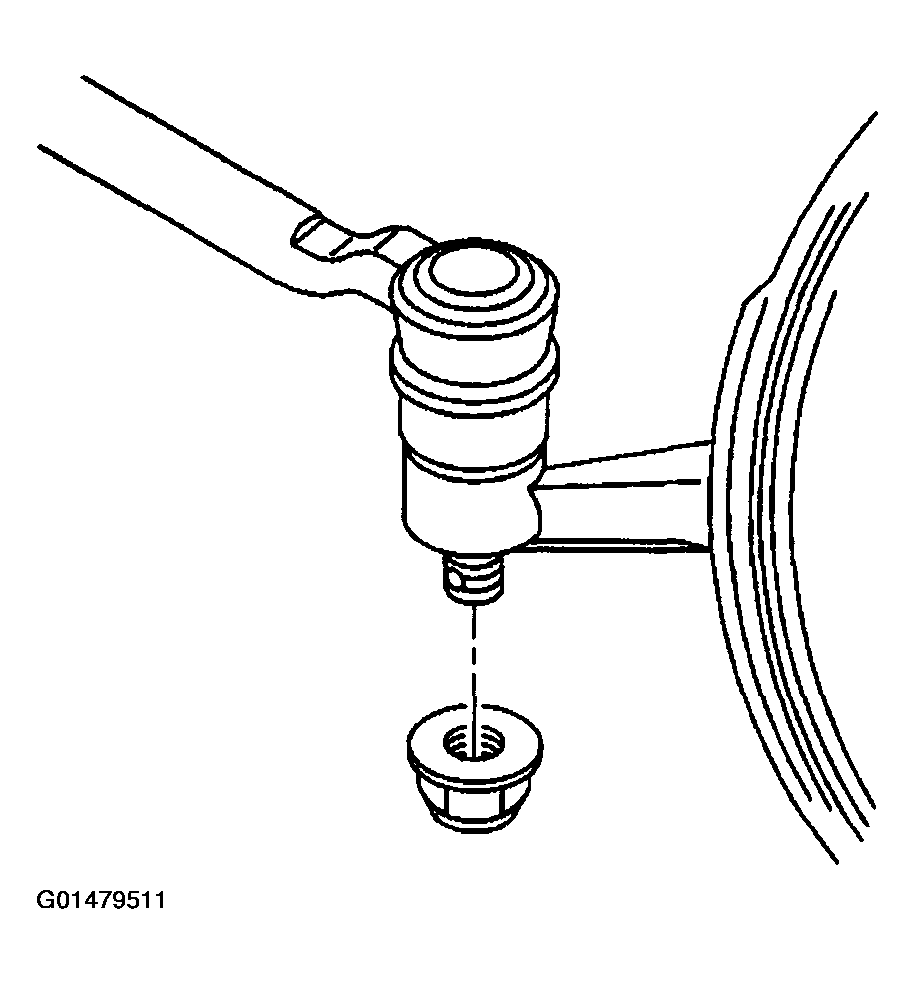

Remove the torque prevailing nut from outer tie rod stud.

Fig 1: Remove Torque Prevailing Nut From Outer Tie Rod Stud

Courtesy of GENERAL MOTORS CORP.

Loosen the jam nut (2) on the inner tie rod assembly (1).

Fig 2: Loosening Jam Nut On Inner Tie Rod Assembly
Courtesy of GENERAL MOTORS CORP.

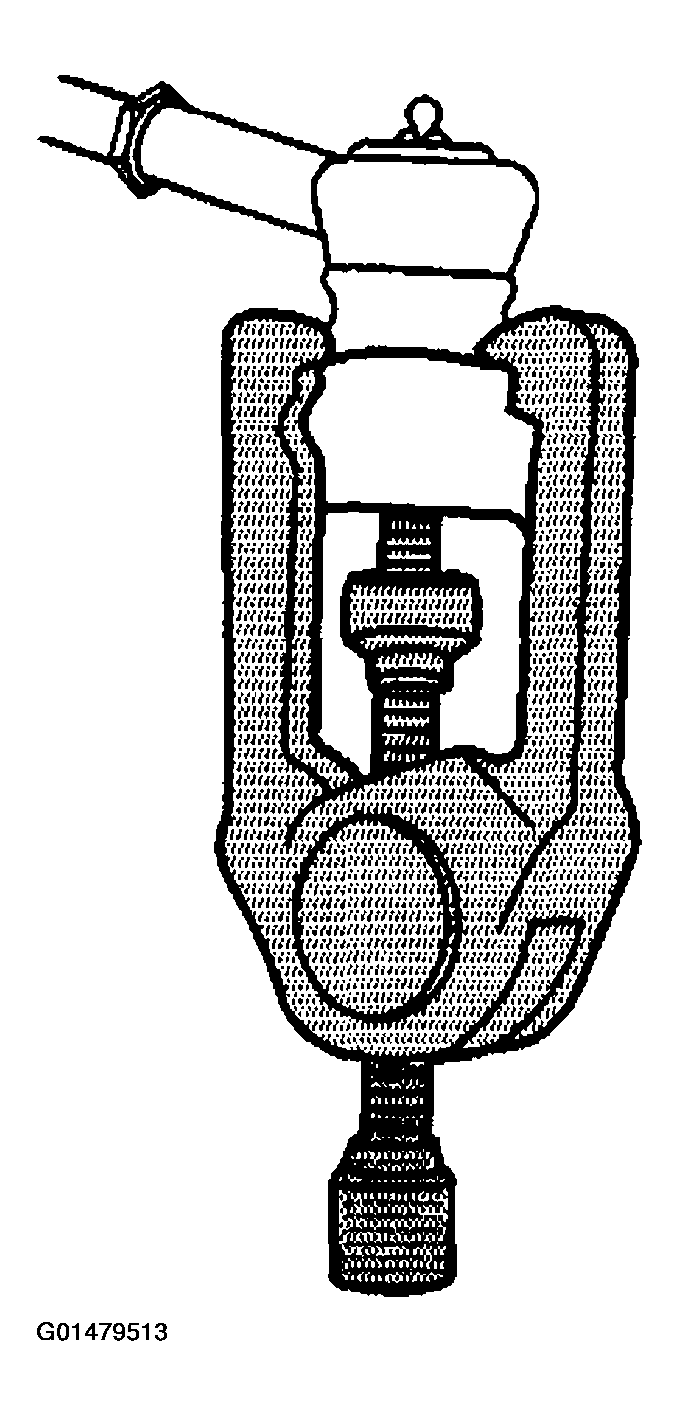

Remove the outer tie rod assembly (2) from the steering knuckle (1) using J 24319-01.

Fig 3: Removing Outer Tie Rod Assembly From Steering Knuckle
Courtesy of GENERAL MOTORS CORP.
Remove the outer tie rod assembly (3) from the inner tie rod assembly (1).

Fig 4: Removing Outer Tie Rod Assembly From Inner Tie Rod Assembly
Courtesy of GENERAL MOTORS CORP.
