Assembly Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Grease the stub shaft seal with the special grease supplied with the new stub shaft housing.
  2. Install the new stub shaft housing O-rings (1) (2).
  3. Install the stub shaft housing (3) onto the steering gear.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the stub shaft housing bolts (4) into the stub shaft housing (34).

    Tighten

    Tighten the bolts to 55.0-70.0 N.m (40.5-51.6 lb ft).

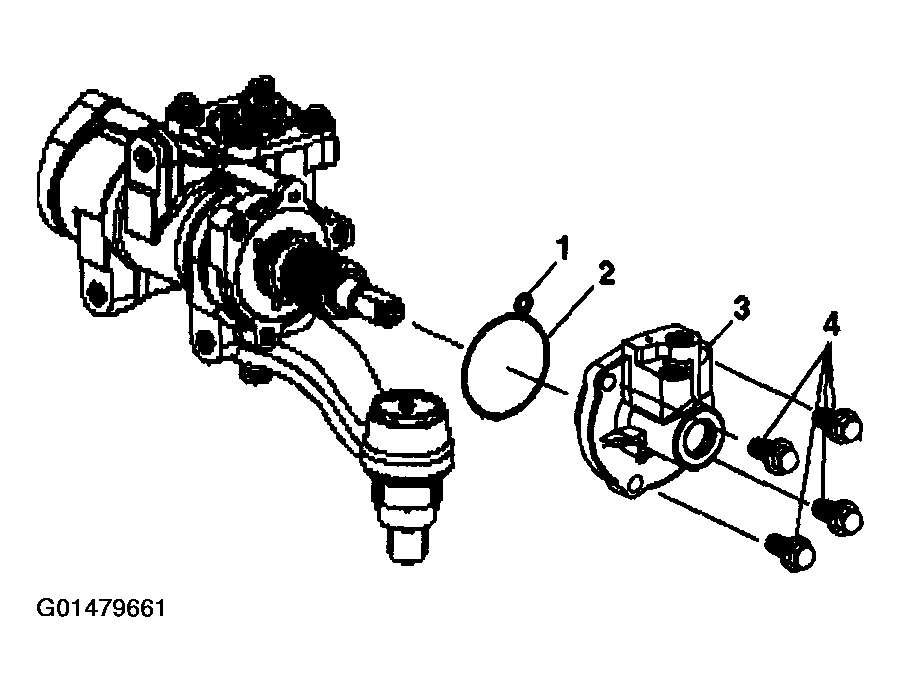

Fig 1: Stub Shaft Housing, Bolts & O-Rings
G01479661Courtesy of GENERAL MOTORS CORP.
