Disassembly Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rotate the stub shaft back and forth in order to drain the power steering fluid.
  2. Remove the coupling shield retainer and the lock nut from the steering gear housing using J 43435  and a torque wrench.

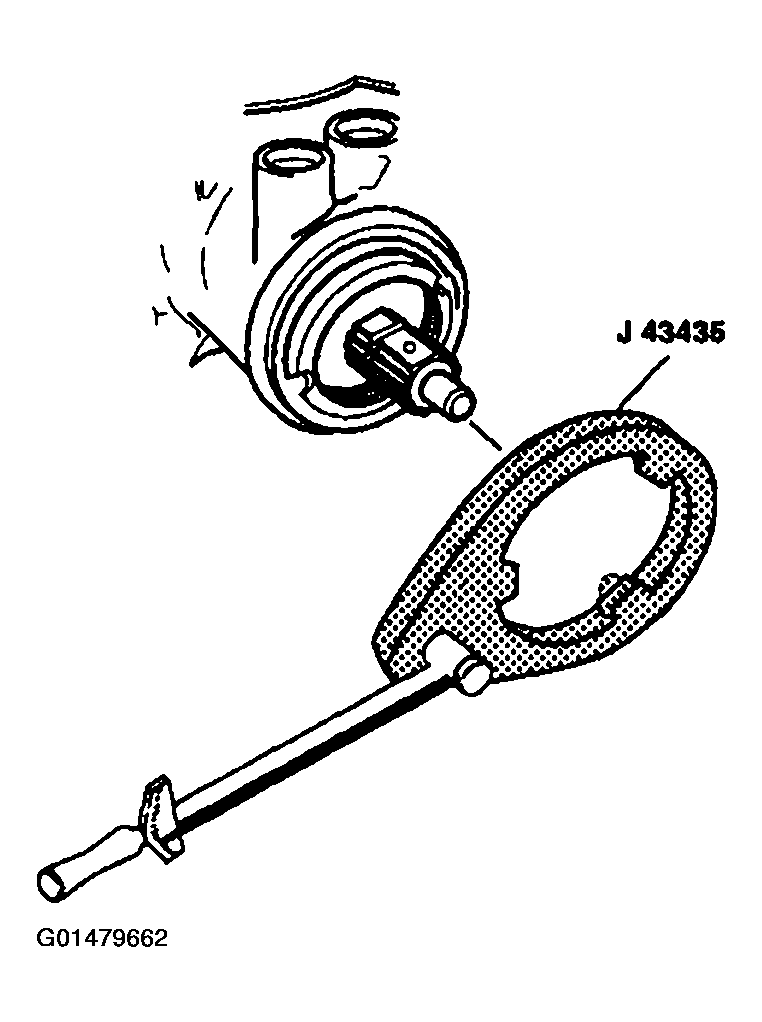

    3. Fig 1: Remove Coupling Shield Retainer & Lock Nut Using J 43435
    G01479662Courtesy of GENERAL MOTORS CORP.
  3. Remove the adjuster nut assembly (2) from the steering gear housing (1) using J 42882  .

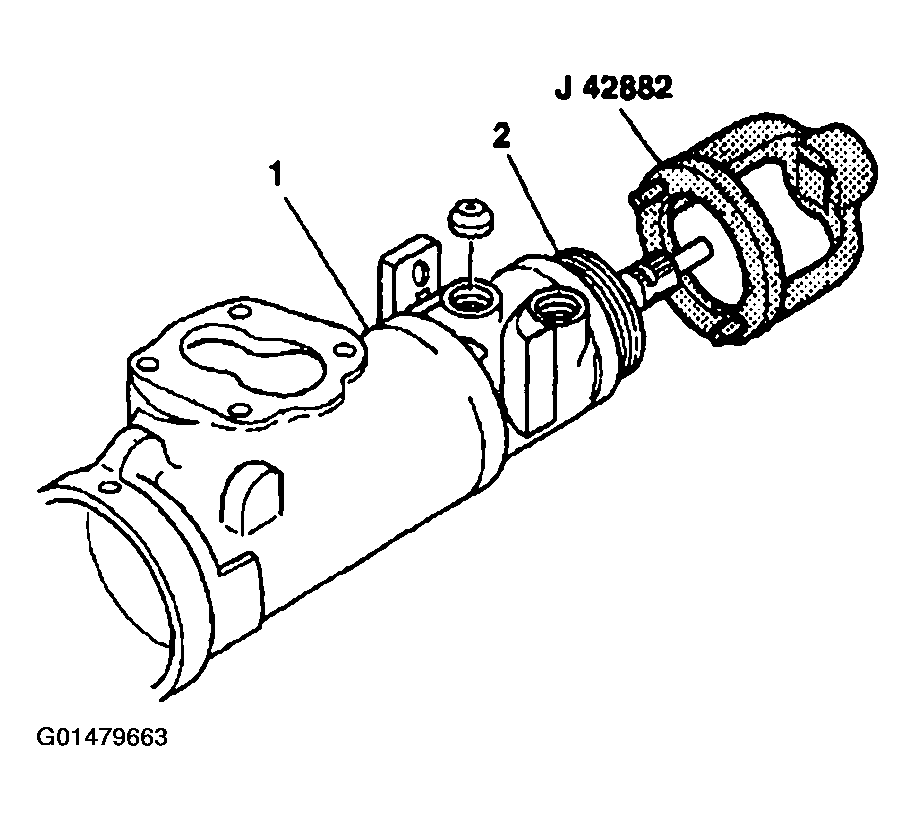

    Fig 2: Remove Adjuster Nut Assembly From Steering Gear Housing Using 42882
    G01479663Courtesy of GENERAL MOTORS CORP.
  4. Remove the thrust support assembly (2) from the steering gear housing (1).
  5. Remove the O-ring seal (3) from the thrust support assembly (2).

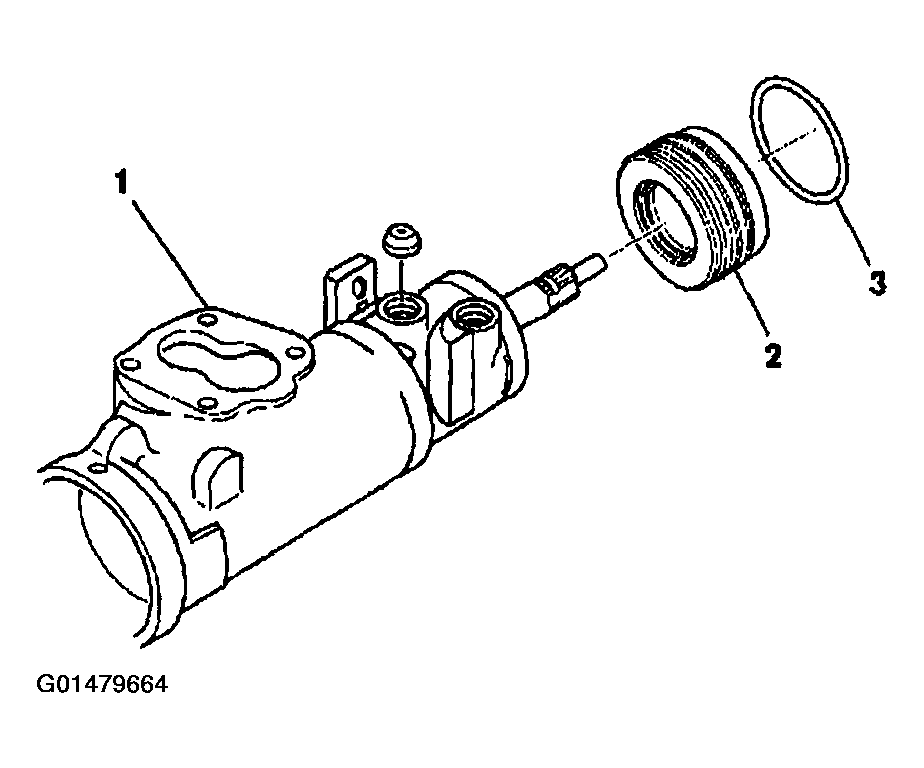

    Fig 3: Thrust Support Assembly, Steering Gearing Housing & O-Ring Seal
    G01479664Courtesy of GENERAL MOTORS CORP.
