Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place a drain pan under the vehicle.
  2. Remove the power steering pulley. Refer to Power Steering Pulley Replacement .
  3. Remove the nut (1) and clamp (3) retaining the filler neck (1) to the power steering pump, if equipped.

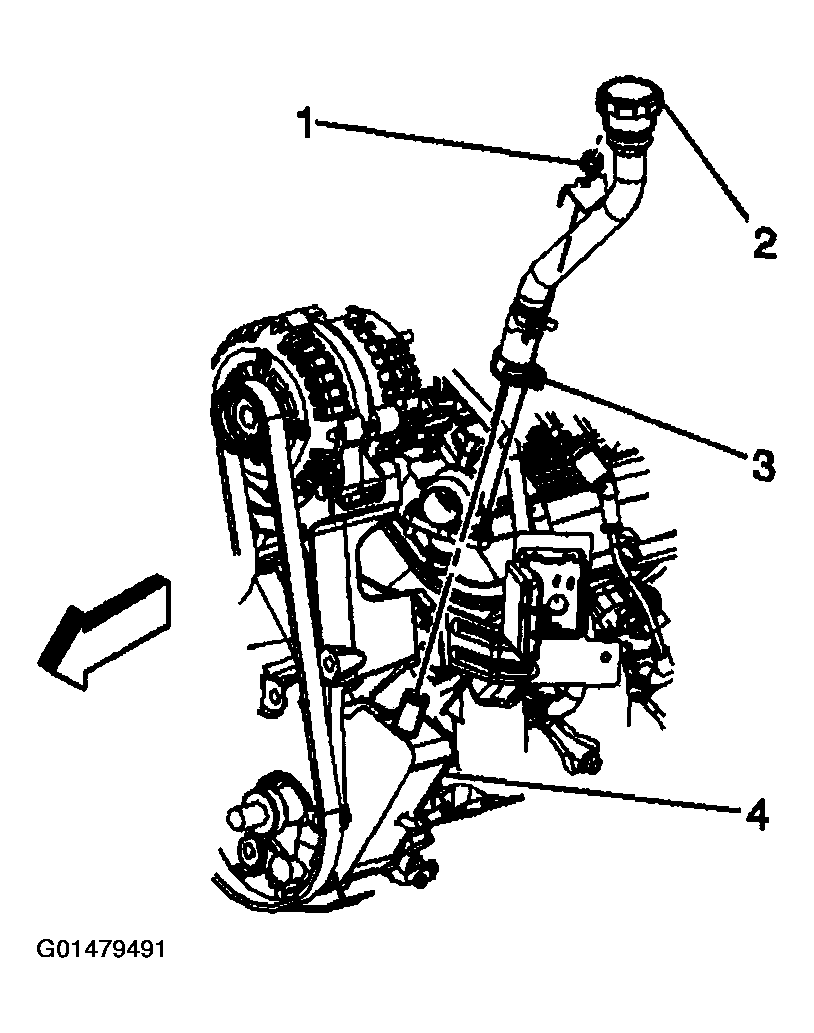

    4. Fig 1: Remove Filler Neck Retaining Clamp & Nut
    G01479491Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolts (2) from the front of the pump.
  5. Remove the bolts retaining the power steering mounting bracket.

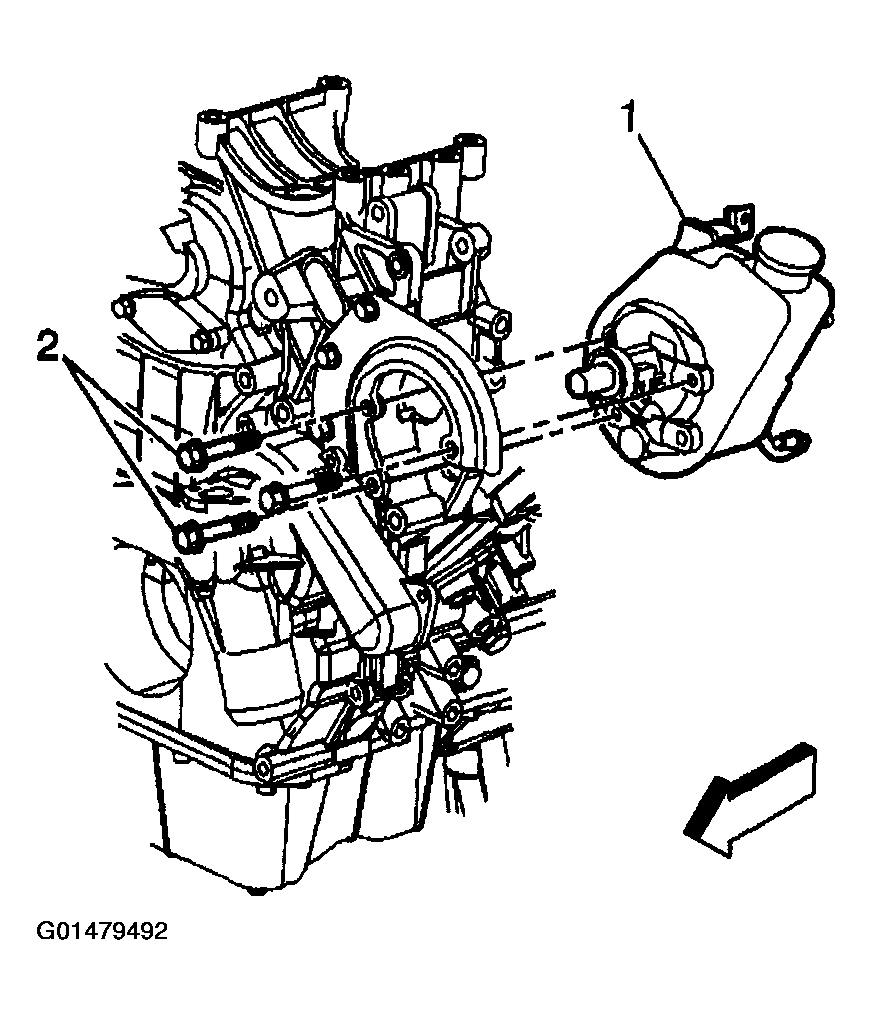

    6. Fig 2: Remove Bolts From Front Of Pump
    G01479492Courtesy of GENERAL MOTORS CORP.
  6. Remove the bolts (1) from the rear of the pump.

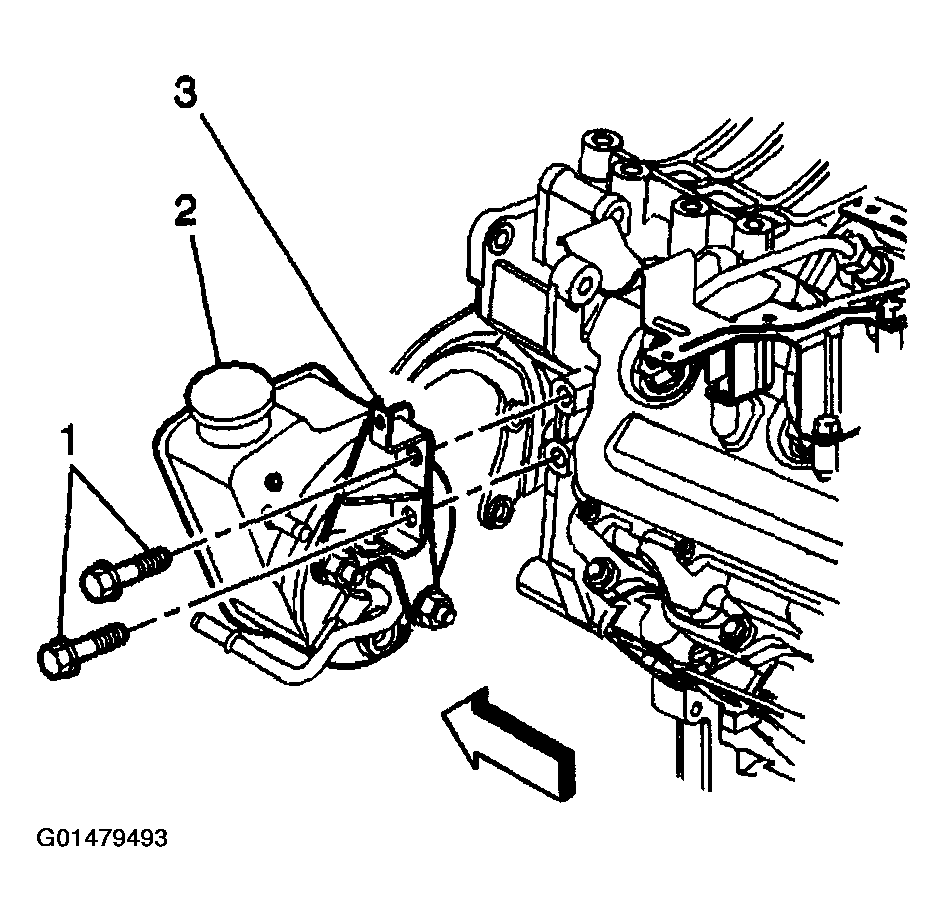

    Fig 3: Remove Bolts From Rear Of Pump
    G01479493Courtesy of GENERAL MOTORS CORP.
  7. Remove the power steering return hoses (2,4) from the power steering pump.

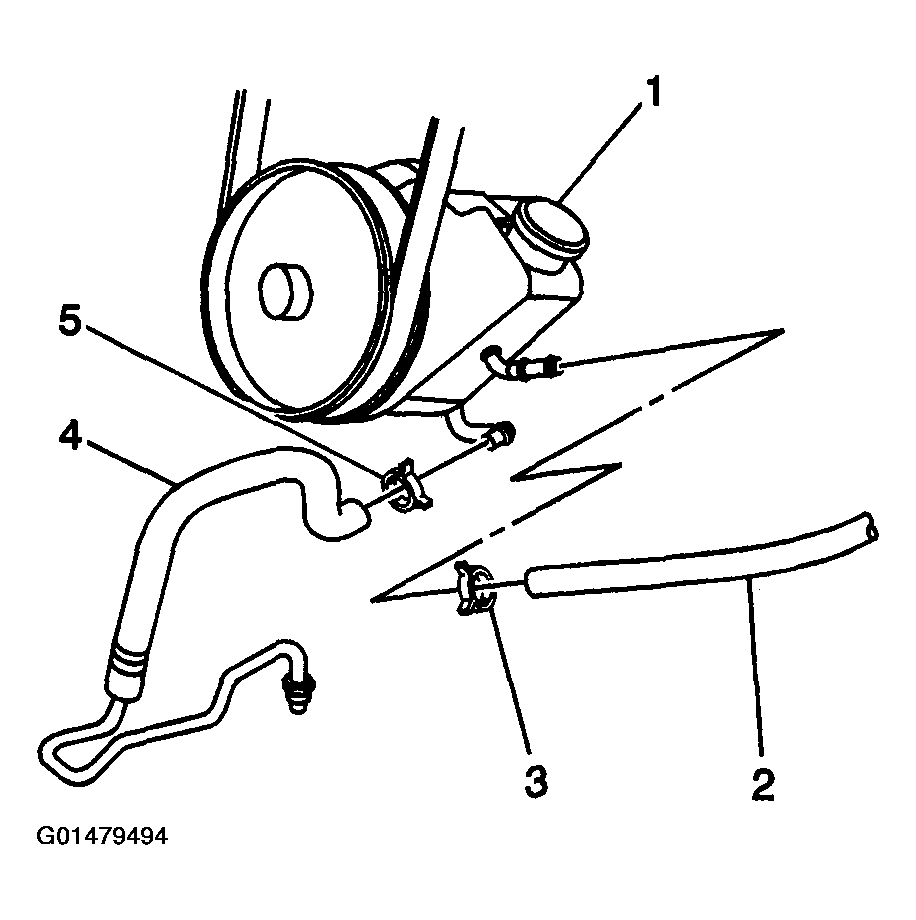

    Fig 4: Remove Power Steering Return Hoses
    G01479494Courtesy of GENERAL MOTORS CORP.
  8. Remove the power steering pressure hoses (2) from the power steering pump.
  9. Remove the pump from the vehicle.
  10. Remove the rear bracket from the power steering pump.

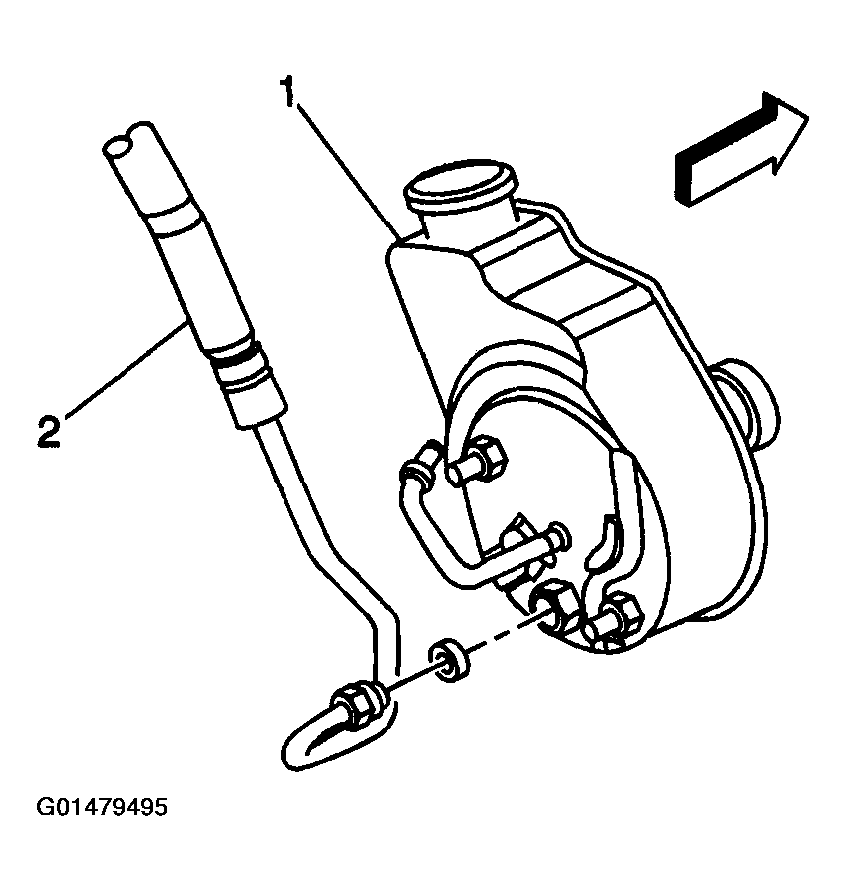

Fig 5: Remove Power Steering Pressure Hoses
G01479495Courtesy of GENERAL MOTORS CORP.
