Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place a drain pan under the vehicle.
  2. Remove the power steering pulley. Refer to Power Steering Pulley Replacement .
  3. Remove the bolt retaining the battery junction block from the power steering bracket.

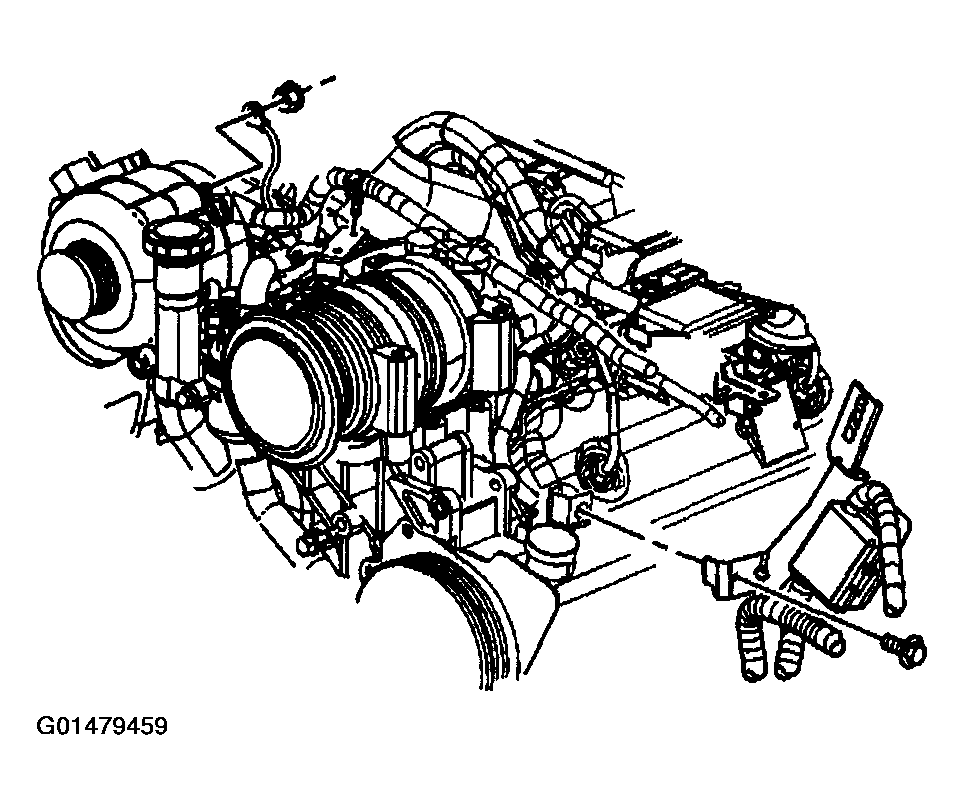

    Fig 1: Remove Battery Junction Block Retaining Bolt
    G01479459Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolts (1) from the rear of the pump.

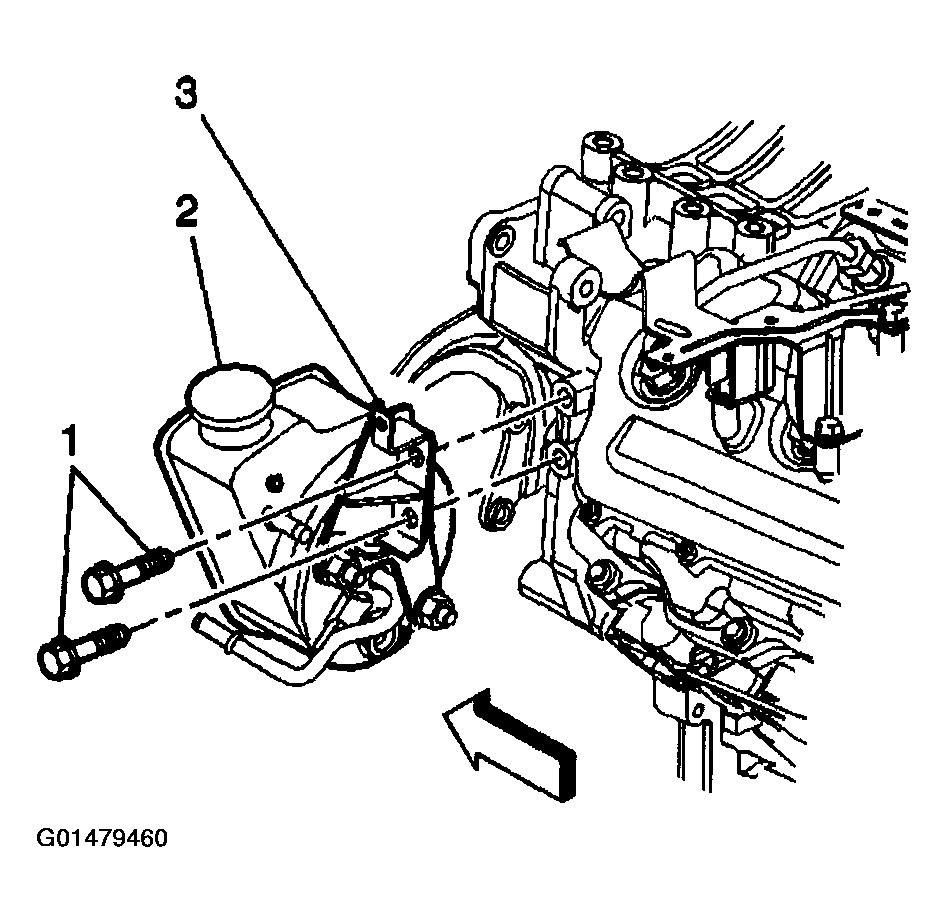

    5. Fig 2: Remove Rear Bolts From Pump
    G01479460Courtesy of GENERAL MOTORS CORP.
  5. Remove the bolts (2) from the front of the pump.

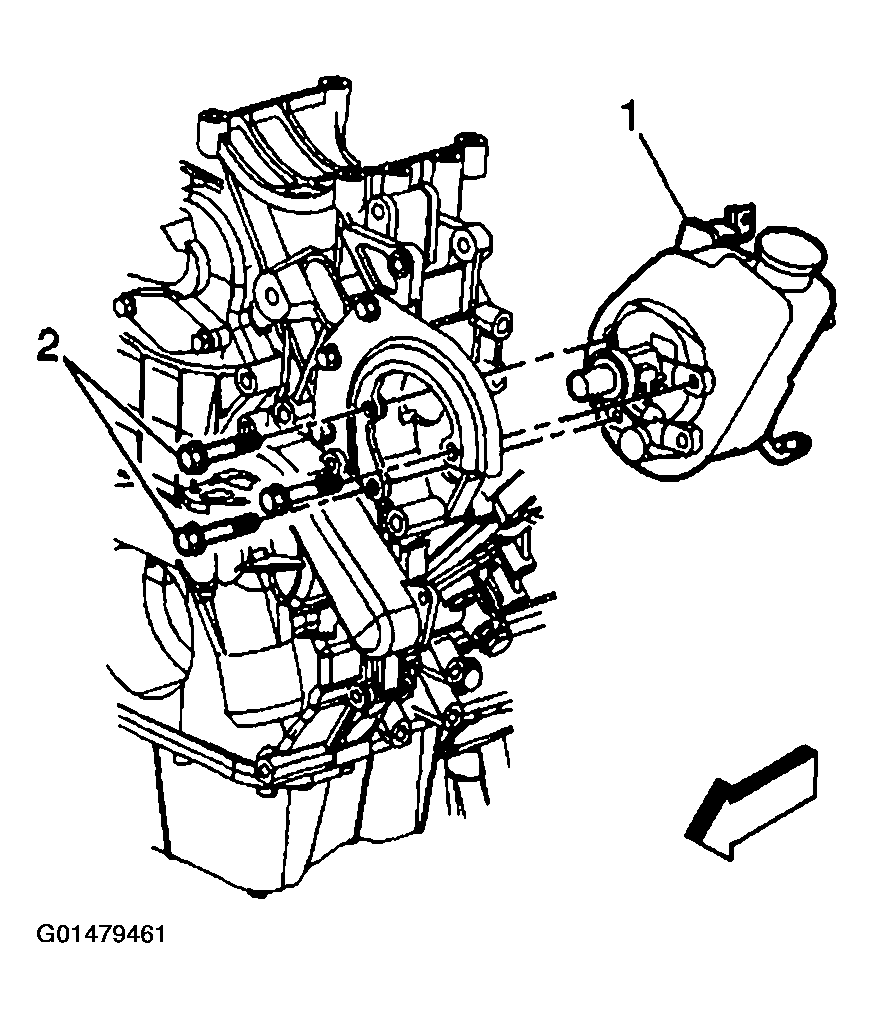

    Fig 3: Remove Bolts From Front Of Pump
    G01479461Courtesy of GENERAL MOTORS CORP.
  6. Remove the power steering pump mounting bracket retaining bolts to gain access to the power steering hoses.
  7. Remove the power steering return hoses (2,4) from the power steering pump.

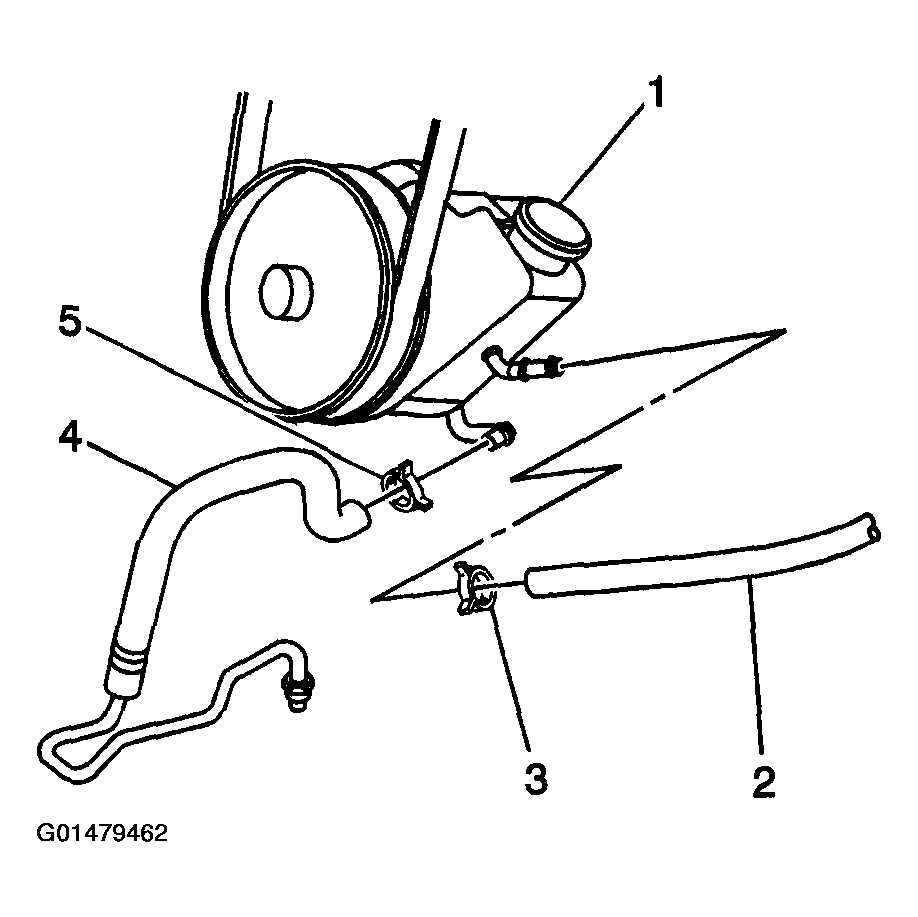

    Fig 4: Remove Power Steering Return Hoses
    G01479462Courtesy of GENERAL MOTORS CORP.
  8. Remove the power steering pressure hose (2) from the power steering pump.
  9. Remove the power steering pump from the vehicle.
  10. Remove the rear bracket from the power steering pump.

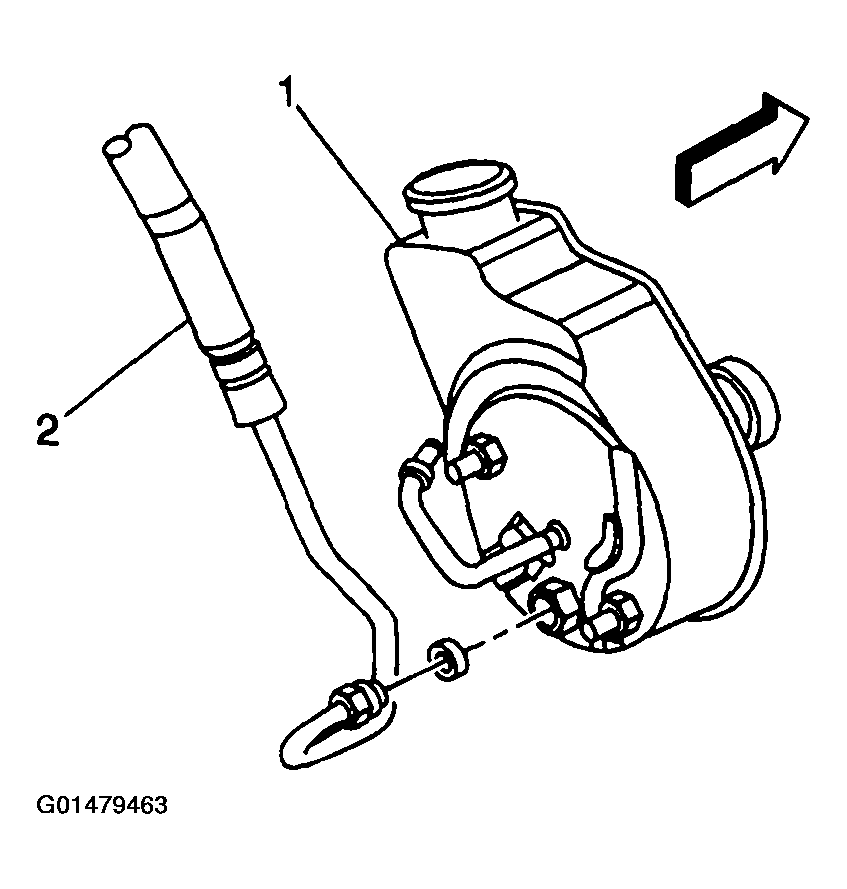

    Fig 5: Remove Power Steering Pressure Hose
    G01479463Courtesy of GENERAL MOTORS CORP.
