Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE .

Install the rear bracket to the power steering pump.
Tighten

Tighten the rear bracket retaining nuts to 50 N.m (37 lb ft).
Install the power steering return hoses and retaining clamps (3,5) to the power steering pump.

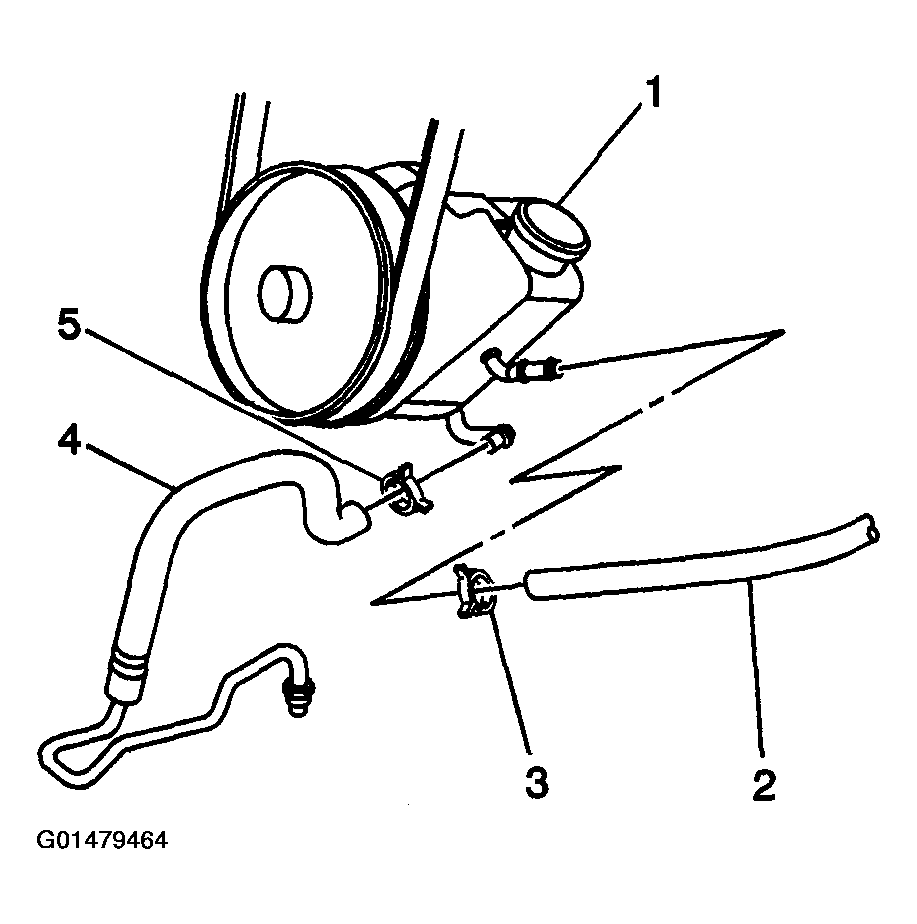

Fig 1: Install Power Steering Return Hoses & Retaining Clamps
Courtesy of GENERAL MOTORS CORP.
Install the power steering pressure hose (2) to the power steering pump.
Tighten

Tighten the fitting to 28 N.m (20 lb ft).

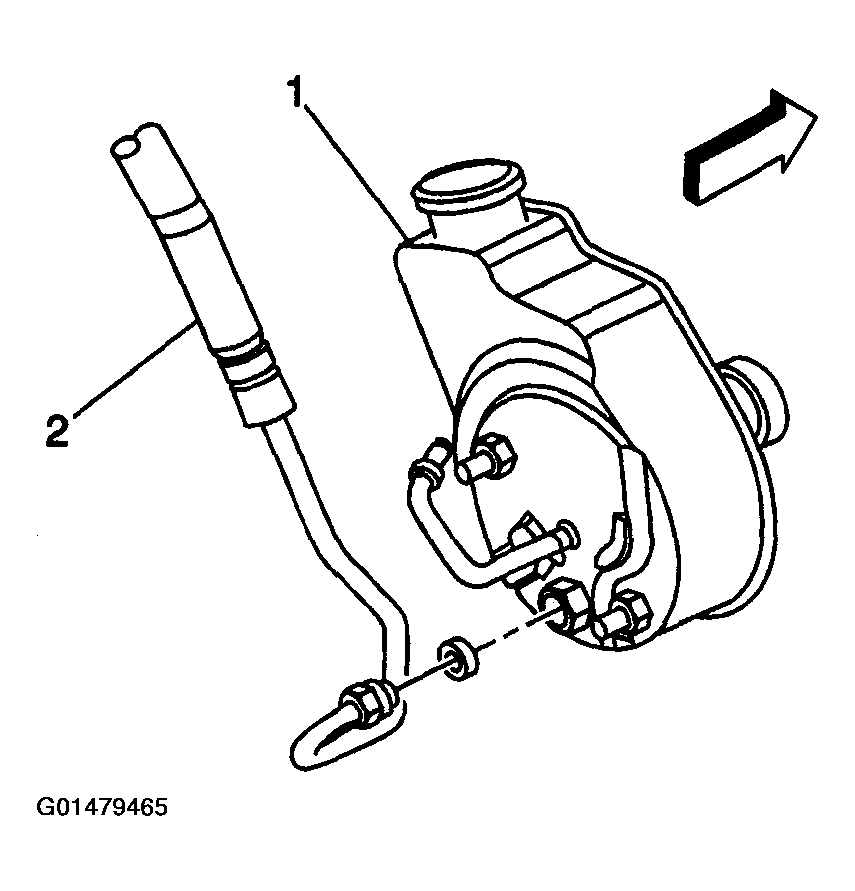

Fig 2: Install Power Steering Pressure Hose

Courtesy of GENERAL MOTORS CORP.

Install the bolts (1) to the rear of the power steering pump.
Tighten

Tighten the rear bolts to 50 N.m (37 lb ft).

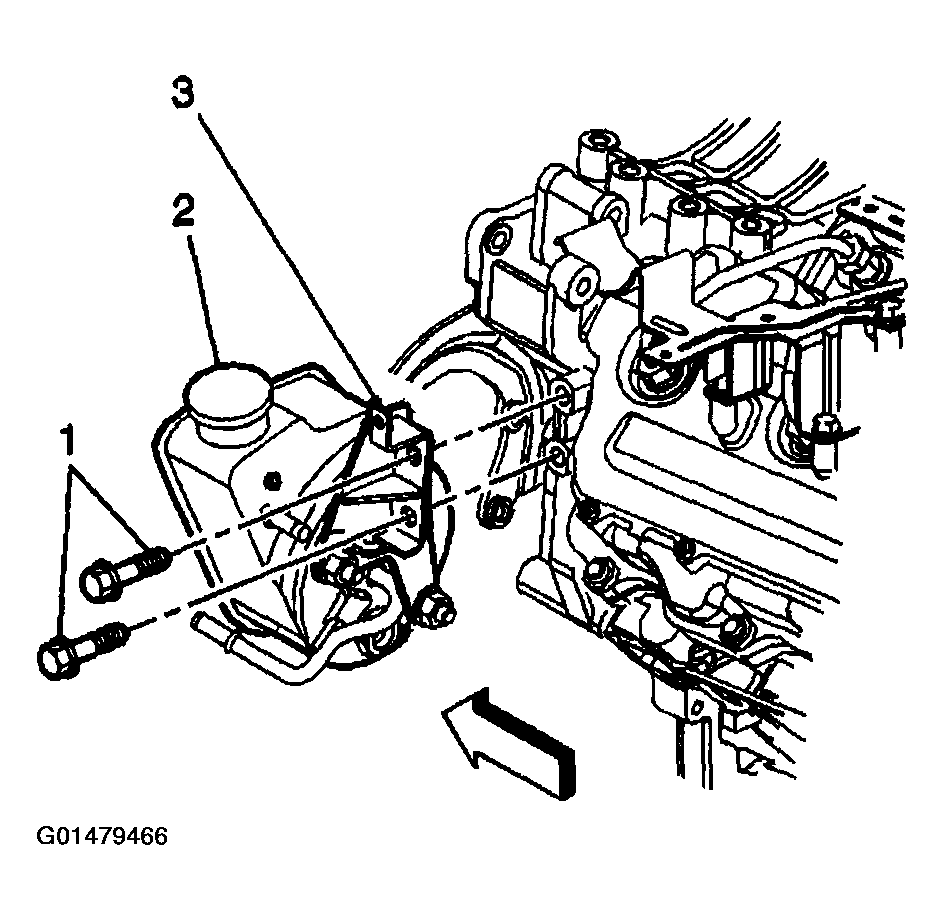

Fig 3: Install Bolts To Rear Of Power Steering Pump

Courtesy of GENERAL MOTORS CORP.

Install the power steering pump mounting bracket and bolts.

Fig 4: Install Power Steering Pump Mounting Bracket & Bolts
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the mounting bracket bolts to 46 N.m (34 lb ft).

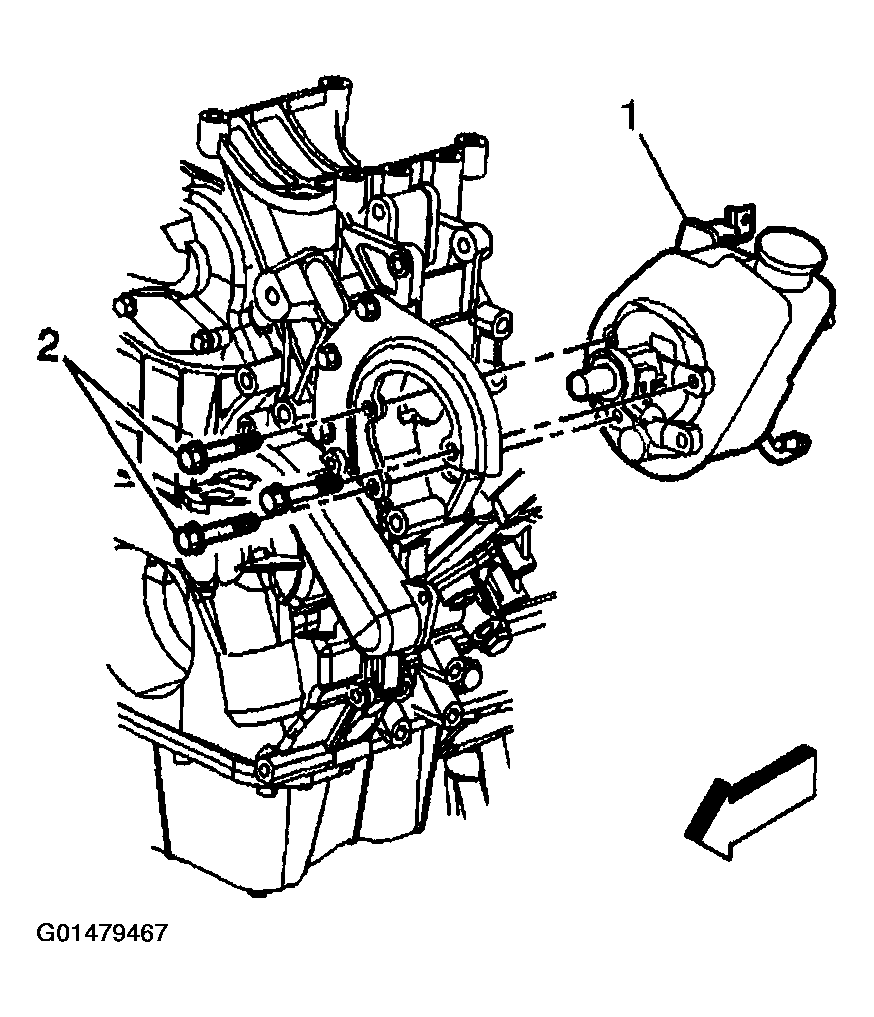

Install the bolts (2) to the front of the pump.
Tighten

Tighten the power steering pump retaining bolts to 50 N.m (37 lb ft).
Install the bolt retaining the battery junction block from the power steering bracket.
Tighten

Tighten the battery junction block retaining bolt to 9 N.m (80 lb in).
Install the power steering pulley. Refer to Power Steering Pulley Replacement .
Fill and bleed the power steering system. Refer to Bleeding the Power Steering System .

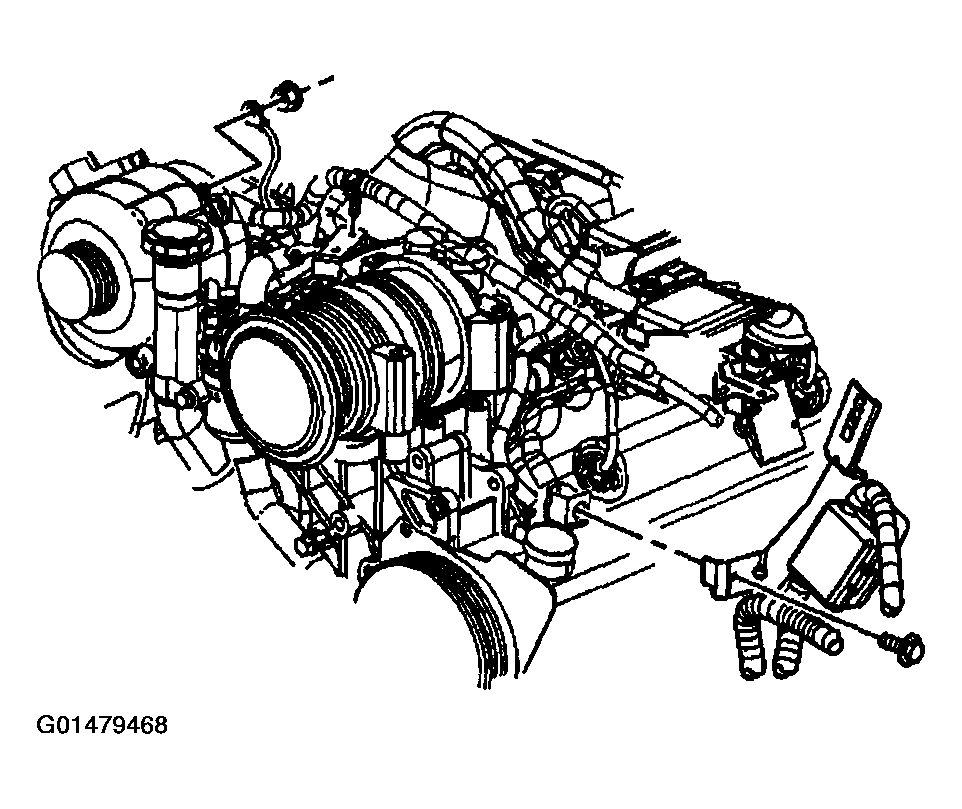

Fig 5: Install Battery Junction Block Retaining Bolt

Courtesy of GENERAL MOTORS CORP.
