Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Place a drain pan under the pump.
Remove the power steering pulley. Refer to Power Steering Pulley Replacement .

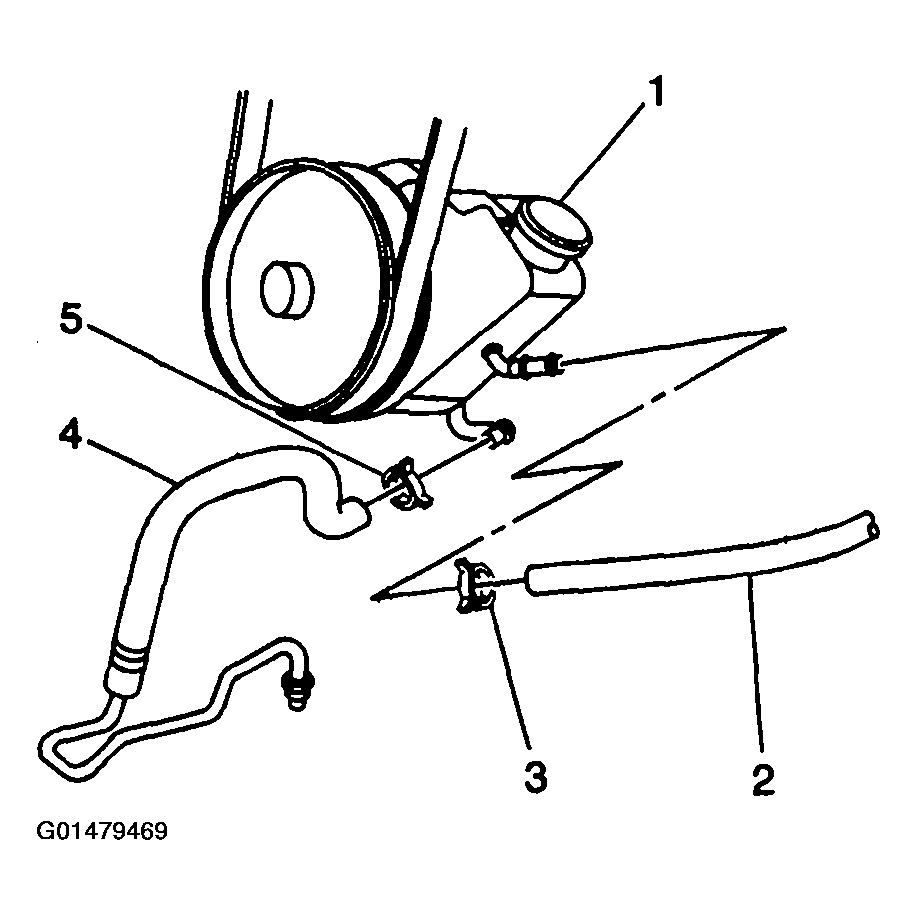

Remove the power steering return hoses (2,4) from the power steering pump.

Fig 1: Remove Power Steering Return Hoses

Courtesy of GENERAL MOTORS CORP.

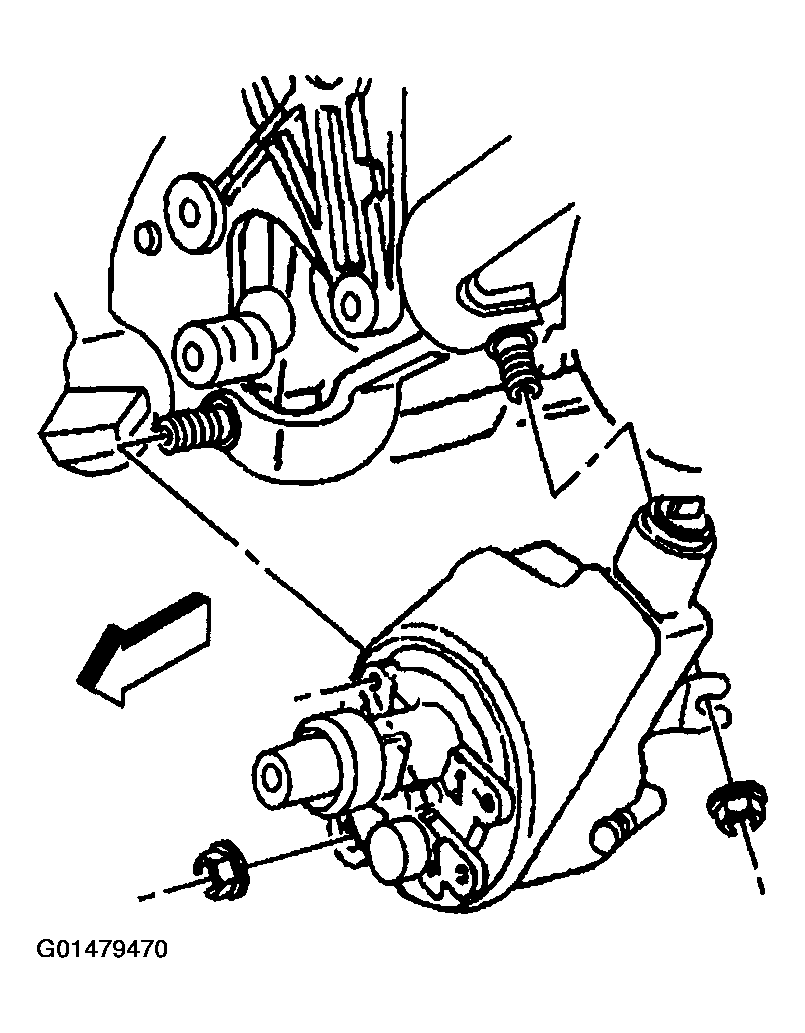

Remove the power steering rear mounting bracket nut from the engine stud.

Fig 2: Remove Power Steering Rear Mounting Bracket Nut From Engine Stud
Courtesy of GENERAL MOTORS CORP.

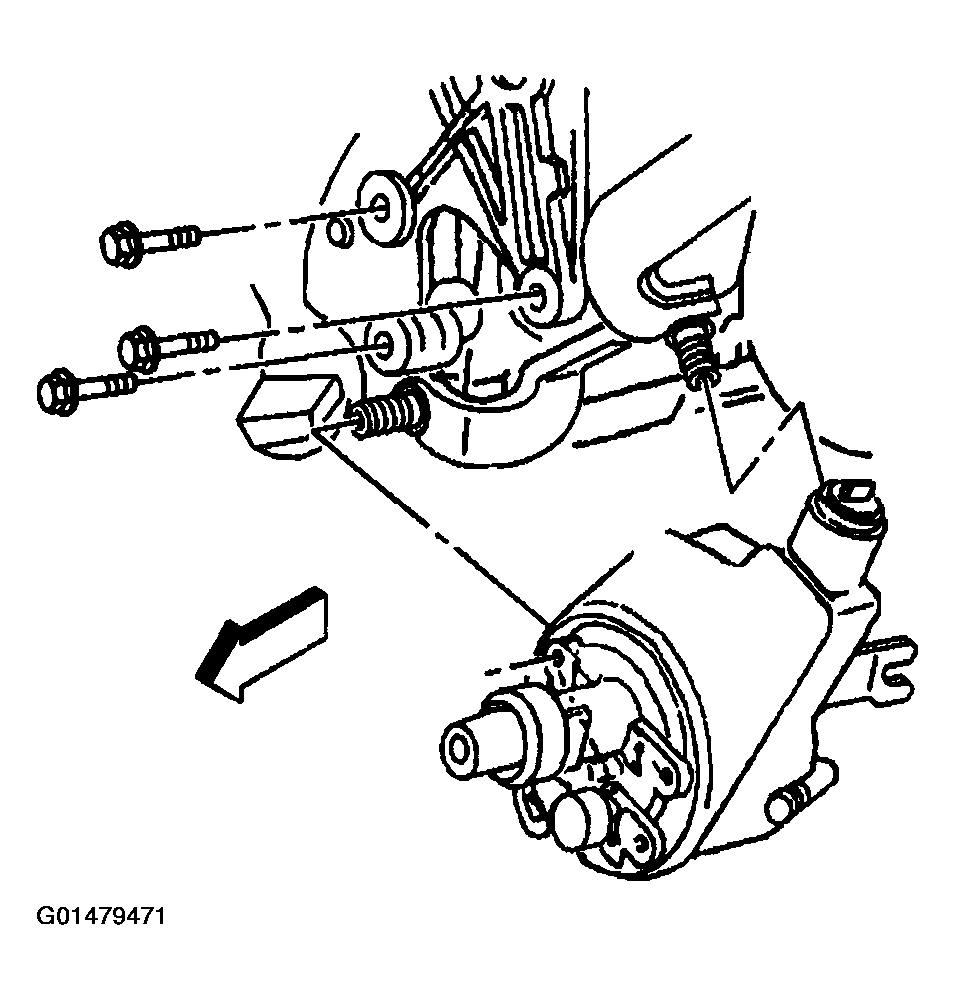

Remove the power steering pump mounting bolts.

Fig 3: Remove Power Steering Pump Mounting Bolts
Courtesy of GENERAL MOTORS CORP.

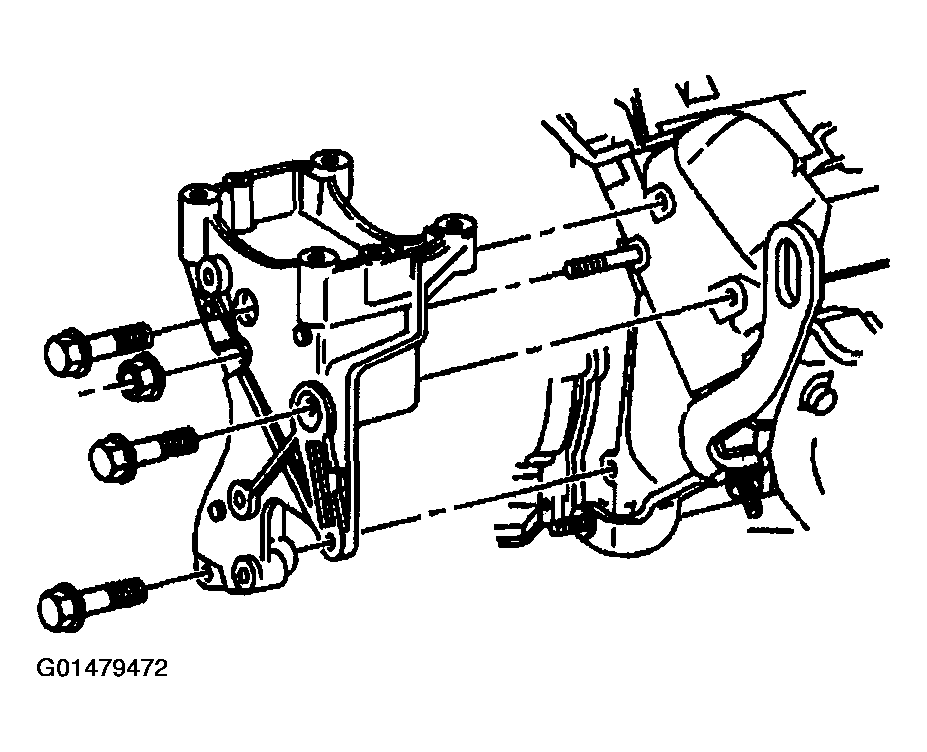

Remove the accessory mounting bracket mounting bolts and nut.

Fig 4: Remove Accessory Mounting Bracket Mounting Bolts & Nut
Courtesy of GENERAL MOTORS CORP.
Pull the accessory mounting bracket forward.
Remove the power steering pump from the vehicle.

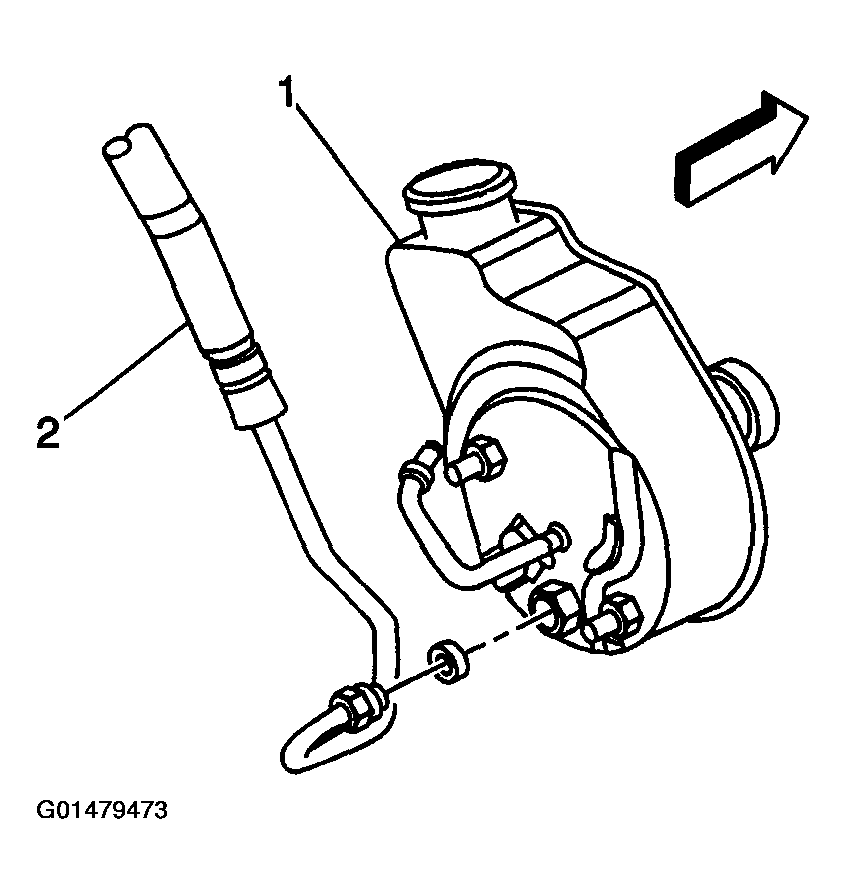

Remove the power steering pressure hose (2) from the power steering pump.

Fig 5: Remove Power Steering Pressure Hose
Courtesy of GENERAL MOTORS CORP.

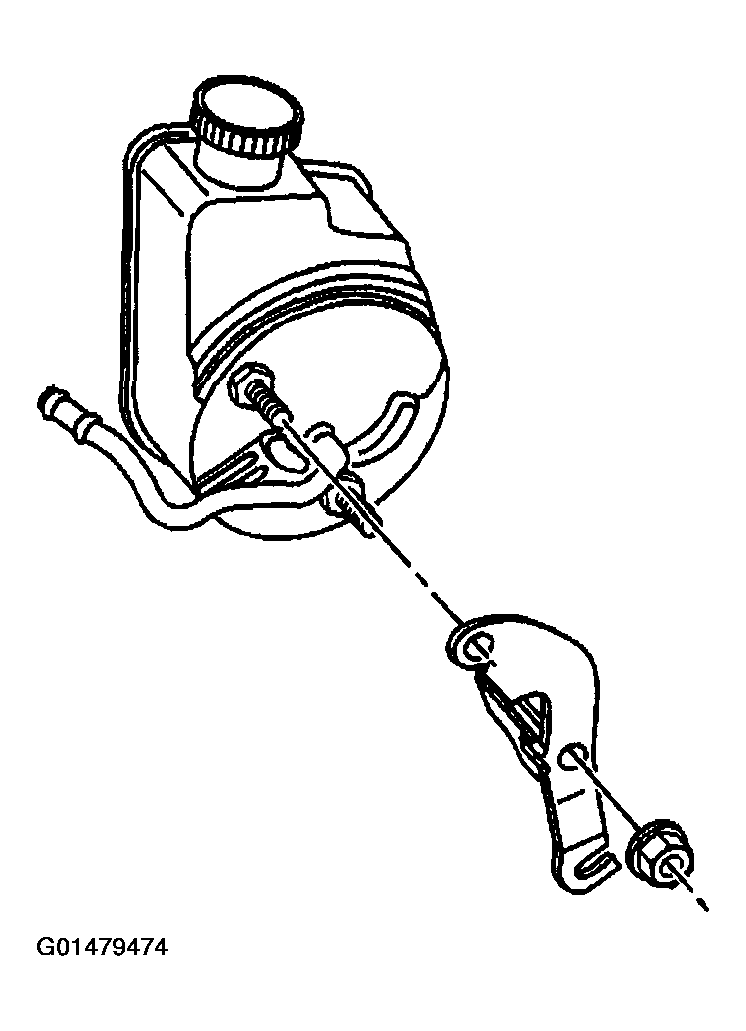

Remove the nuts retaining the power steering pump rear bracket from the power steering pump.

Fig 6: Removing Power Steering Pump Rear Bracket
Courtesy of GENERAL MOTORS CORP.
