Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rack and pinion assembly (3) into the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the rack and pinion assembly mounting bolts (4), the washers (2) and the nuts (1).

    Tighten

    Tighten the nuts to 185 N.m (136 lb ft).

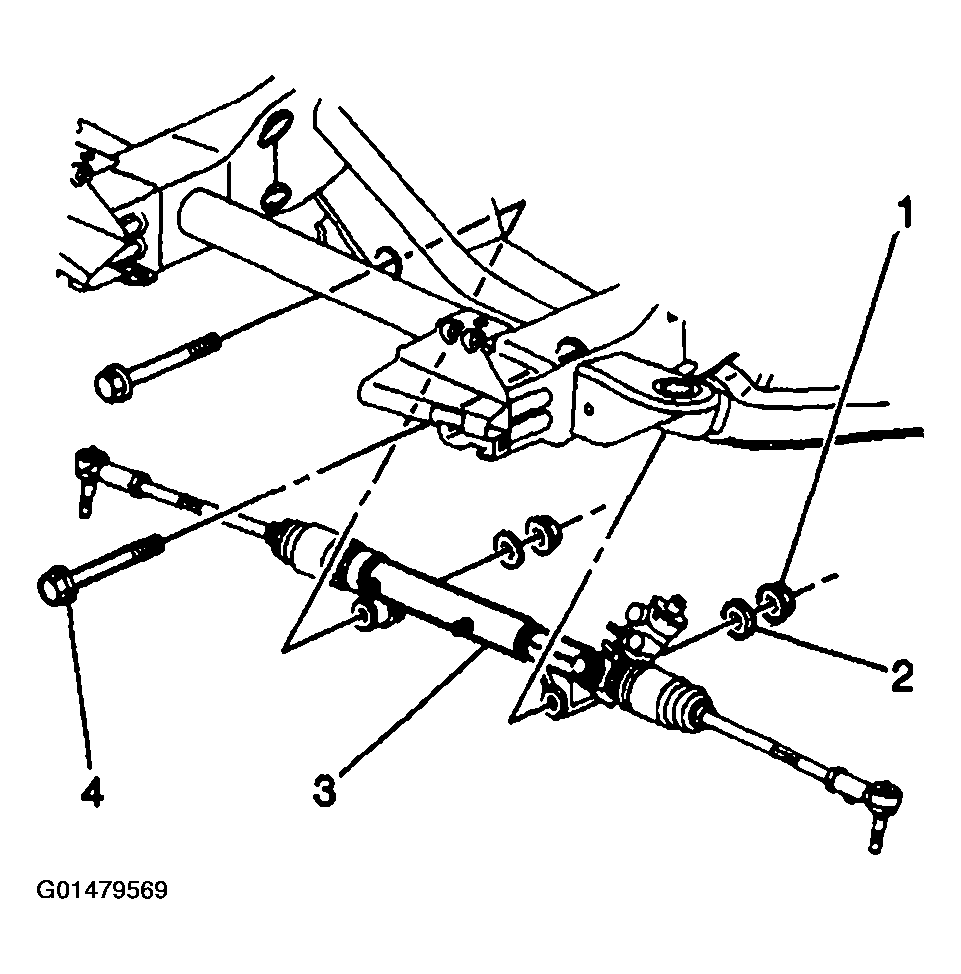

  3. Fig 1: Install Rack & Pinion Assembly Mounting Nuts, Washers & Bolts
    G01479569Courtesy of GENERAL MOTORS CORP.
  4. Install the intermediate shaft to the rack and pinion assembly.
  5. Install the coupler clamp bolt to the intermediate shaft.

    Tighten

    Tighten the bolt to 45 N.m (33 lb ft).

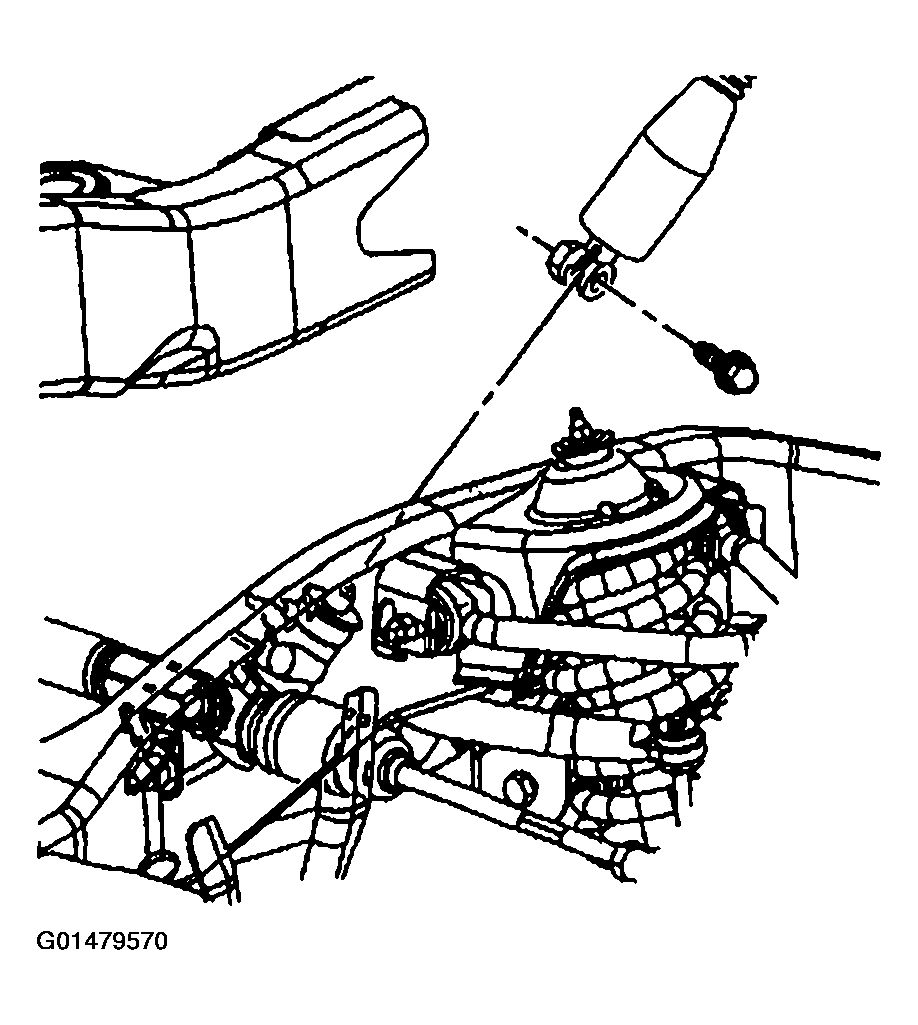

  6. Fig 2: Install Coupler Clamp Bolt & Intermediate Shaft
    G01479570Courtesy of GENERAL MOTORS CORP.
  7. Install the power steering low pressure hose (1) to the rack and pinion assembly (3).
  8. Install the power steering high pressure hose (2) to the rack and pinion assembly (3).

    Tighten

    Tighten the hoses to 28 N.m (20 lb ft).

  9. Install the engine protection shield, if equipped.
  10. Install the outer tie rod end to the steering knuckle. Refer to Tie Rod End Replacement - Outer .
  11. Install the stabilizer shaft. Refer to STABILIZER SHAFT REPLACEMENT  .

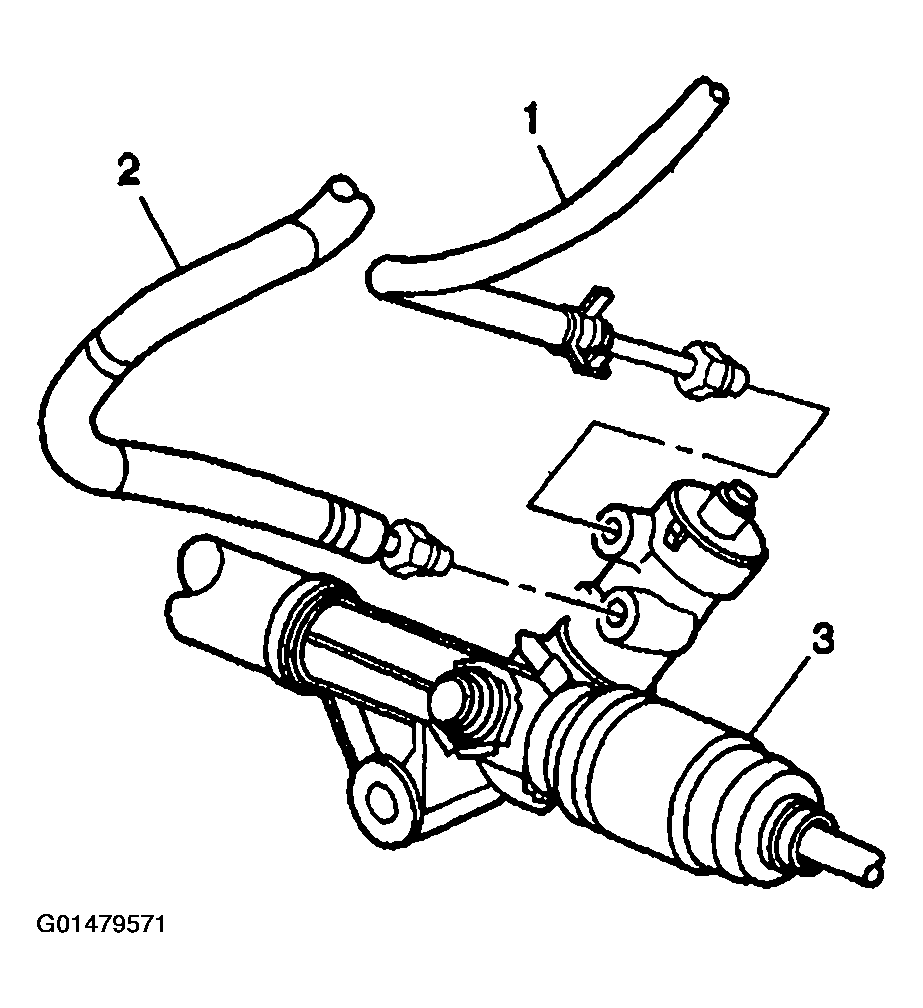

  12. Fig 3: Install Power Steering High & Low Pressure Lines From Rack & Pinion
    G01479571Courtesy of GENERAL MOTORS CORP.
  13. If the steering gear is equipped with a ground strap, install the ground strap to the crossmember bracket.
    • Place the ground strap on the left side of the bracket and mark the location.
    • Center punch the bolt hole location.
    • Drill a hole using a 7 mm (9/32 in) drill bit.
    • Install the bolt and washer retaining the ground strap to the crossmember.

      Tighten

      Tighten the bolt to 10 N.m (89 lb in).

  14. Install both of the front tire and wheel assemblies. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION  .

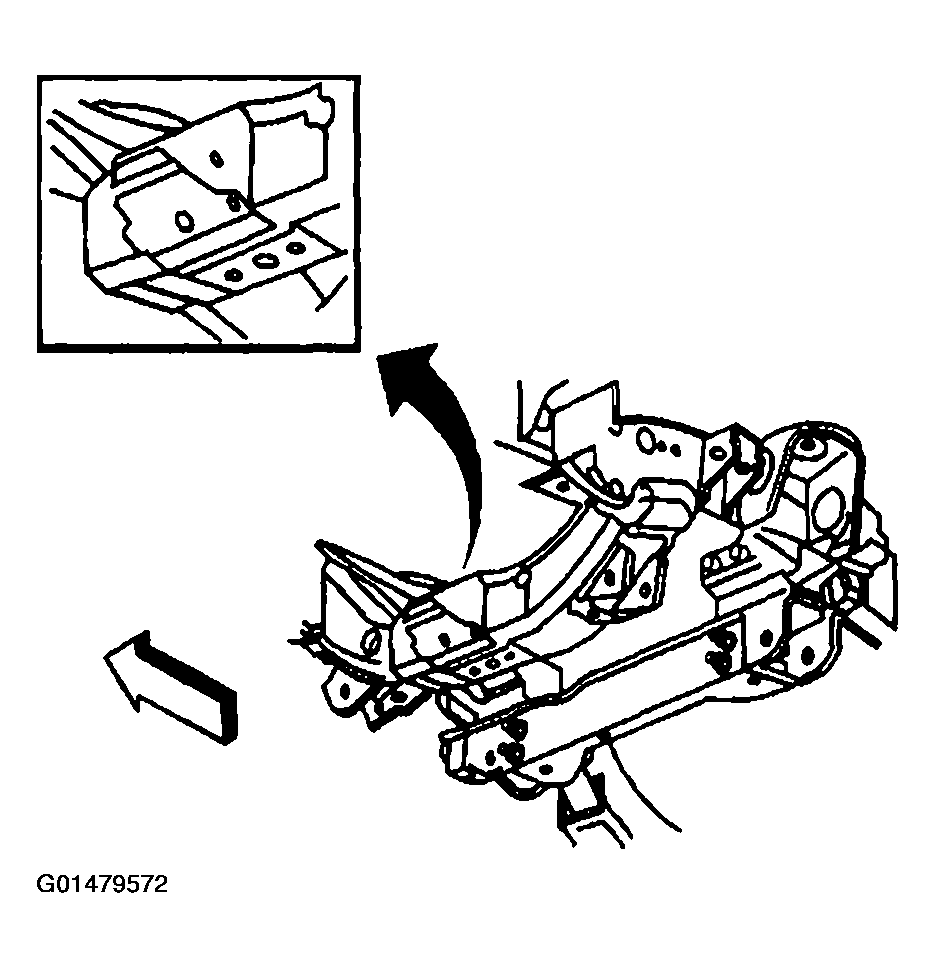

  15. Fig 4: Install Ground Strap To Crossmember Bracket
    G01479572Courtesy of GENERAL MOTORS CORP.
  16. Remove the safety stands.
  17. Lower the vehicle.
  18. Bleed the power steering system. Refer to Bleeding the Power Steering System .
