Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to POWER STEERING HOSE DISCONNECTED NOTICE .
  1. Install a drain pan under the vehicle.
  2. Remove the power steering gear outlet hose (3) from the steering gear (2).
  3. Remove the clamp retaining the power steering gear outlet hose (3) to the power steering pump (1).

    Remove the power steering gear outlet hose from the power steering pump.

  4. Remove the power steering gear outlet hose from the vehicle.

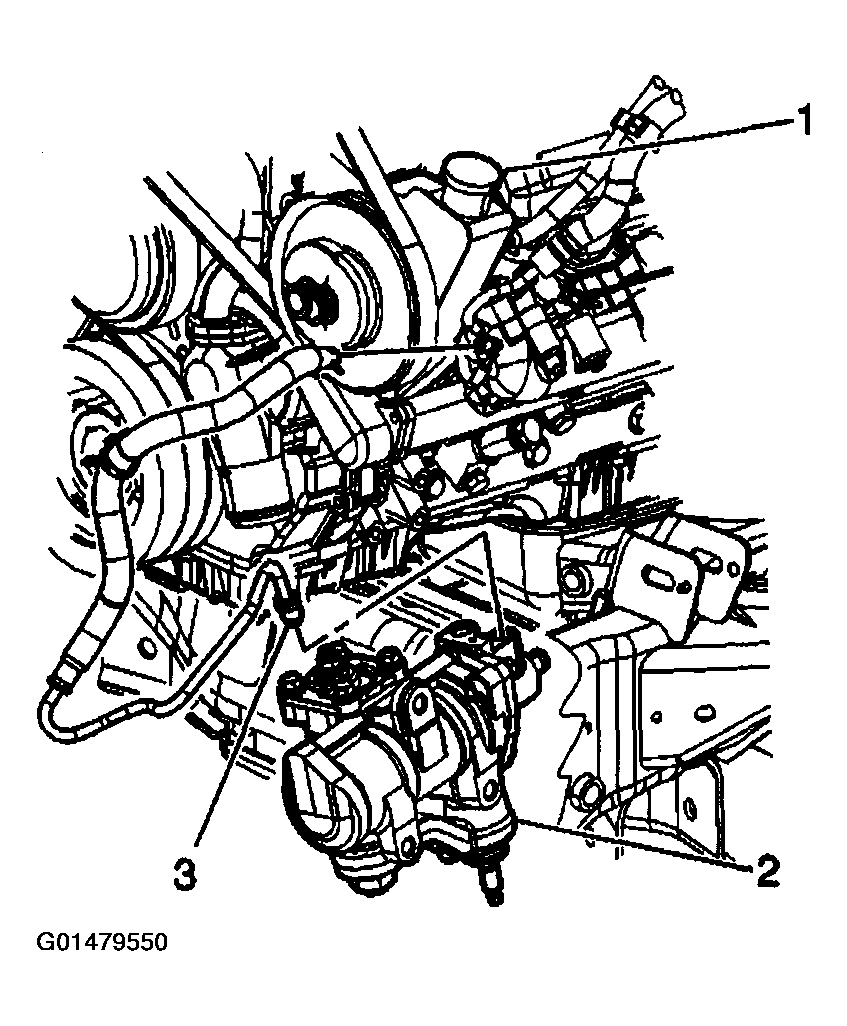

Fig 1: Remove Power Steering Gear Outlet Hoses
G01479550Courtesy of GENERAL MOTORS CORP.
