Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to INSTALLING HOSES WITHOUT TWISTS OR BENDS NOTICE .
  1. Route the hose in the same position the hose occupied prior to removal.
  2. Install the power steering gear outlet hose (3) to the power steering pump (1).

    Position the clamp at the end of the hose.

    NOTE: Refer to FASTENER NOTICE .
  3. Install the power steering gear outlet hose to the power steering gear.

    Tighten

    Tighten the outlet hose fitting to 28 N.m (20 lb ft).

  4. Remove the drain pan from under the vehicle.
  5. Bleed the power steering system. Refer to Bleeding the Power Steering System .

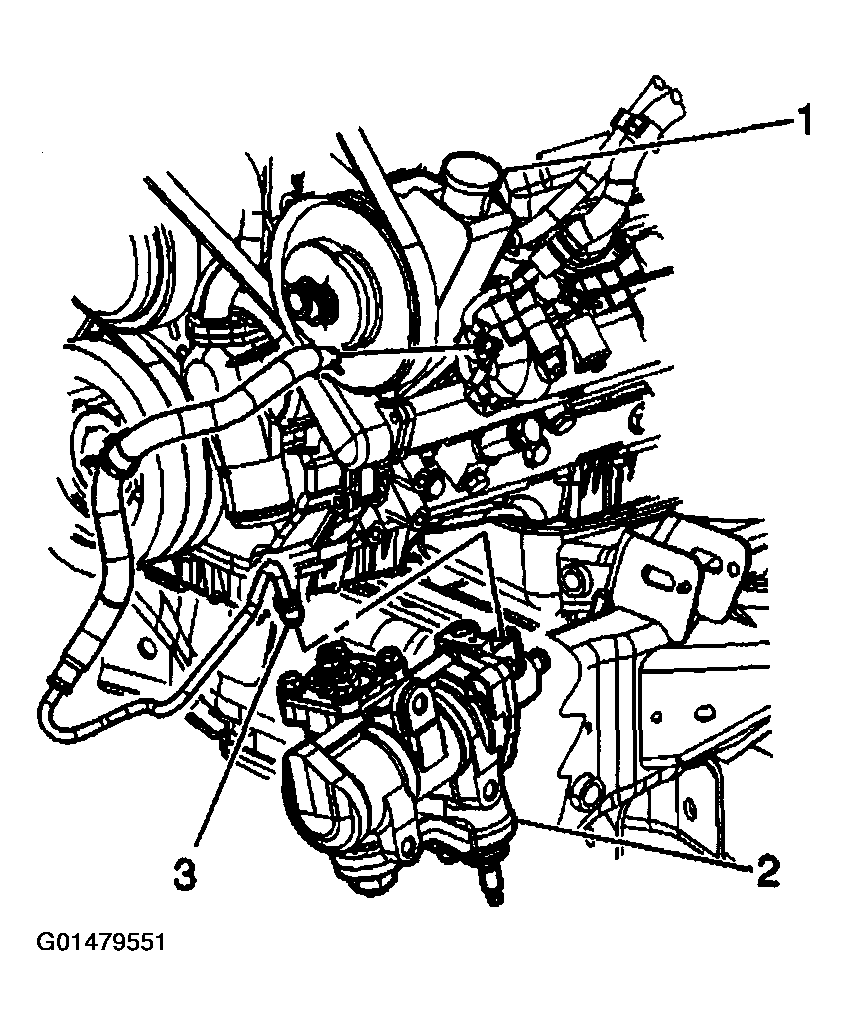

Fig 1: Install Power Steering Gear Outlet Hoses
G01479551Courtesy of GENERAL MOTORS CORP.
