Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to POWER STEERING HOSE DISCONNECTED NOTICE .
  1. Install a drain pan under the vehicle.
  2. Remove the power steering gear inlet hose (1) from the brake booster.
  3. Remove the power steering gear inlet hose from the power steering gear.
  4. Remove the power steering gear inlet hose from the vehicle.

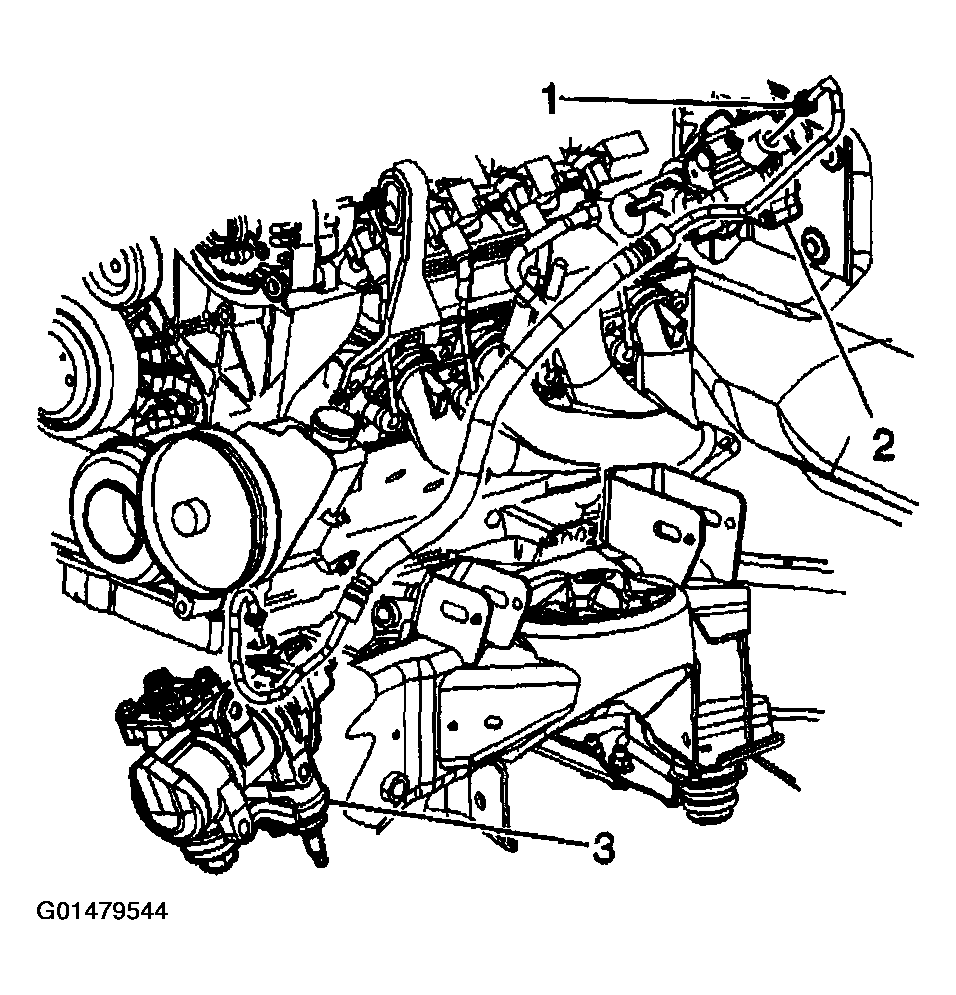

Fig 1: Remove Power Steering Gear Inlet Hose
G01479544Courtesy of GENERAL MOTORS CORP.
