Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to INSTALLING HOSES WITHOUT TWISTS OR BENDS NOTICE .
  1. Route the hose in the same position the hose occupied prior to removal.
  2. Install the power steering gear inlet hose (1) to the brake booster (2).
    NOTE: Refer to FASTENER NOTICE .
  3. Install the power steering gear inlet hose to the power steering gear.

    Tighten

    Tighten the power steering gear inlet hose fittings to 28 N.m (20 lb ft).

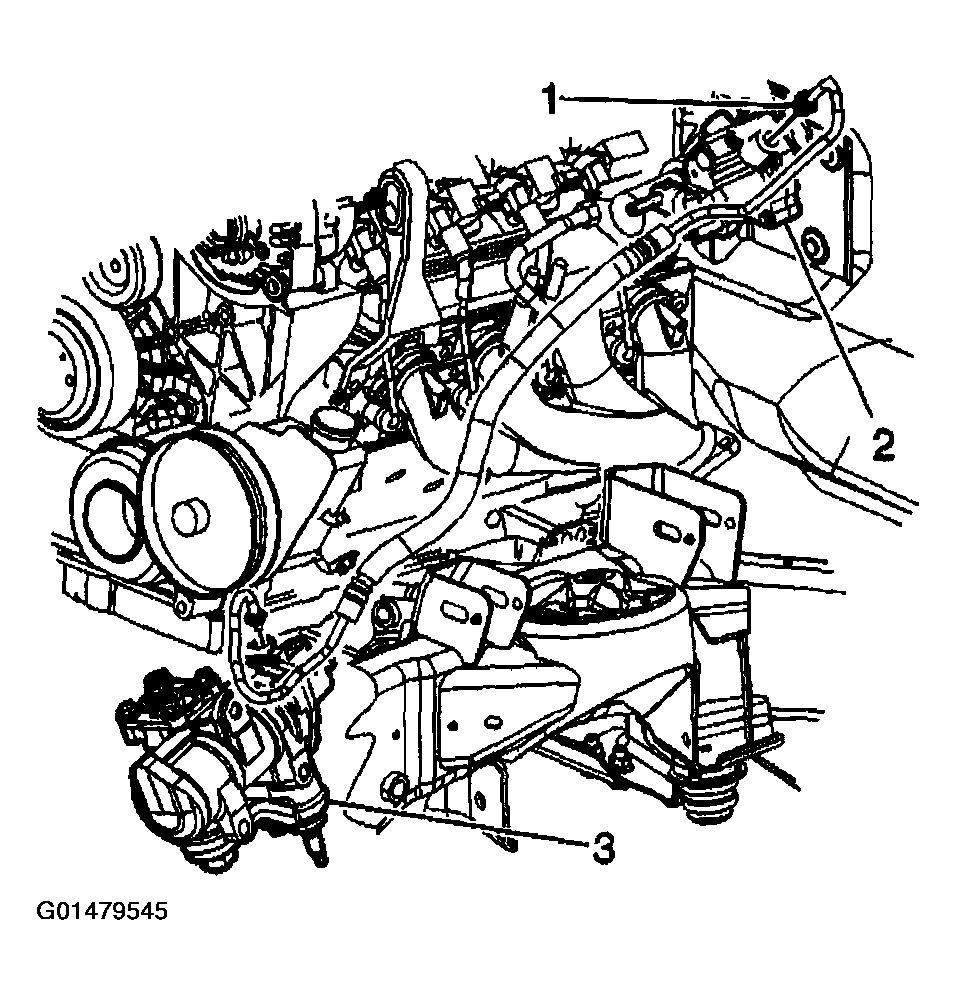

    4. Fig 1: Install Power Steering Gear Inlet Hose
    G01479545Courtesy of GENERAL MOTORS CORP.
  4. Remove the drain pan from under the vehicle.
  5. Bleed the power steering system. Refer to Bleeding the Power Steering System .
