Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the power steering inlet hose (2) to the power steering gear (3).
    NOTE: Refer to FASTENER NOTICE .
  2. Connect the power steering inlet hose (2) to the power steering pump (1).

    Tighten

    Tighten the hose connections to 28 N.m (20 lb ft.)

  3. Bleed the power steering system. Refer to Bleeding the Power Steering System .
  4. Inspect all the hose connections for leaks.

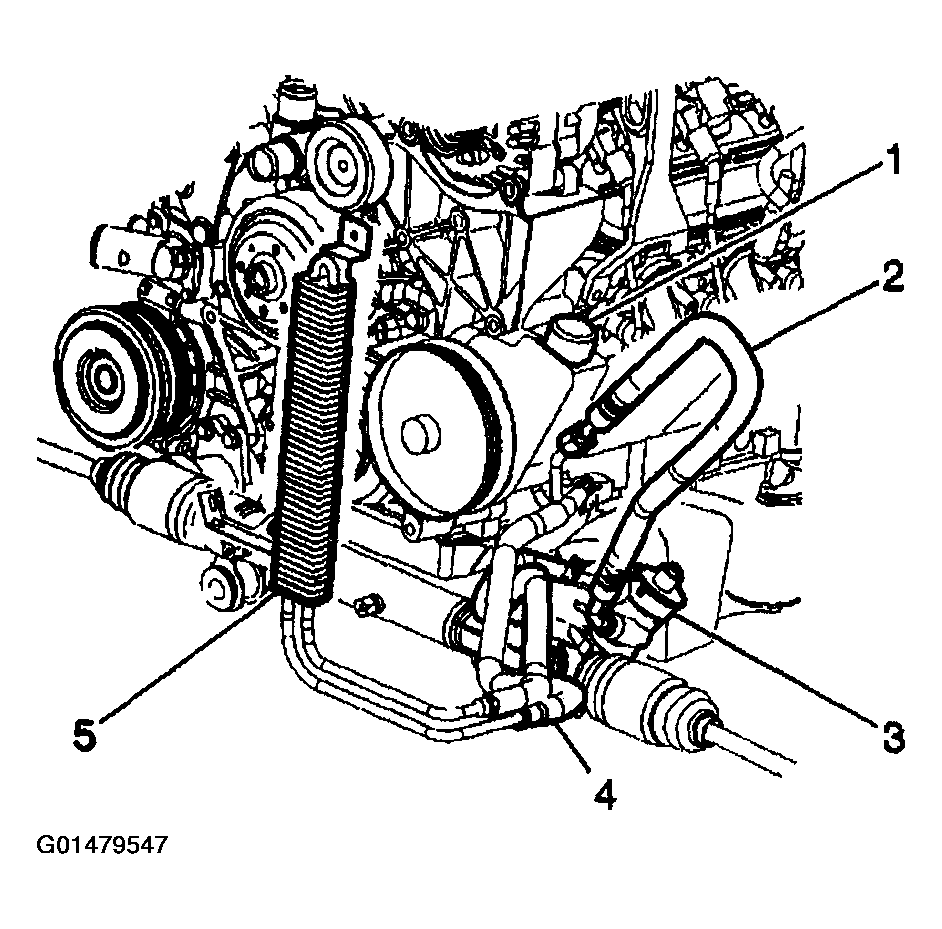

    Fig 1: Install Power Steering Inlet Hoses
    G01479547Courtesy of GENERAL MOTORS CORP.
