Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front grille. Refer to GRILLE REPLACEMENT (OLD STYLE)  or GRILLE REPLACEMENT (NEW STYLE GMC)  or GRILLE REPLACEMENT (NEW STYLE CHEVROLET)  .
    NOTE: Refer to POWER STEERING HOSE DISCONNECTED NOTICE .
  2. Remove the clamp retaining the power steering outlet hose (3) from the power steering gear (4).
  3. Remove the clamp retaining the power steering inlet hose from the power steering pump (5).

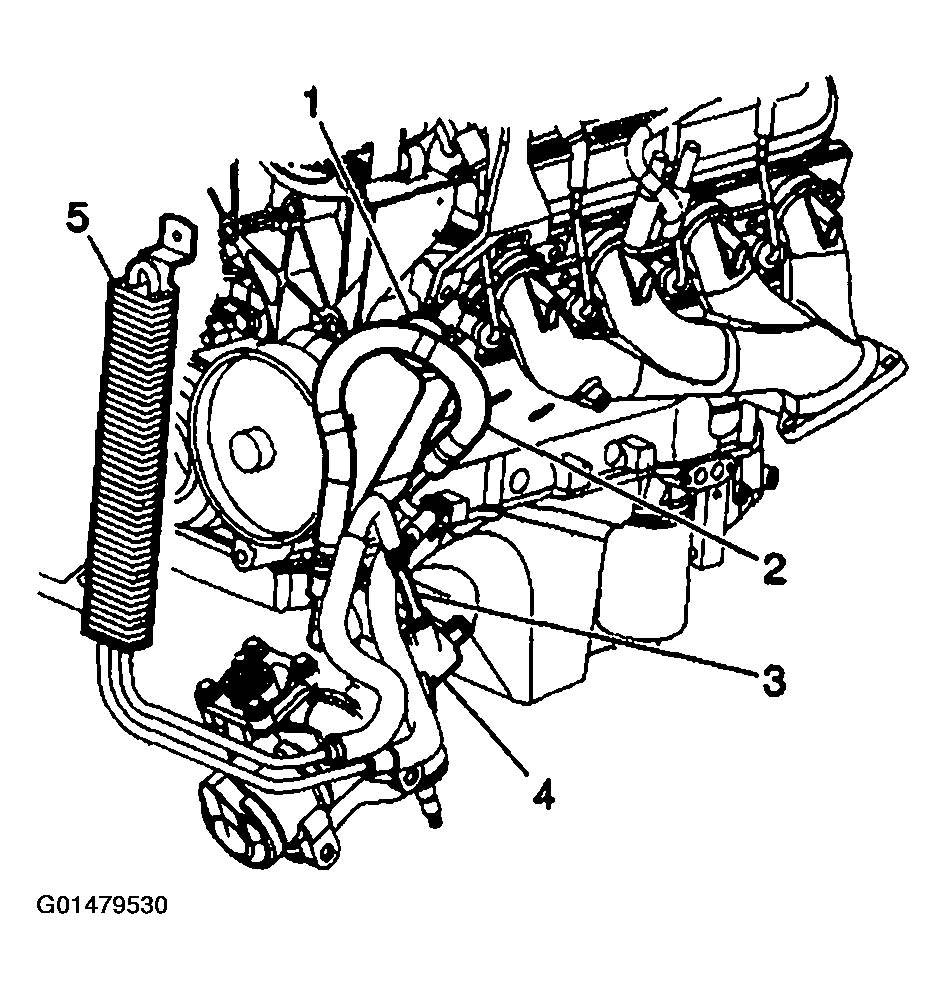

    4. Fig 1: Remove Power Steering Outlet Hose From Gear & Power Steering Pump
    G01479530Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolts (2) retaining the power steering cooler from the radiator support.
  5. Remove the power steering cooler from the vehicle.

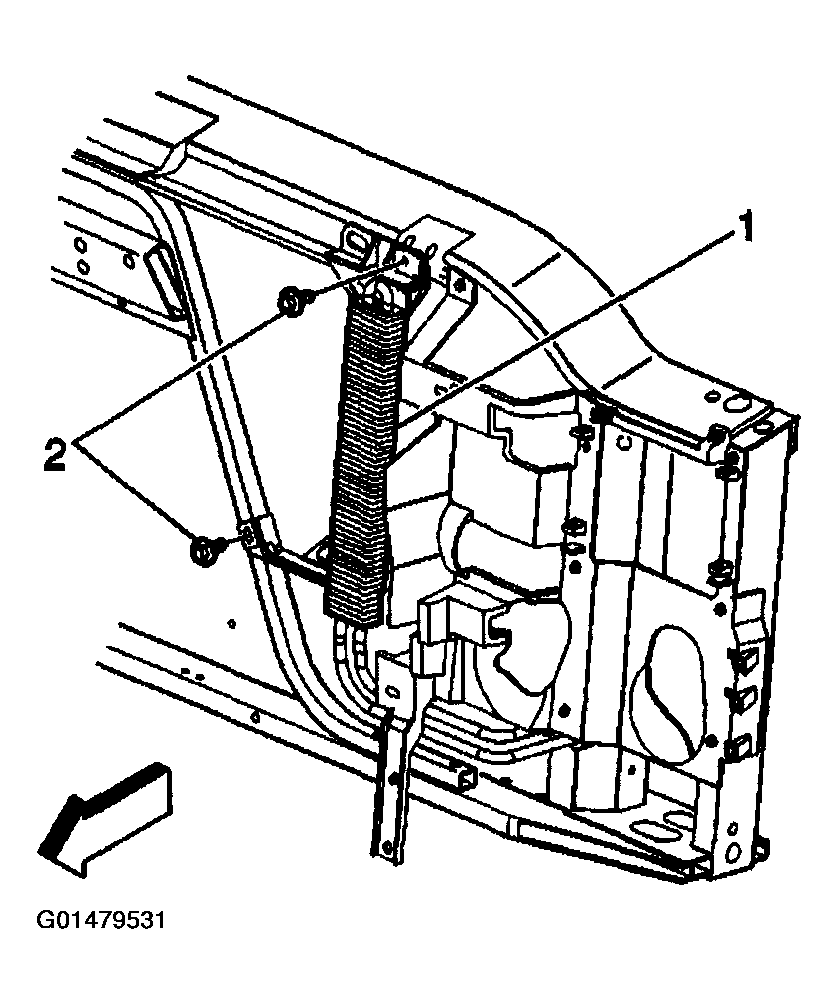

Fig 2: Remove Power Steering Cooler Radiator Support Bolts
G01479531Courtesy of GENERAL MOTORS CORP.
