Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. Install the power steering cooler (1) to the vehicle.

    Tighten

    Tighten the power steering cooler retaining bolts to 5 N.m (44 lb in).

    2. Fig 1: Install Power Steering Cooler Radiator Support Bolts
    G01479532Courtesy of GENERAL MOTORS CORP.
  2. Connect the power steering outlet hose (3) to the power steering gear (4).

    Install the retaining clamp.

  3. Connect the power steering inlet hose to the power steering pump.

    Install the retaining clamp.

  4. Bleed the power steering system. Refer to Bleeding the Power Steering System .
  5. Inspect all the hose connections for leaks.
  6. Install the front grille. Refer to GRILLE REPLACEMENT (OLD STYLE)  or GRILLE REPLACEMENT (NEW STYLE GMC)  or GRILLE REPLACEMENT (NEW STYLE CHEVROLET)  .

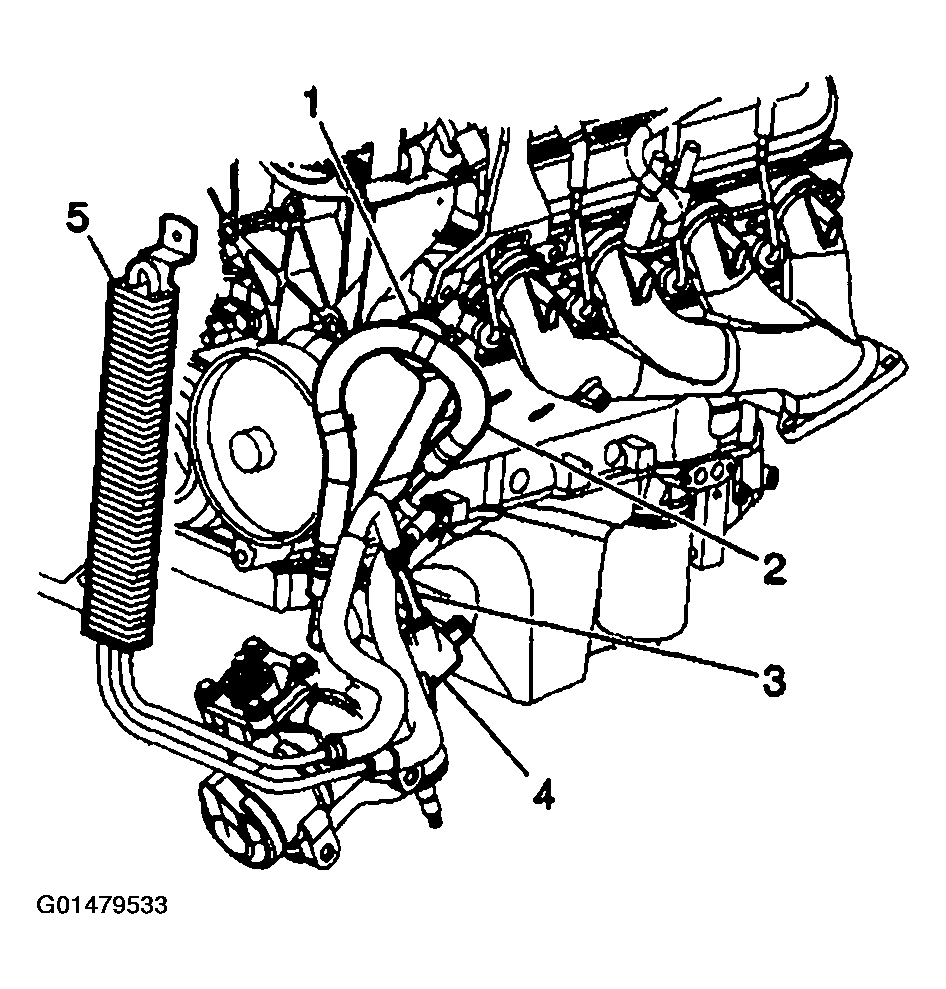

Fig 2: Connect Power Steering Outlet Hose To Power Steering Gear
G01479533Courtesy of GENERAL MOTORS CORP.
