Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to POWER STEERING HOSE DISCONNECTED NOTICE .
  1. Install a drain pan under the vehicle.
  2. Remove the brake booster outlet hose (1) from the brake booster (2).
  3. Remove the clamp retaining the brake booster outlet hose to the power steering pump.
  4. Remove the brake booster outlet hose from the vehicle.

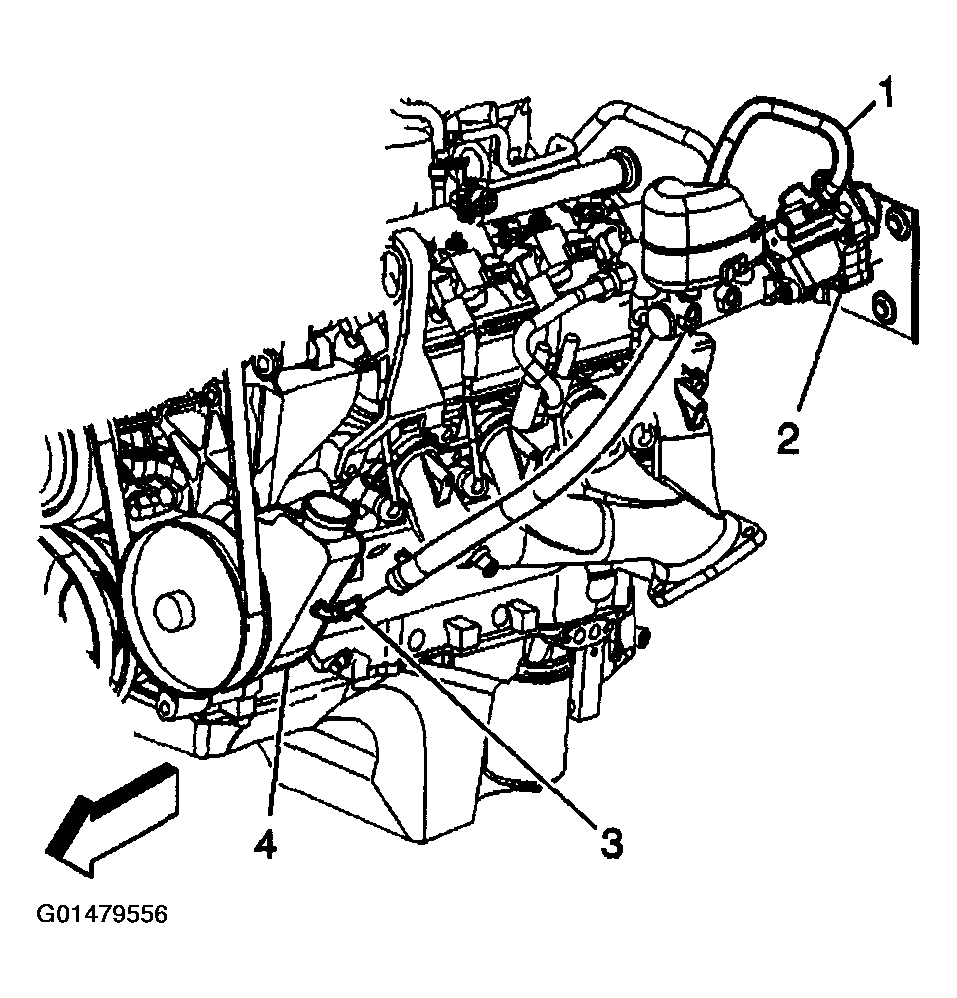

Fig 1: Remove Brake Booster Outlet Hose From Brake Booster
G01479556Courtesy of GENERAL MOTORS CORP.
