Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to INSTALLING HOSES WITHOUT TWISTS OR BENDS NOTICE .
  1. Route the hose in the same position the hose occupied prior to removal.
  2. Install the brake booster inlet hose (1) to the brake booster (2).
    NOTE: Refer to FASTENER NOTICE .
  3. Install the brake booster inlet hose to the power steering pump.

    Tighten

    Tighten the brake booster inlet hose fittings to 28 N.m (20 lb ft).

  4. Remove the drain pan from under the vehicle.
  5. Bleed the power steering system. Refer to Bleeding the Power Steering System .

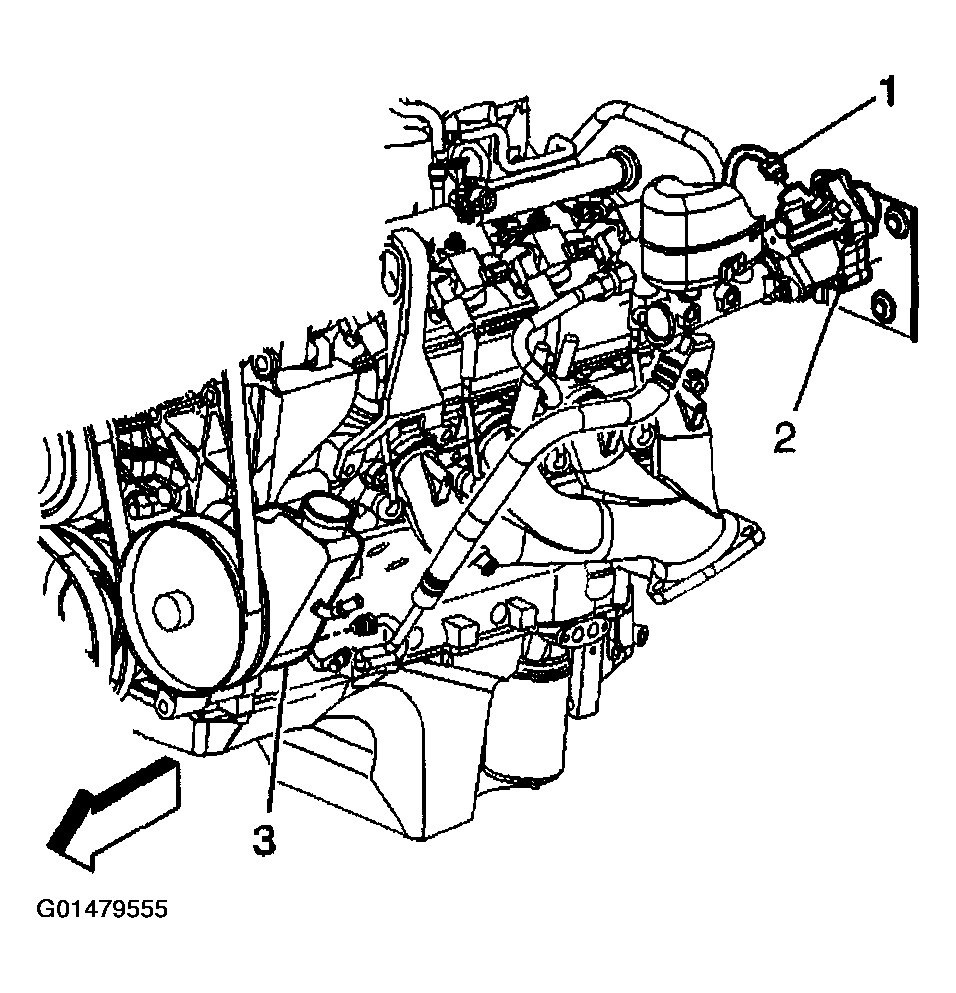

Fig 1: Install Brake Booster Inlet Hose To Brake Booster
G01479555Courtesy of GENERAL MOTORS CORP.
